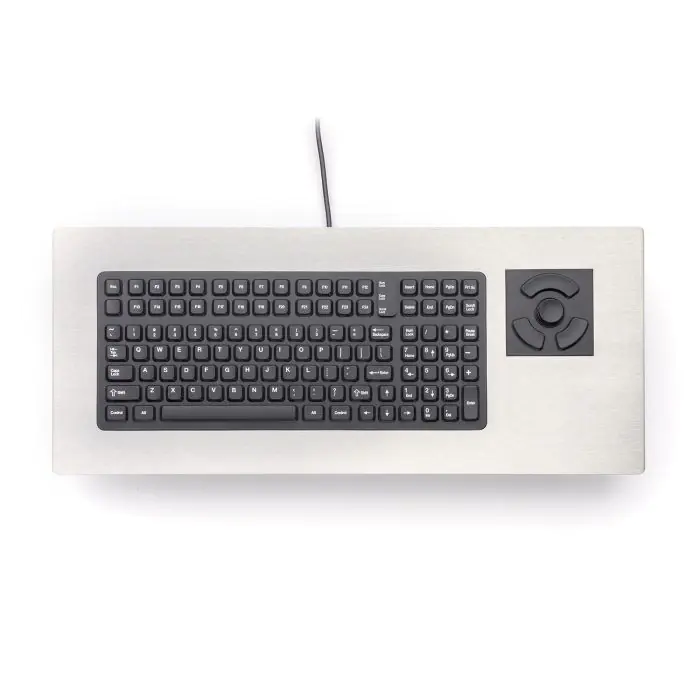

iKey PM-2000 Panel Mount Rugged Keyboard

The PM-2000 is constructed using a highly rugged stainless steel case and industrial silicone rubber pad, ensuring NEMA 4X protection in extremely rugged applications. An integrated HulaPointTM pointing device offers additional usability. The PM-2000 provides users with a full 114-key industrial keyboard and HulaPointTM industrial pointing device. It has two rows of function keys that allow for single keystroke access to software shortcuts.

PM-2000 Features

  • Rugged Stainless Steel Case
  • Integrated Pointing Device
  • 24 Function Keys + 10-Key Numeric Pad
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

21.80" x 9.20" x 0.28" (w-h-d) 553.7mm x 233.7mm x 7.1mm SCREWS: 1.58" (40.1mm)

Extended Warranty

Available On Request

Housing Colour

Stainless Steel

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 or AT/serial Cable (providing separate keyboard and mouse connections), or Single-Cable USB

Compatibility

PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.03 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

114

Pointing Device

HulaPoint

Power

PS/2 or AT/serial: KEYBOARD: 50mA@5V (from Keyboard port), POINTER: 35mA@5V (from Mouse port); USB: 85mA@5V (from CPU port)

Product Weight

5.50 lbs +/- 0.10 lbs (2.49 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

The iKey PM-2000 Panel Mount Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PM-2000 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey PM-2000 Panel Mount Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey PM-2000 Panel Mount Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey PM-2000 Panel Mount Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey PM-2000 Panel Mount Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
