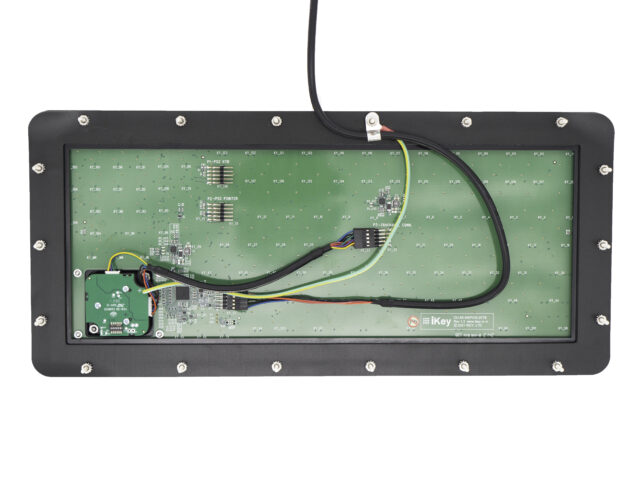

iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball

The iKey PMU-5K-TB is a rugged panel mount keyboard engineered for easy integration into industrial and harsh environments. Equipped with a 25-mm trackball featuring left, middle, and right-click buttons, it ensures precise navigation in challenging conditions. Its space-efficient design includes a 10-key numeric keypad for enhanced functionality, and 24 function keys provide additional flexibility for complex tasks. Windows keys are also included for streamlined access to system controls. Built to withstand demanding applications, this durable keyboard is ideal for sectors such as aerospace, manufacturing, military, and oil and gas.

PMU-5K-TB Features

  • Integrated Trackball
  • MS Windows Function Keys
  • 24 Function Keys + 10-Key Numeric Pad
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X UL60950

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

15.39" x 7.06" x 0.50" (w-h-d) 390.9mm x 179.3mm x 12.7mm SCREWS: 0.75" (19.1mm) CUTPIT: 13.52" x 5.18" (w-h) 343.4mm x 131.6mm

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 (providing separate keyboard and mouse connections)

Compatibility

PS/2 KEYBOARD/TRACKBALL: All Windows Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 6.35 oz. +/- 1.06 oz. (180g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

116

Pointing Device

Trackball

Power

PS2: KEYBOARD: 50mA@5V (from Keyboard port) POINTER: 20mA@5V (from Mouse port) USB: 70mA@5V (from CPU port)

Product Weight

2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

(180g +/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +85C (-40F to +185F) OPERATING: 0C to +65C (+32F to 149F)

The iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PMU-5K-TB is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball, must be presented to RUGGED in the United Kingdom.

For more information about the iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey PMU-5K-TB Panel Mount Rugged Keyboard With Trackball or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey PMU-5K-TB or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
