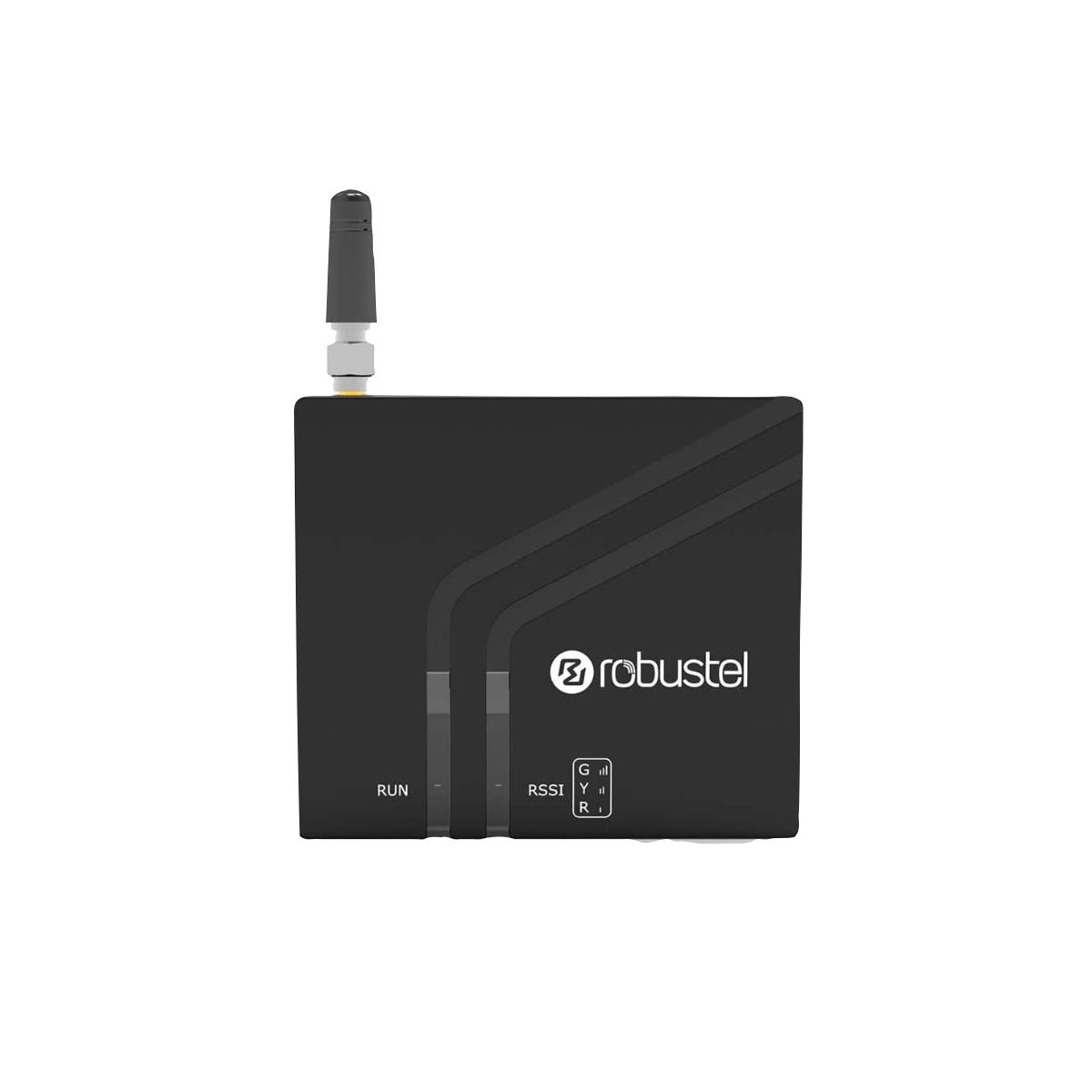

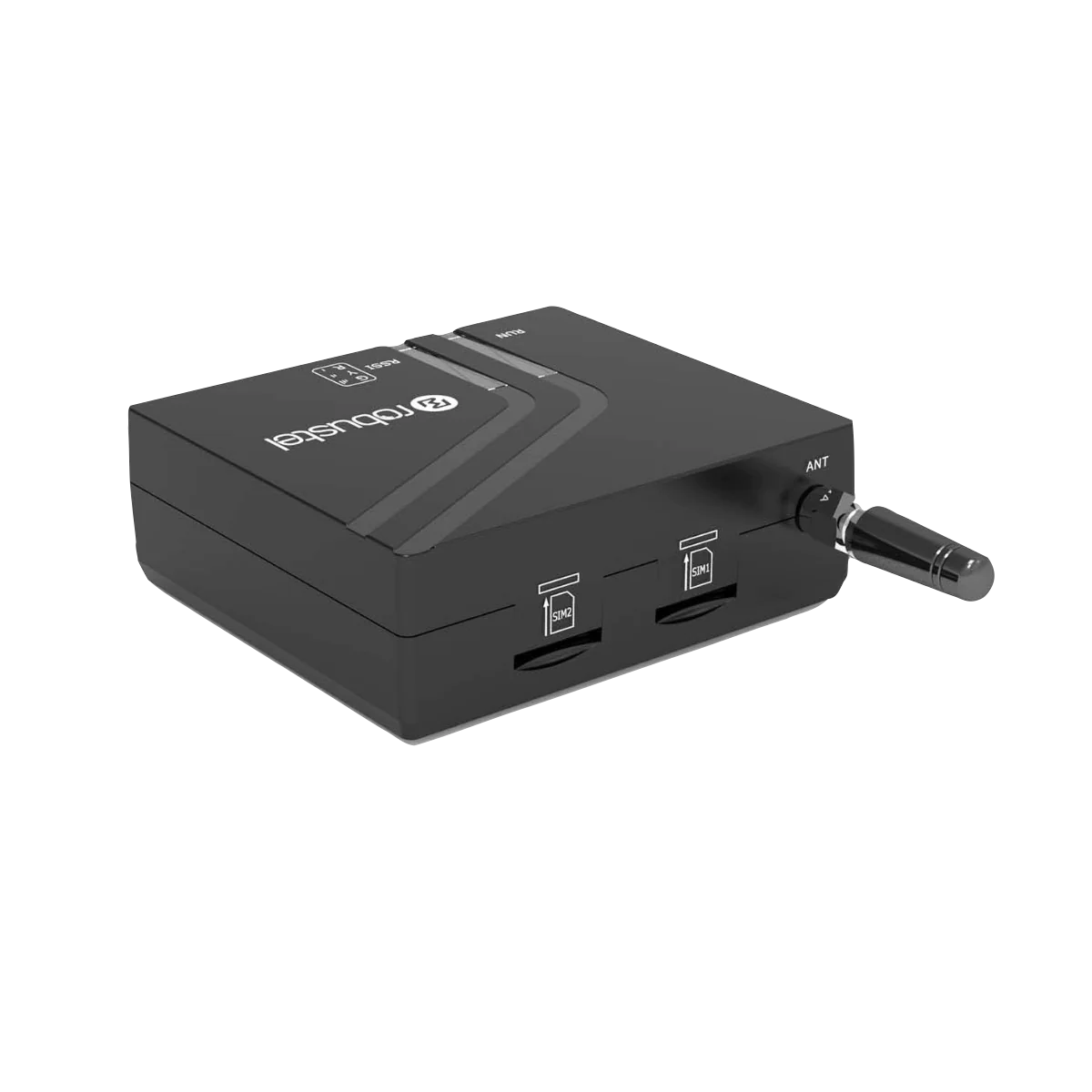

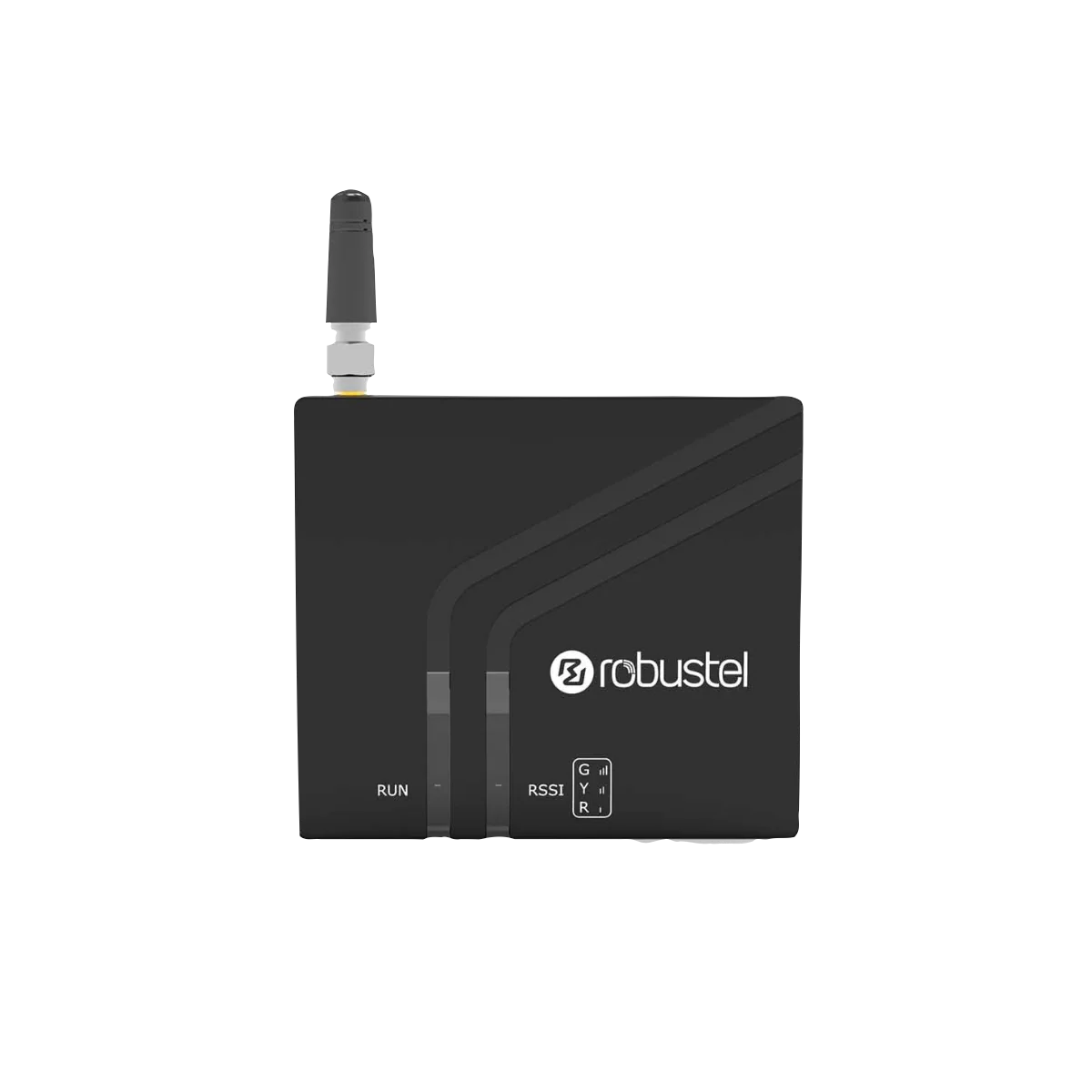

Robustel M1200 Industrial Gateway
The Robustel M1200 Industrial LTE Gateway is a rugged industrial IoT modem, designed for connecting devices to Cat-M1 or NB-IoT networks globally. It is based on GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/Cat.NB1 networks.
The M1200 enables remote data transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB.
This dual-SIM gateway provides users with stable network connectivity and data transmission.
M1200 Features
- Auto GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/Cat.NB1 connections (No AT command required)
- Dual-SIM backup (push-push or MFF type optional)
- IPsec/OpenVPN/GRE/L2TP/PPTP
- Transparent TCP and UDP protocol connections
- ICMP, DDNS, SNTP and Telnet
- Modbus RTU to TCP
- Auto rebooting via SMS and Timer
- Configuration and firmware upgrading via USB and RCMS
- Sending SMS if DI is triggered
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
1
Approvals / Certifications
RoHS2.0, WEEE
Available Apps
RobustLink
Built-in
RTC, Watchdog, Timer
Case Material
Rugged Plastic
Cellular Connectivity
GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/Cat.NB1
Cellular Connectors
SMA-K
Cellular Region
EMEA,Oceania,South America
Console Connectors
10-pin 3.5 mm RP female socket with lock
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX VDC
V+ +5V DC (DI), 30V DC (DO)
DI/DO Connector
10-pin 3.5 mm RP female socket with lock
DI/DO Isolation
contact: ±6 K, air: ±8 K
DI/DO Type
2 x DI (wet contact) + 1 x DO (wet contact)
EMI
EN 55032: 2015 (CE) Class B EN 55032: 2015 (RE) Class B EN 55032: 2015 (RE) Class B
EMS
IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2
Frequency Bands
Global - Cat M1 4G: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B26/B28 LTE TDD: B39 (For Cat M1 Only) 2G: EGPRS: 850/900/1800/1900 MHz South America, Oceania - Cat 4 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 EMEA - Cat 4 4G: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8
Housing Colour
Black
Management/Troubleshooting Tools
Web, CLI, SMS
Power Consumption
Idle: 50 to 70 mA@12 V Data link: 300 mA (peak) @12 V
Power Input
9 to 36V DC
Power Supply Connector
10-pin 3.5 mm RP female socket with lock
SDK Flash
3 MB
SDK Language
C, C++
SDK RAM
16 MB
Serial Baud Rate
300 bps to 115200 bps
Serial Port Software
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Serial Ports
1 x RS-232 + 1 x RS-485
Signal Definition
RS232: TxD, RxD, GND RS485: A (Data+), B (Data-)
SIM Slots
2 Mini SIM (2 FF)
Network Protocols
PPP, TCP, UDP, ICMP, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, SSH2, DDNS, etc.
Status LED
1 x RUN + 1 x RSSI (red/green bi-color light)
Usb Connectors
1 x Mini USB for configuration and power supply, Mini Female, 2.0 high speed up to 480 Mbit/s
VPN Tunnel
IPsec, OpenVPN, GRE
The Robustel M1200 Industrial Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the M1200 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Pharmaceutical
These examples highlight the versatility of the Robustel M1200 Industrial Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial IoT Gateway fits your specific needs, please contact us.
The Robustel M1200 Industrial Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel M1200 Industrial Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel M1200 Industrial Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel M1200 Industrial Gateway or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel M1200 or need a custom Industrial IoT Gateway solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

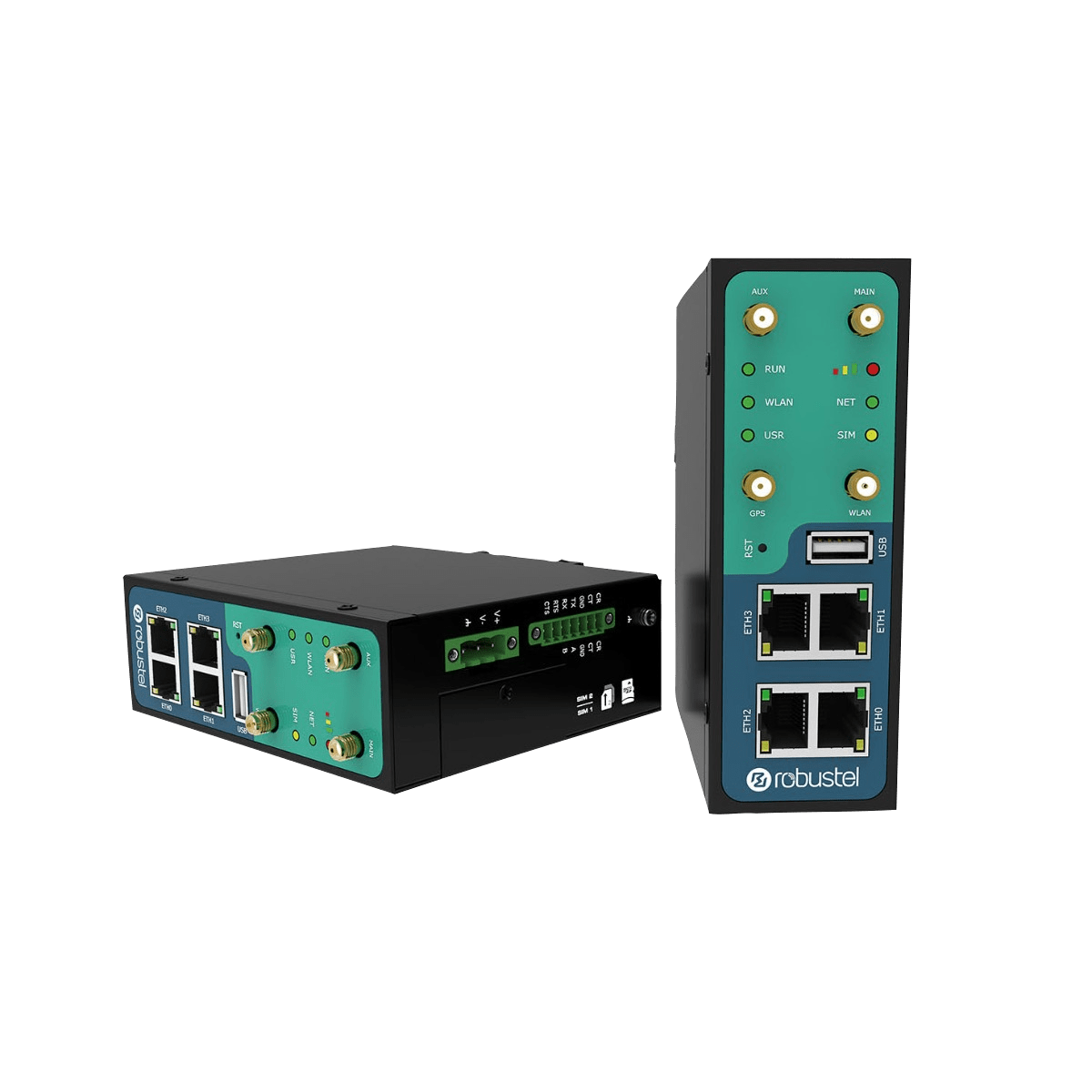

R3000QUAD
