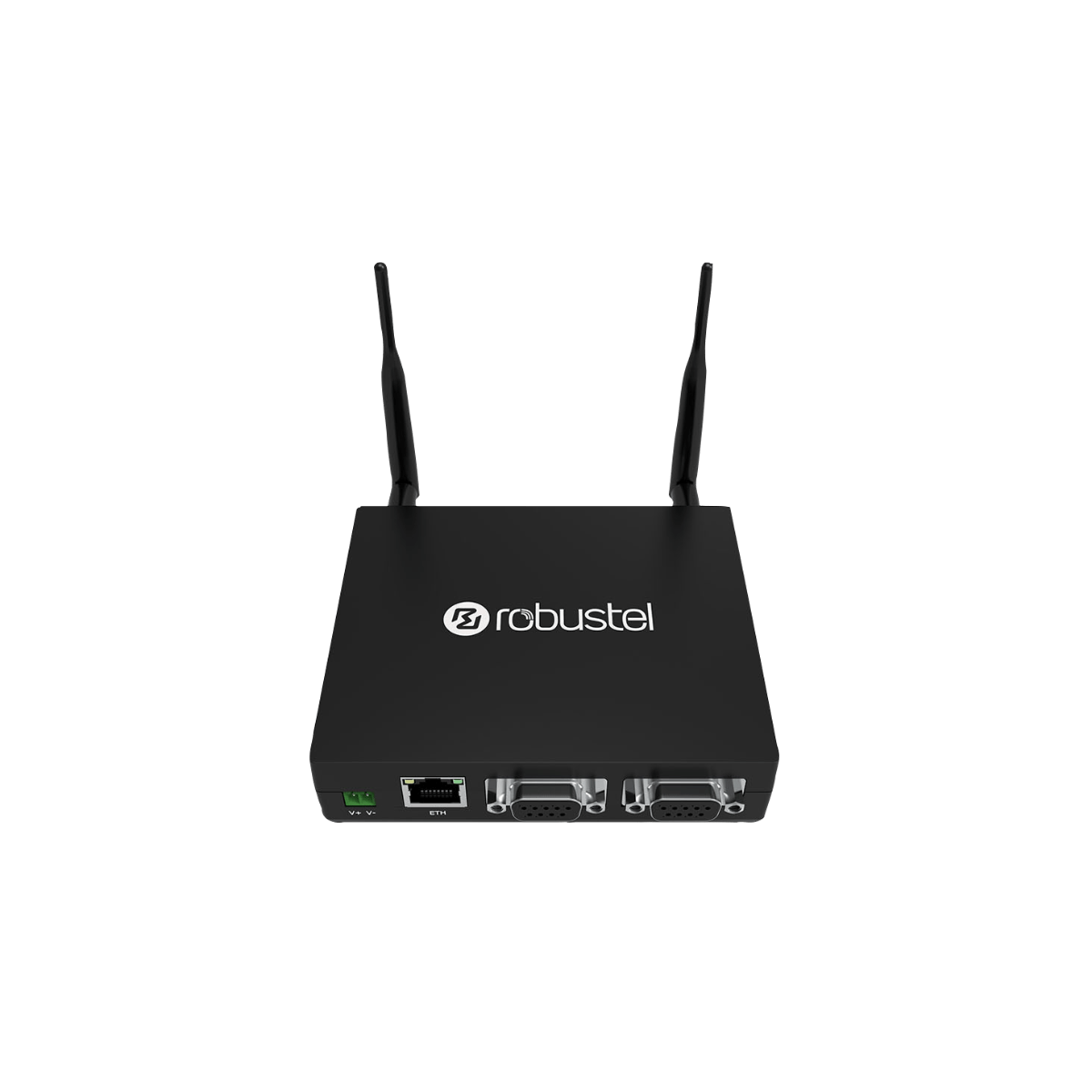

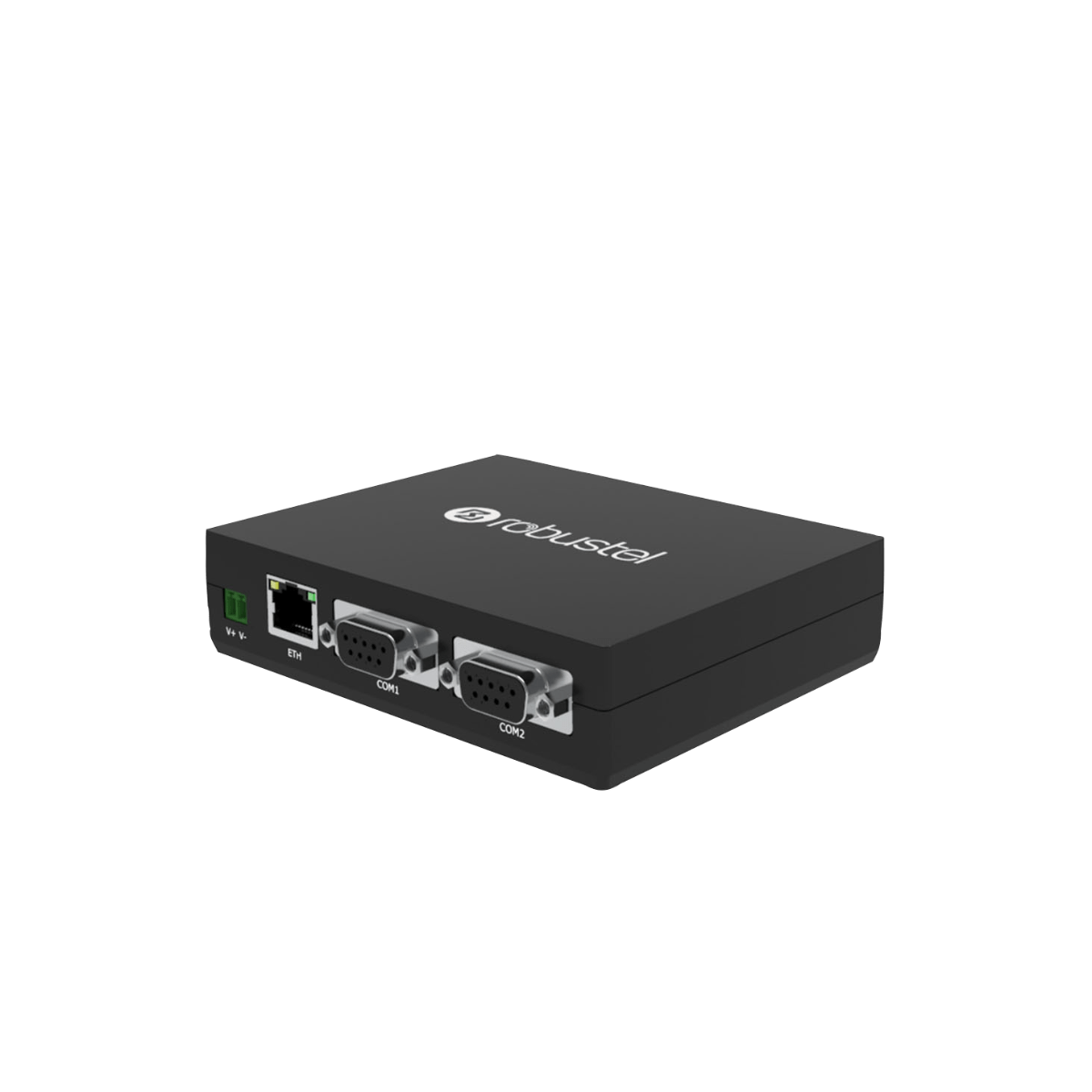

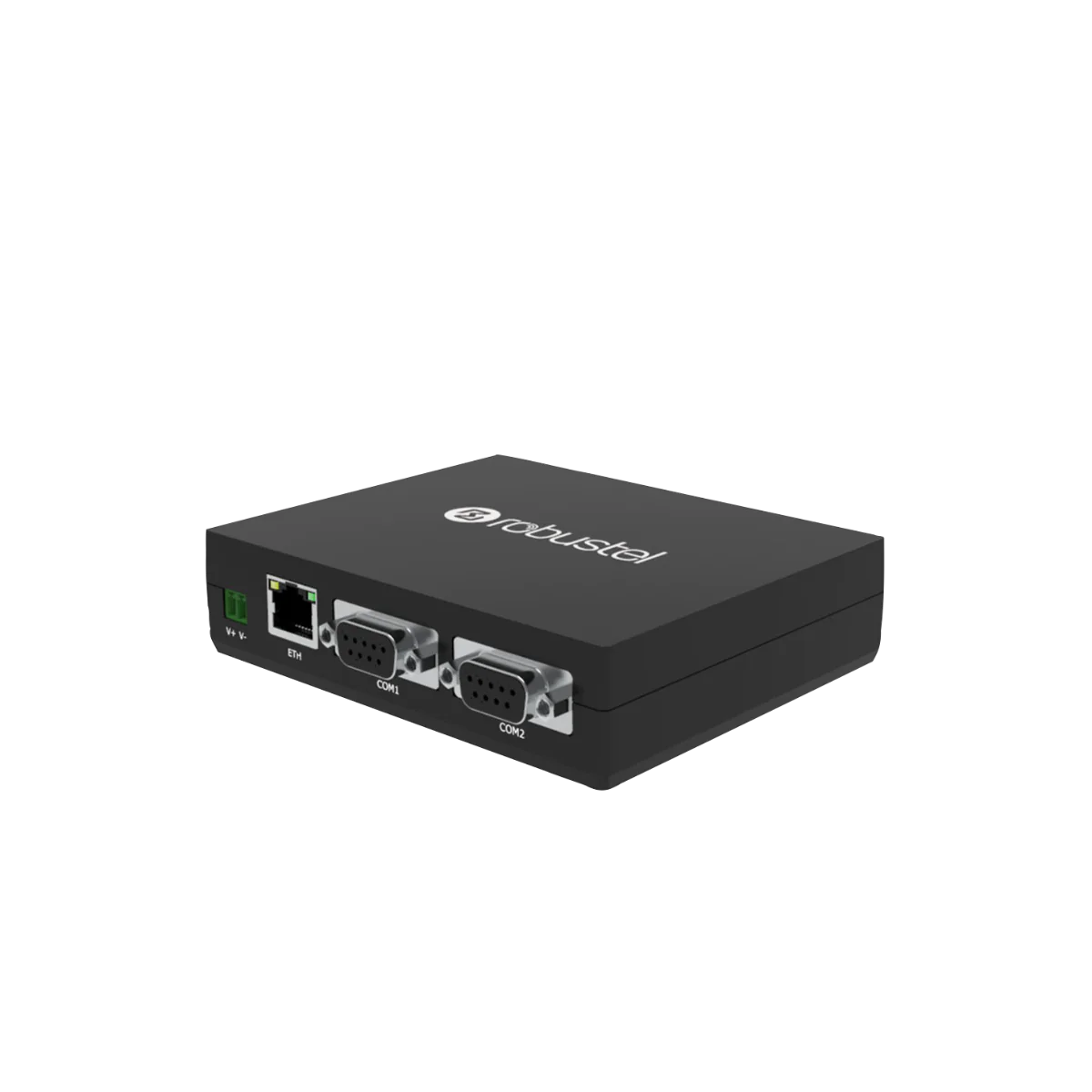

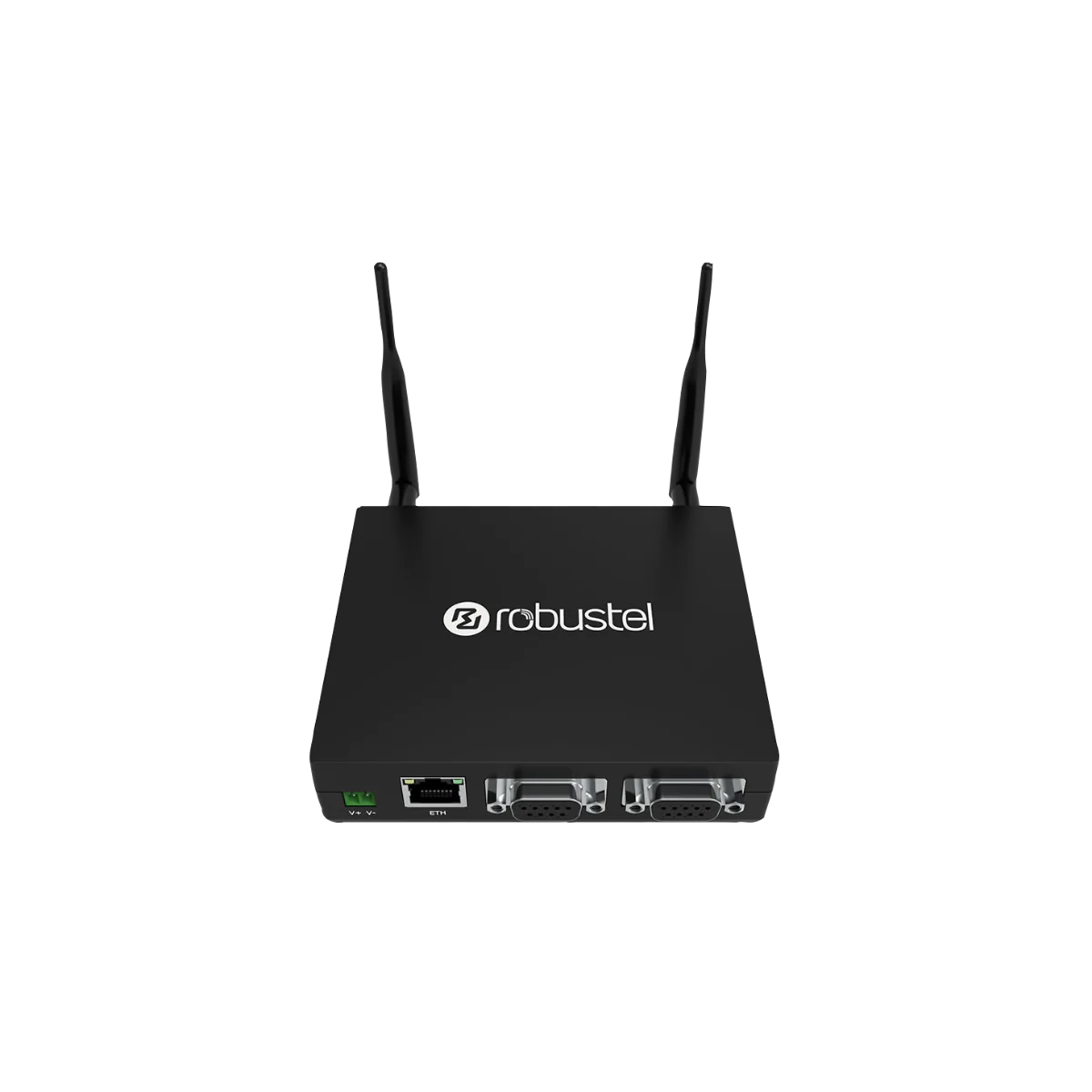

Robustel R1500 Industrial IoT Gateway
The Robustel R1500 is the latest industrial IoT gateway from Robustel. Providing high-speed 4G/LTE cellular connectivity for remote industrial devices. The R1500 houses a powerful LTE Cat-4 module inside a compact, rugged, flame-retardant casing with 2x RS232 Serial Ports and Dual SIM Card slots for redundancy.
R1500 Features
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN and various VPNs
- Supporting double cards link backup and ICMP detection
- Supporting SMS, Email, SNMP Trap and RobustLink
- Supporting Modbus RTU to TCPã€Modbus Master
- Supporting TCP client/server, UDP and virtual serial ports
- Supporting IP Pass-through, DHCP server
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2 (MAIN + AUX) - SMA-K
Approvals / Certifications
CE, Telec, RCM, RoHS 2.0, WEEE
Available Apps
RobustLink
Built-in
RTC, Watchdog, Timer
Case Material
Metal
Cellular Module Support
GSM/WCDMA/FDD LTE/TDD LTE
Console Connectors
DB9
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
118 x 97.5 x 28.5 mm
Ethernet Ports
1 x 10/100 Mbps
Housing Colour
Black
Management/Troubleshooting Tools
Web, CLI, SMS
Others
Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Power Consumption
Idle: 80 mA@12 V Data link: 450 mA (peak) @12 V
Power Input
9 to 36V DC
Power Supply Connector
2-pin 3.5 mm
Serial Baud Rate
300bps to 115200bps
Serial Ports
2 x RS-232 -
Signal Definition
TxD, RxD, GND, CTS, RTS, DSR, DTR
SIM Slots
2 (3 V & 1.8 V)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.
Status LED
300bps to 115200bps
VPN Tunnel
IPsec, OpenVPN, GRE
The Robustel R1500 Industrial IoT Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R1500 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R1500 Industrial IoT Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial IoT Gateway fits your specific needs, please contact us.
The Robustel R1500 Industrial IoT Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R1500 Industrial IoT Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R1500 Industrial IoT Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R1500 Industrial IoT Gateway or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R1500 or need a custom Industrial IoT Gateway solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

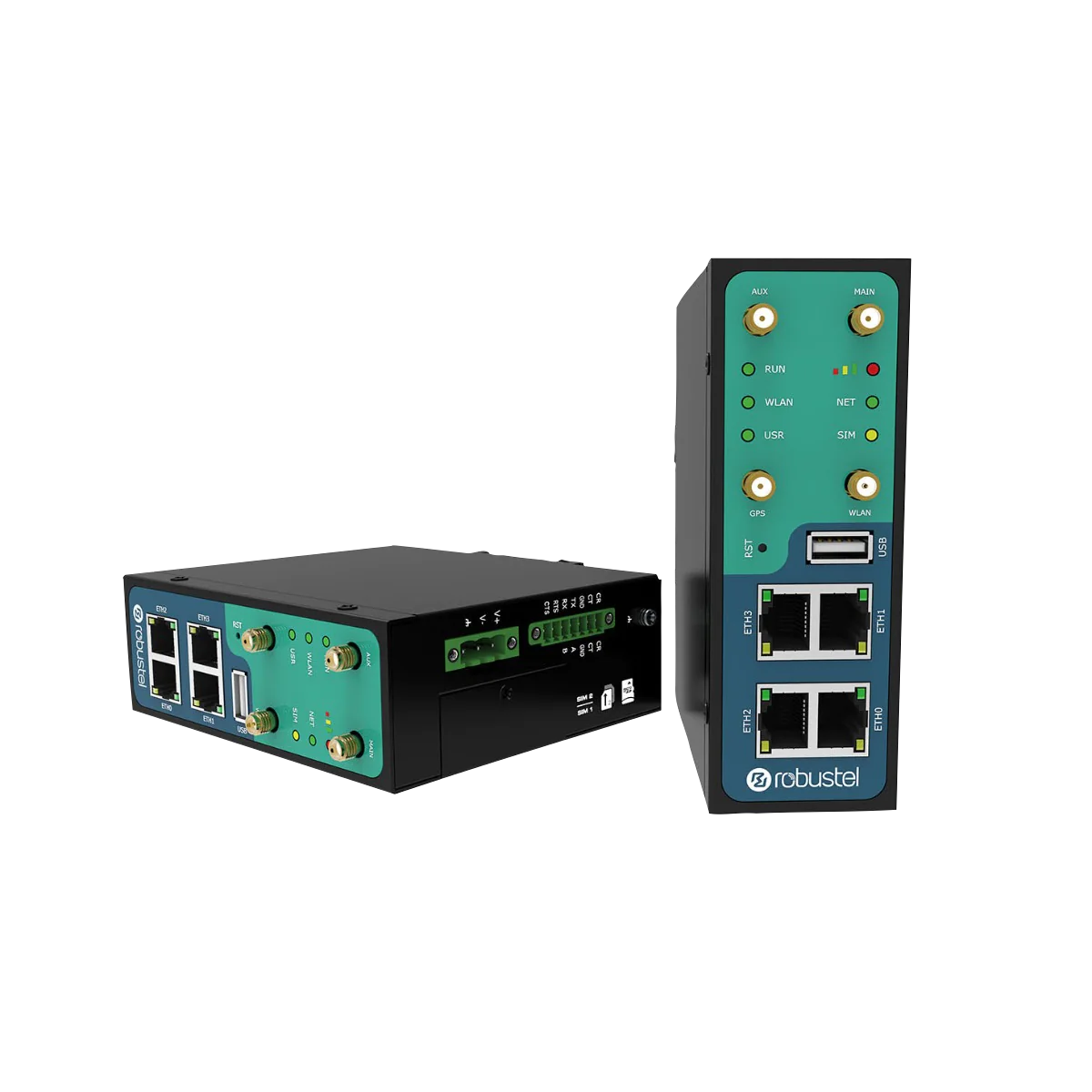

R3000QUAD
