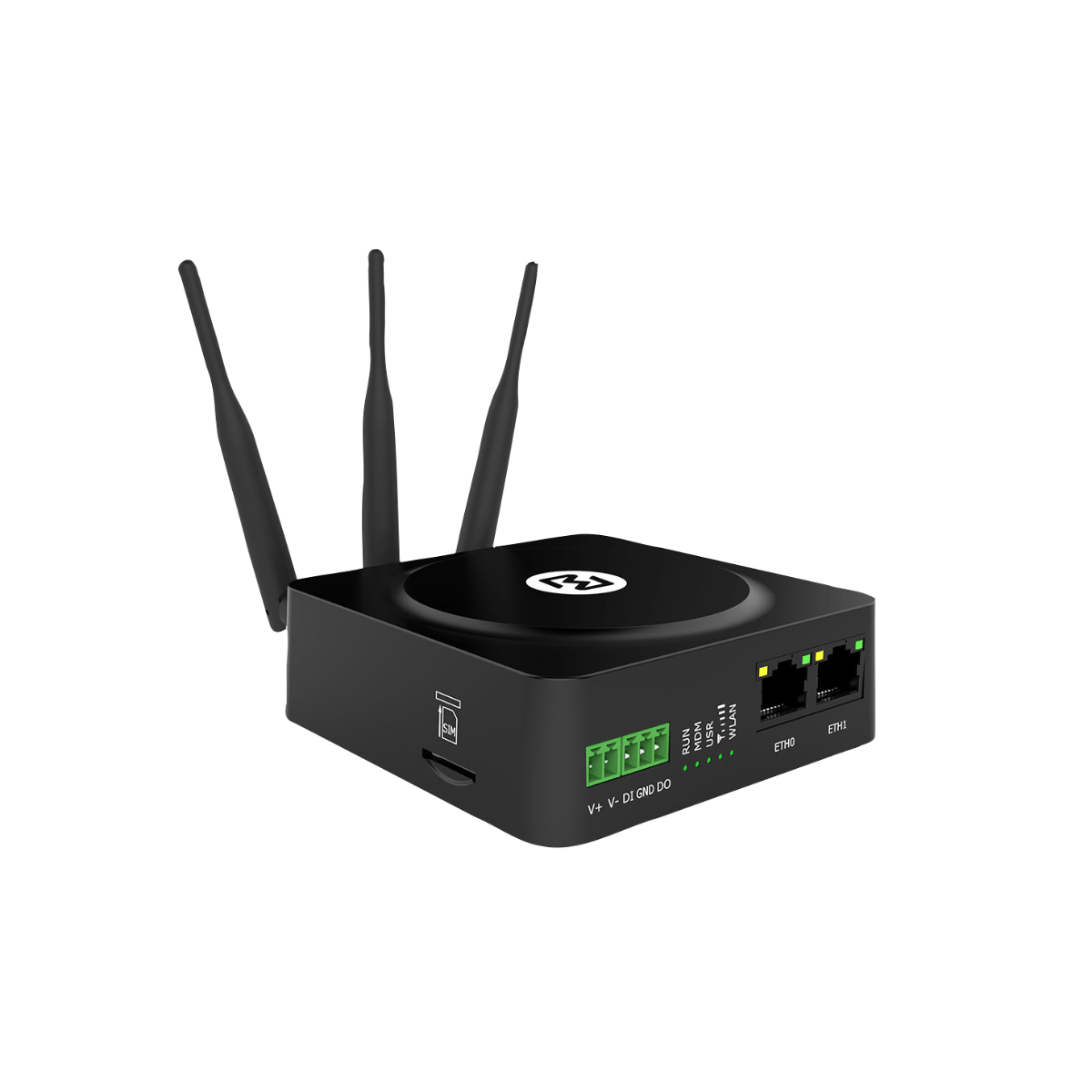

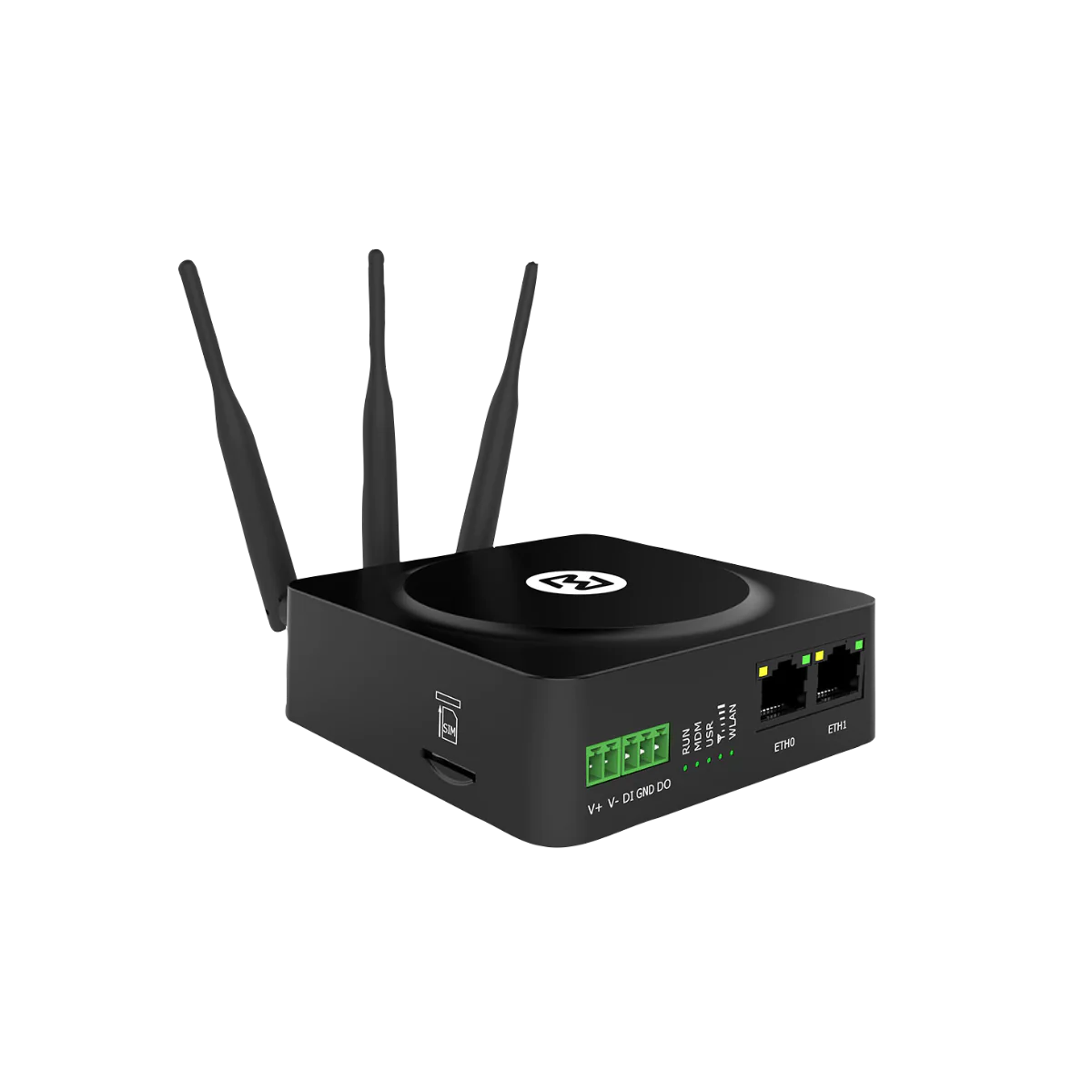

Robustel R1510 Industrial Cellular VPN Router
Robustel R1510 router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point.
The R1510 has many unique software innovations including, but not limited to:
RobustVPN innovative use of Open VPN tunnelling to provide a fixed IP address on ANY SIM Card.
RCMS Robustel Cloud management platform essential for managing an estate of routers Basic version FREE.
Data Guard critical Ëœfailsafe â„¢ that stops unexpected data over-use within seconds of a threshold being breached.
Smart Reboot essential backup solution for when your roaming SIM card doesn â„¢t roam!
Â
R1510 Features
- Highly stable 2G/3G/4G cellular connections
- Ethernet, Wifi and 4G internet connection options with auto-failover
- Free cloud management platform RCMS
- Fully programmable Linux environment with excellent SDK Documentation
- Smart Reboot’ for enhanced roaming SIM management
- RobustVPN provides fixed IP address on ANY SIM card
- Full SMS control for diagnosis and recovery from data network problems
- Very small footprint for space-constrained applications
- Wall-mount and DIN-rail mounting options available
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2 external antenna (MAIN + AUX)
Approvals / Certifications
RoHS 2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP
Built-in
Watchdog, Timer
Case Material
Metal
Cellular Connectors
SMA-K
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX ADC
20mA
DI/DO Absolute MAX VDC
30V DC (DI/DO)
DI/DO Connector
3-pin 3.5 mm female socket
DI/DO Type
1 x DI (wet contact) + 1 x DO (wet contact)
Dimensions
91.5 x 91.5 x 30.8mm
EMI
EN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS
IEC 61000-4-2 (ESD) Contact Level 2; IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2
Ethernet Ports
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Housing Colour
Black
Magnet Isolation Protection
1.5 KV
Management/Troubleshooting Tools
Web, CLI, SMS
Power Consumption
Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V - UL 94 V-0, 5 VB
Power Input
9 to 36V DC
Power Supply Connector
2-pin 3.5 mm female socket
Reset Button
1 x RST
SDK Flash
4 MB
SDK Language
C, C++
SDK RAM
64 MB
SIM Slots
1 Mini SIM (2 FF)
Network Protocols
PPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.
Status LED
1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi
VPN Tunnel
IPsec, OpenVPN, GRE
WI-FI Antennas
1 external antenna
WI-FI Connectors
RP-SMA-K (external antenna)
WI-FI Data Speed
2*2 MIMO, 300 Mbps
WI-FI Encryption
64/128 AES, TKIP
WI-FI Frequency Bands
2.4 GHz
WI-FI Security
WEP, WPA, WPA2
WI-FI Standards
802.11b/g/n, supports AP and Client modes
The Robustel R1510 Industrial Cellular VPN Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R1510 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R1510 Industrial Cellular VPN Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Cellular VPN Router, Rugged Router fits your specific needs, please contact us.
The Robustel R1510 Industrial Cellular VPN Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R1510 Industrial Cellular VPN Router, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R1510 Industrial Cellular VPN Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R1510 Industrial Cellular VPN Router or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R1510 or need a custom Industrial Cellular VPN Router solution designed specifically for you, our team of technical experts are ready to assist you.
