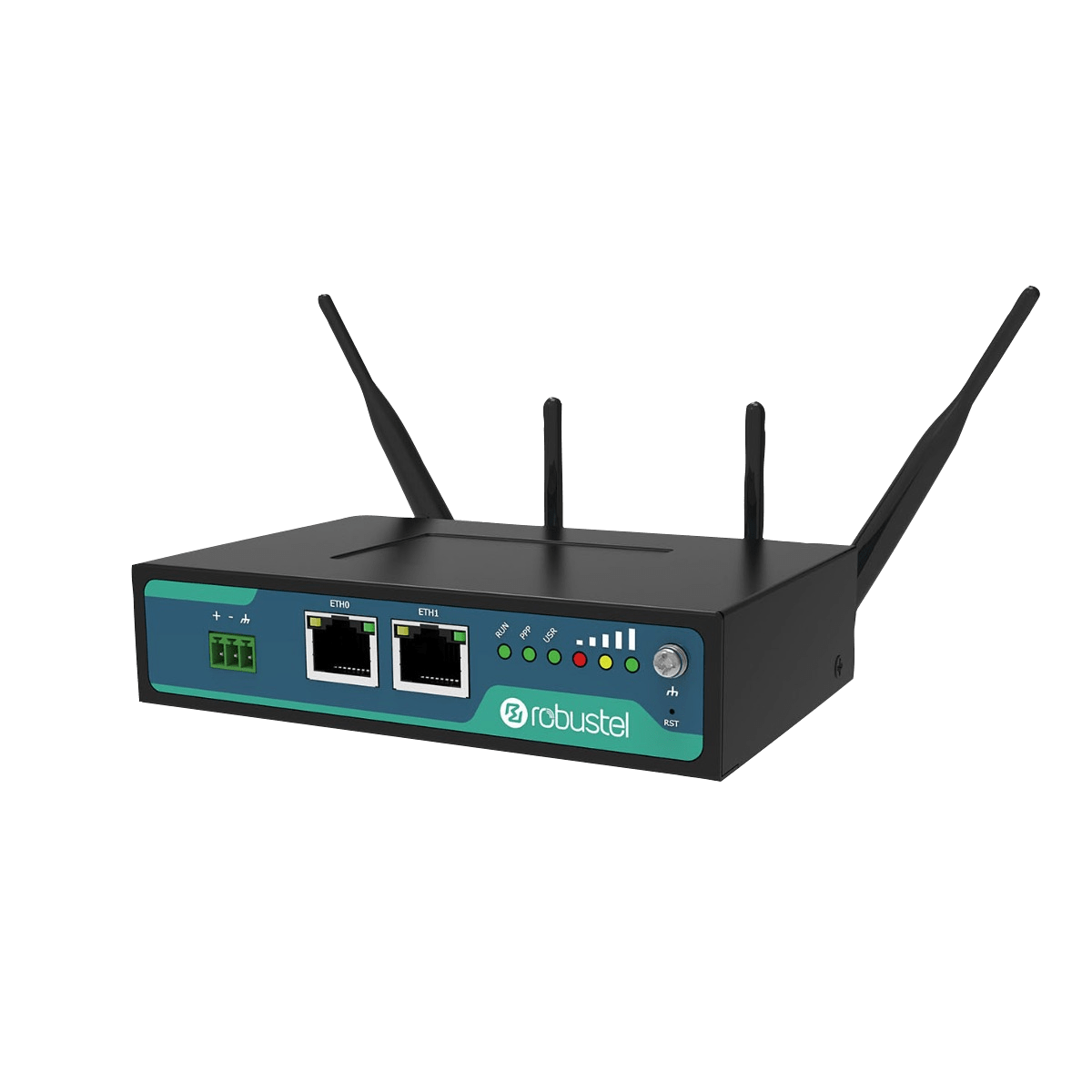

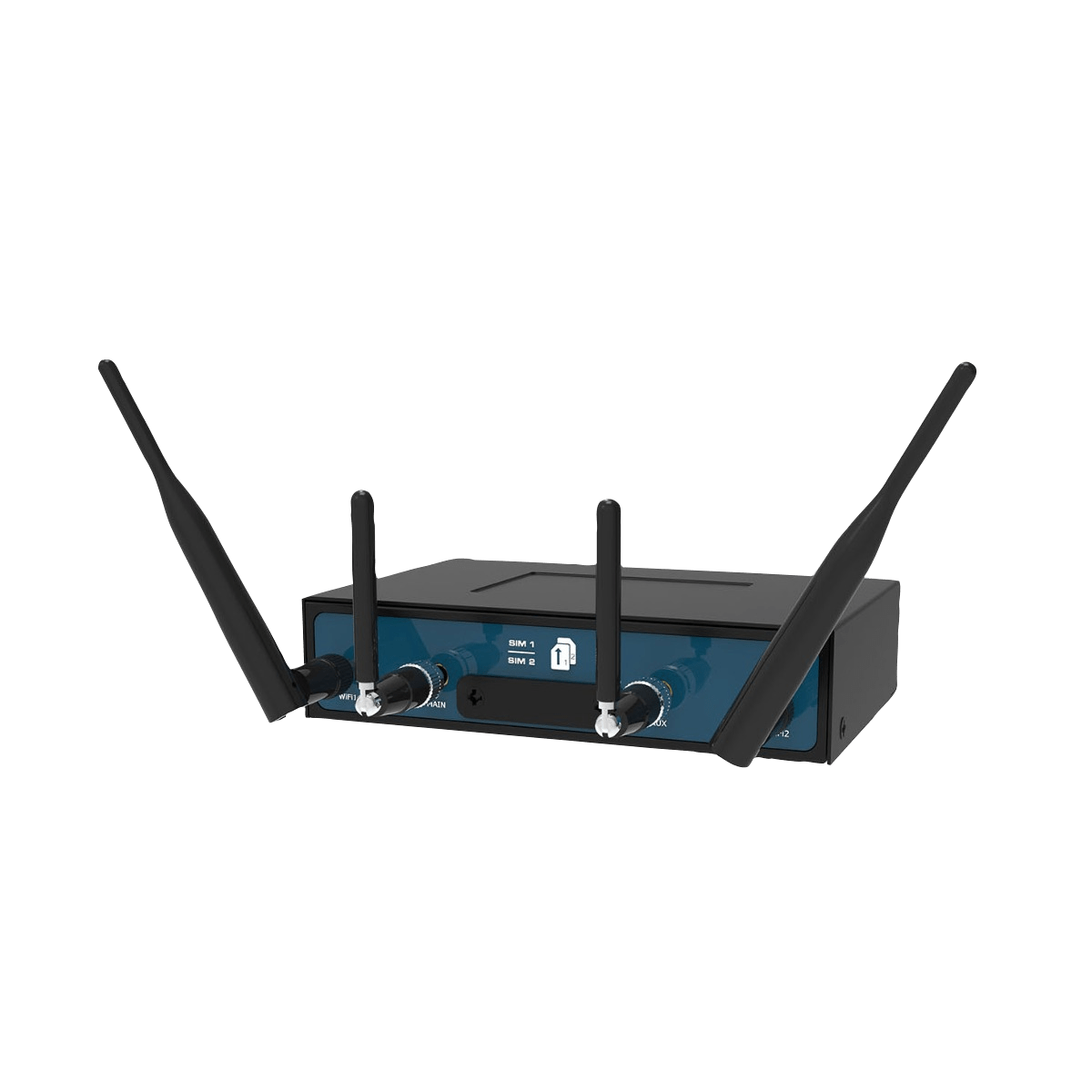

Robustel R2000 Dual-SIM VPN IoT Gateway
The Robustel Industrial Dual SIM Cellular VPN Router (R2000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.
R2000 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system that is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.
R2000 Features
- Available in 4G Cat 4 high speed and Cat-M1 low speed networks
- Industrial design (9 ~ 36 VDC, desktop or wall mounting or DIN rail mounting)
- Management and maintenance via Web/CLI/SMS/RCMS Cloud
- Supports IPv6
- Wi-Fi/Ethernet/4G WAN interface options with failover
- IPsec/OpenVPN/GRE/L2TP/PPTP/
- DMVPN VPN capabilities
- RobustVPN hosted VPN service providing a “fixed IP†router
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2 (MAIN + AUX) or 1 (MAIN) SMA-K
Approvals / Certifications
RoHS 2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP, Language, RCMS
Built-in
Watchdog, Timer
Case Material
Metal
Cellular Region
EMEA,Japan,North America,Oceania,South America
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
127.5 x 82.5 x 29.5 mm
EMI
EN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS
IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3
Enclosure
Metal
Ethernet Ports
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN - Supporting 802.3 at PD feature (optional)
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Frequency Bands
EMEA, Oceania 4G: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B26/B28 LTE TDD: B39 (for Cat.M1 only) 2G: EGPRS: 850/900/1800/1900 MHz Oceania, South America 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 North America, EMEA 4G: LTE FDD: B2/B4/B12 3G: WCDMA: B2/B4/B5 North America 4G: LTE FDD: B1/B3/B7/B8/B20/B28A 3G: WCDMA: B1/B8 2G: GSM: B3/B8 Japan 4G: LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 3G: WCDMA: B1/B6/B19
Housing Colour
Black
Magnet Isolation Protection
1.5KV
Management/Troubleshooting Tools
Web, SMS, CLI
Others
Serial port Software - Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Power Consumption
Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V
Power Input
9 to 36V DC
Power Supply Connector
3-pin 3.5 mm female socket
Reset Button
1 x RST
SDK Flash
4 MB
SDK Language
C, C++
SDK RAM
16 MB
SIM Slots
2 Mini SIM (2FF)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
Status LED
1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
VPN Tunnel
IPsec, OpenVPN, GRE
WI-FI Antennas
2 (WiFi1 + WiFi2)
WI-FI Connectors
RP-SMA-K
WI-FI Data Speed
2*2 MIMO, 300 Mbps
WI-FI Encryption
64/128 AES, TKIP
WI-FI Frequency Bands
2.4 GHz
WI-FI Module
WiFi Interface is optional
WI-FI Security
WEP, WPA, WPA2
WI-FI Standards
802.11 b/g/n supporting AP and Client modes
The Robustel R2000 Dual-SIM VPN IoT Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R2000 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R2000 Dual-SIM VPN IoT Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial IoT Gateway fits your specific needs, please contact us.
The Robustel R2000 Dual-SIM VPN IoT Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R2000 Dual-SIM VPN IoT Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R2000 Dual-SIM VPN IoT Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
