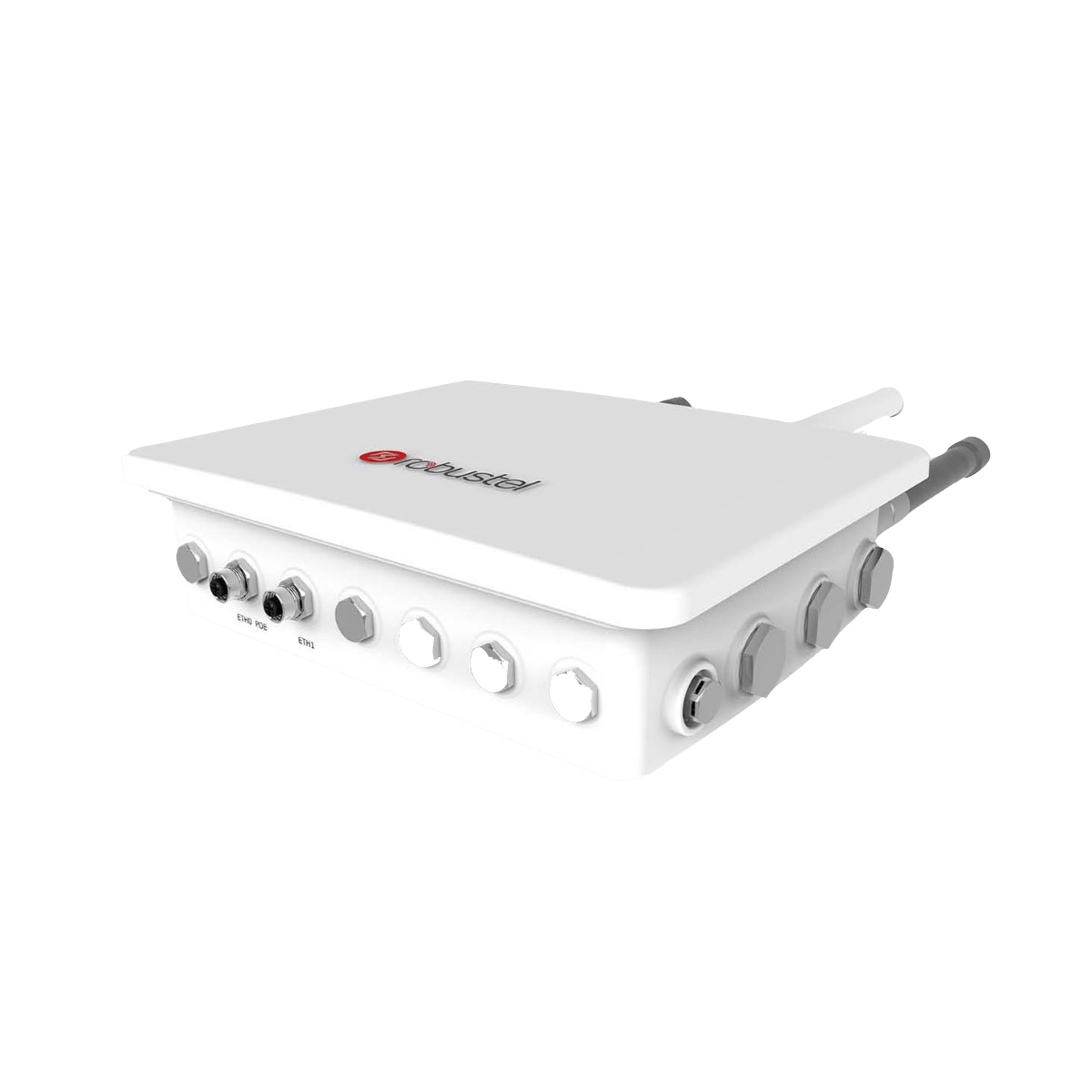

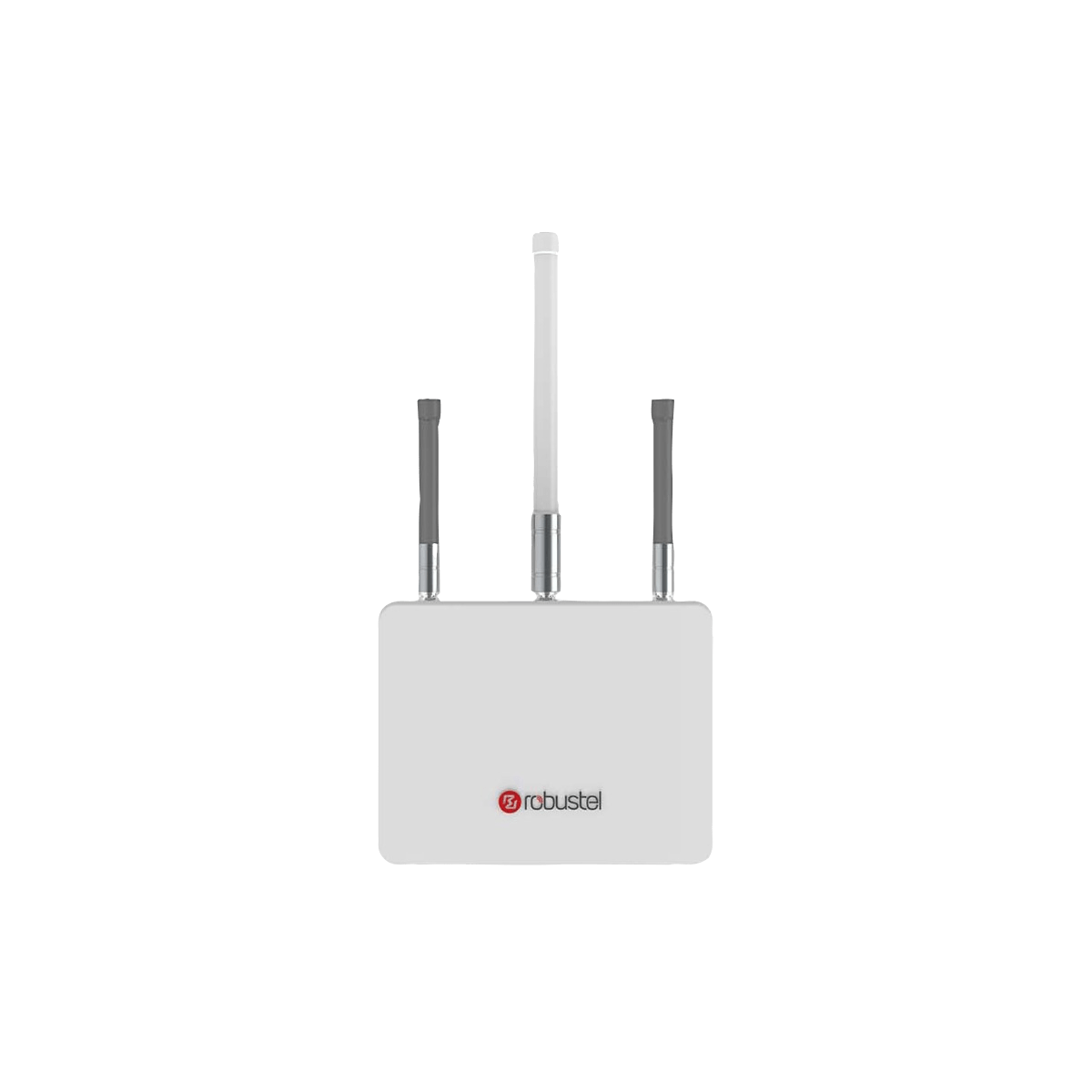

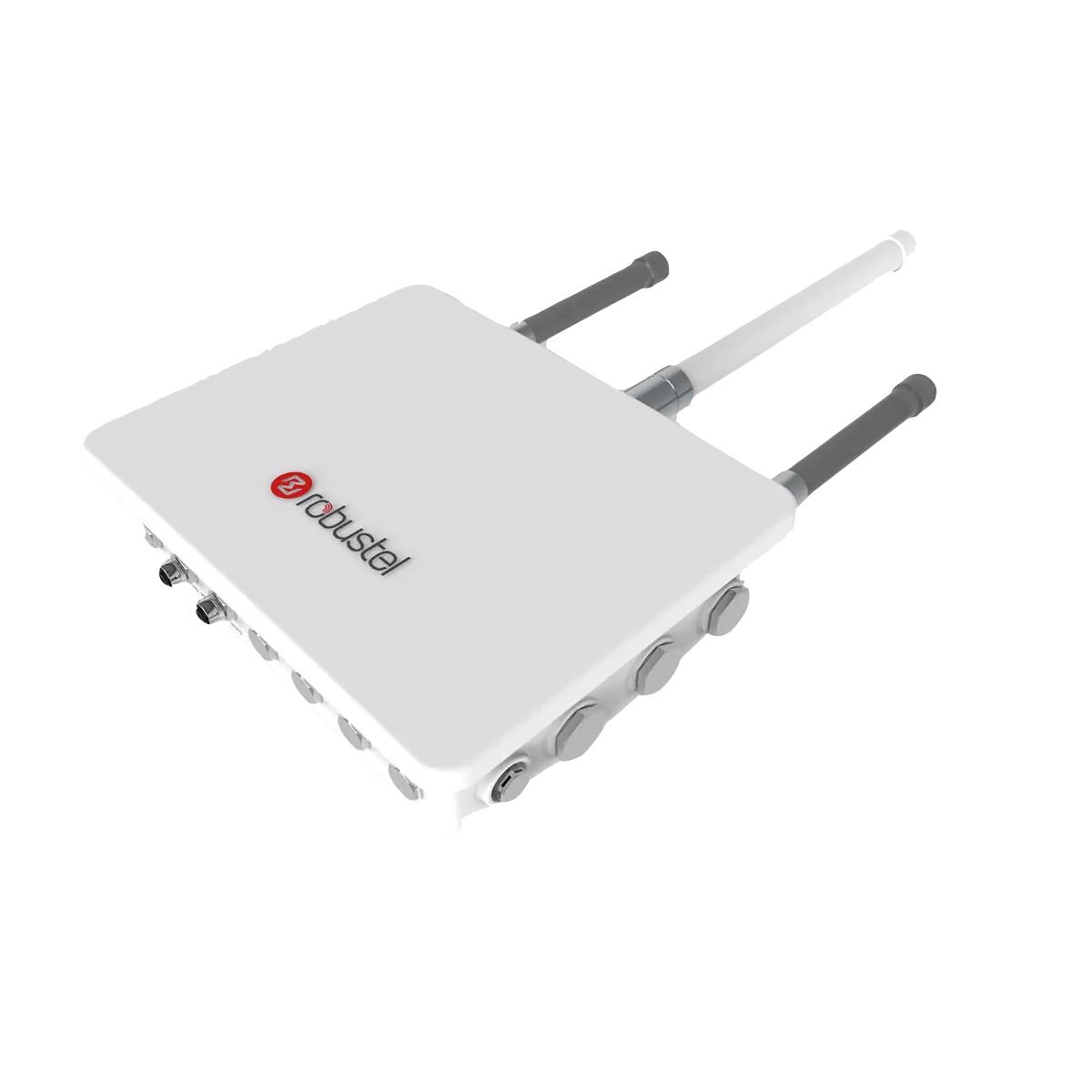

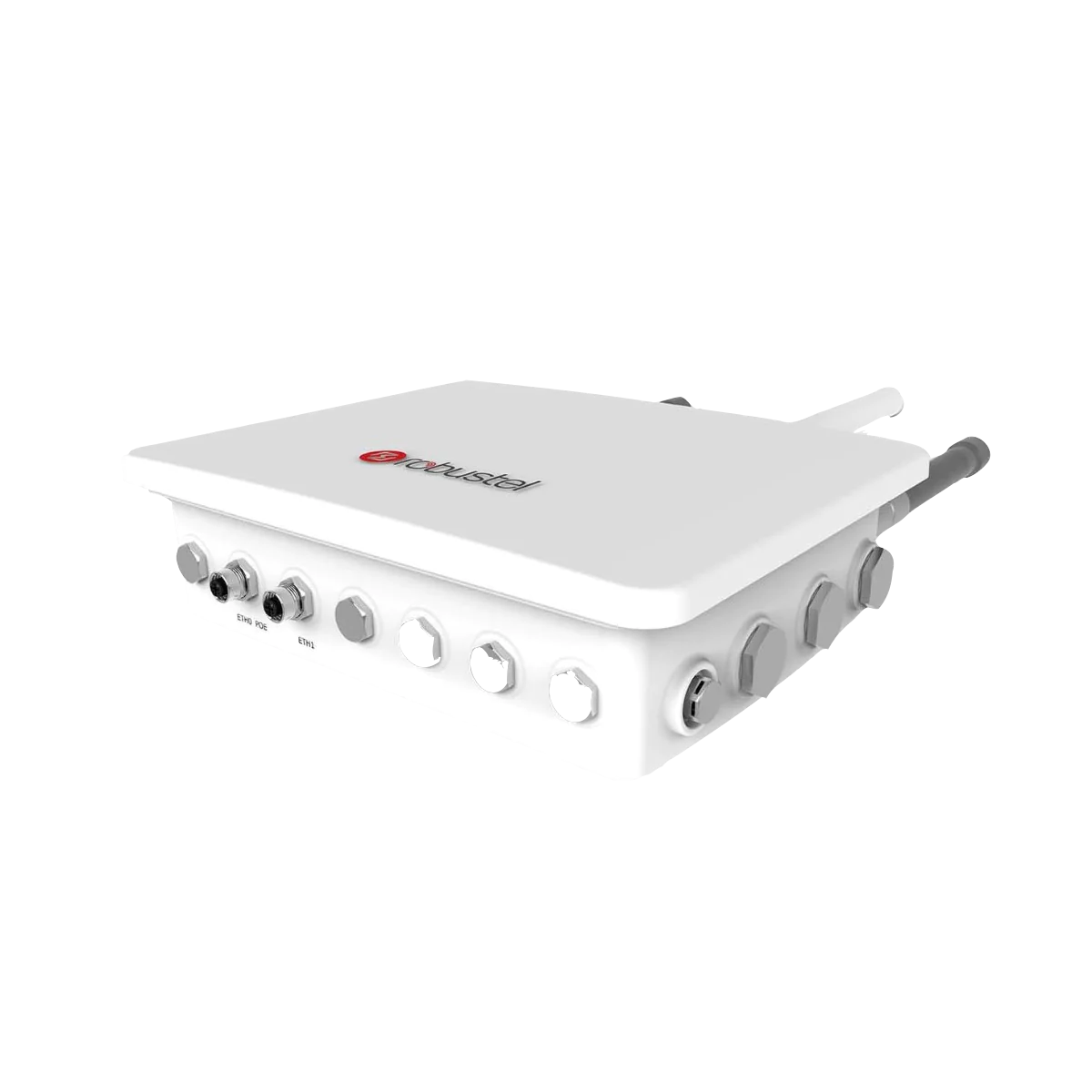

Robustel R3000 IP67 Outdoor LoRaWAN Gateway
The Robustel R3000 LG-OG is an IP67 outdoor LoRaWAN gateway with a myriad of advanced features not usually found on such devices. Unique features include:
Â
Smart Roaming – Unique network selection algorithm for intelligent network selection when using 3G/4G backhaul with roaming SIMs “ gives highest possible resilience.
RobustVPN – Make easy inbound connections to Robustel Gateways on ANY SIM or on any broadband connection. No fixed IP of DynDNS services required.
Built-in LNS – Optional built-in LoRaWAN Network Server for applications that require local processing of network data “ minimises network traffic.
Â
This best-selling product allows you to scale up or down as required. It is a stable, industrial-quality device that is market-competitive at a very attractive price.
The R3000 LG-OG outdoor LoRa gateway is ideal for applications such as Smart Agriculture, or Healthcare.
Â
All of the latest models utilise global cellular module technology to support Global LTE (4G) communications.
R3000LG-OG Features
- Supports global LoRaWAN ISM frequency bands
- Compatible with LoRaWAN and private protocols
- Compatible with any LoRaWAN Network Server
- Up to 8 channels supports receive data simultaneously
- RobustOS Operating System with extensive SDK
- Backhaul option supports 3G, 4G and Ethernet
- Supports dual SIM + Smart Roaming for high availability cellular Comms
- IP67 ingress protection withstanding water, dust and other extreme weather conditions
- PoE power – single cable installation
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2 (MAIN + AUX)
Approvals / Certifications
CE , RCM, FCC, RoHS 2.0, WEEE
Available Apps
lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language
Case Material
Rugged Plastic
Cellular Connectivity
2G/3G/4G
Cellular Connectors
M16, female
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
310 x 245 x 93.4 mm
Ethernet Ports
2 x 10/100 Mbps - M12, 4Pin&8Pin
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
GNSS Connector
SMA-K with 50 ohms impedance (inside)
GNSS Horizontal Position Accuracy
GPS: 5 m, Acquisition sensitivity GPS: greater than -148 dBm
GNSS No. of Antennas
1
Housing Colour
White
LoRa Antennas
1
LoRa Communication Range
15 km
LoRa Connector
M16, female
LoRa Max Sensitivity
-142 dBm
LoRa Max TX Power
+24.5 dBm
LoRa Reception Capacity
Supports 8 channels, and each channel can receive data simultaneously Supports 1 MHz bandwidth demodulation
LoRa Standards
863-870 MHz (Europe) 470-510 MHz (China) 915-927 MHz (Australia) 902-928 MHz (North America) 920-928 MHz (Japan)
Management/Troubleshooting Tools
Web, CLI, SMS
Power Consumption
Idle: 4W Data link: 12W (peak)
Power Input
PoE IEEE 802.3af/at Class A/B, 36V-48V
Protocols
LoRaWAN protocols V1.0 Class A/Class C and V1.0.2 Class A/Class C
SIM Slots
2 (3 V & 1.8 V)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN Tunnel
IPsec, OpenVPN, GRE
The Robustel R3000 IP67 Outdoor LoRaWAN Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R3000LG-OG is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R3000 IP67 Outdoor LoRaWAN Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this LoRaWAN Gateway, Rugged Gateway fits your specific needs, please contact us.
The Robustel R3000 IP67 Outdoor LoRaWAN Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R3000 IP67 Outdoor LoRaWAN Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R3000 IP67 Outdoor LoRaWAN Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R3000 IP67 Outdoor LoRaWAN Gateway or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R3000LG-OG or need a custom LoRaWAN Gateway solution designed specifically for you, our team of technical experts are ready to assist you.
