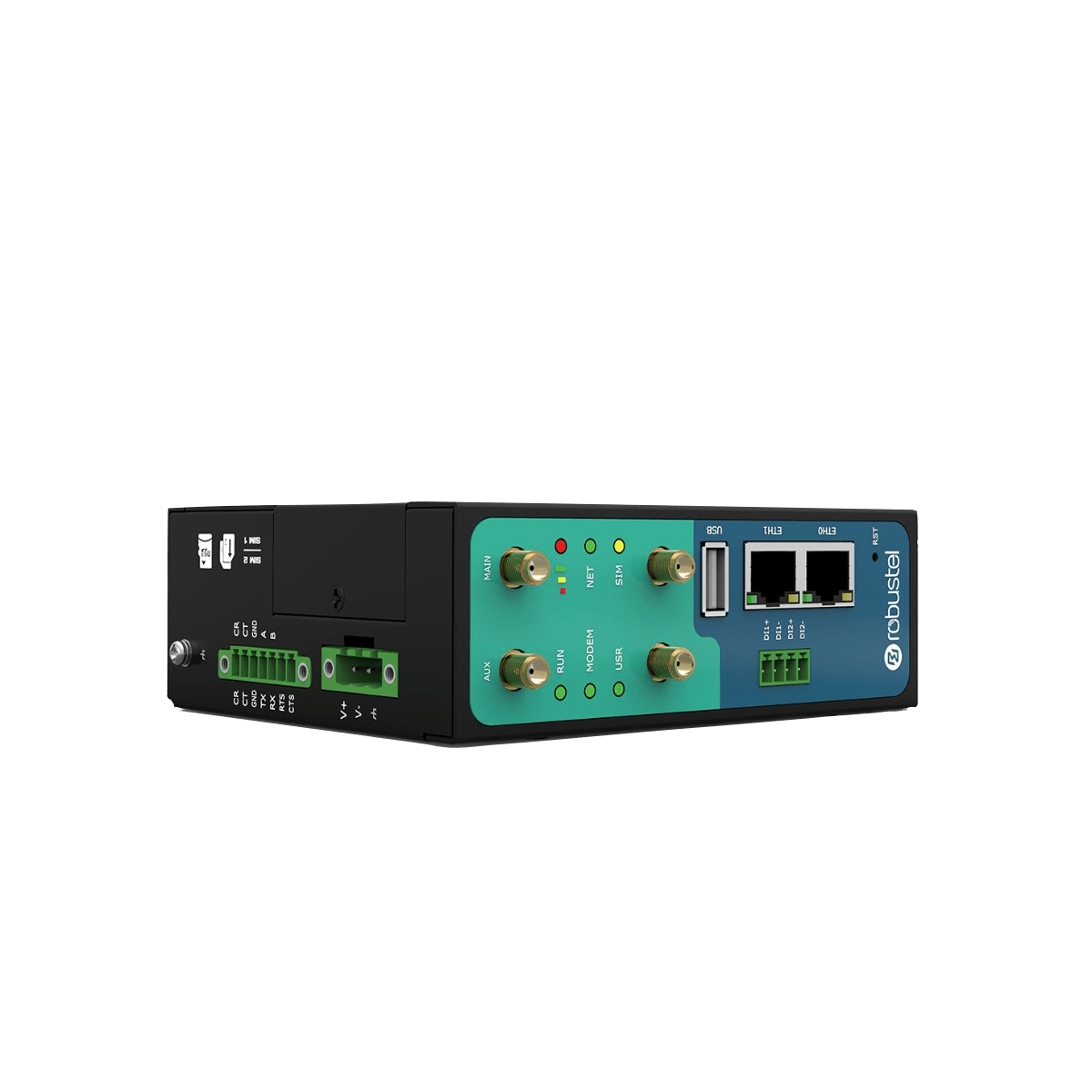

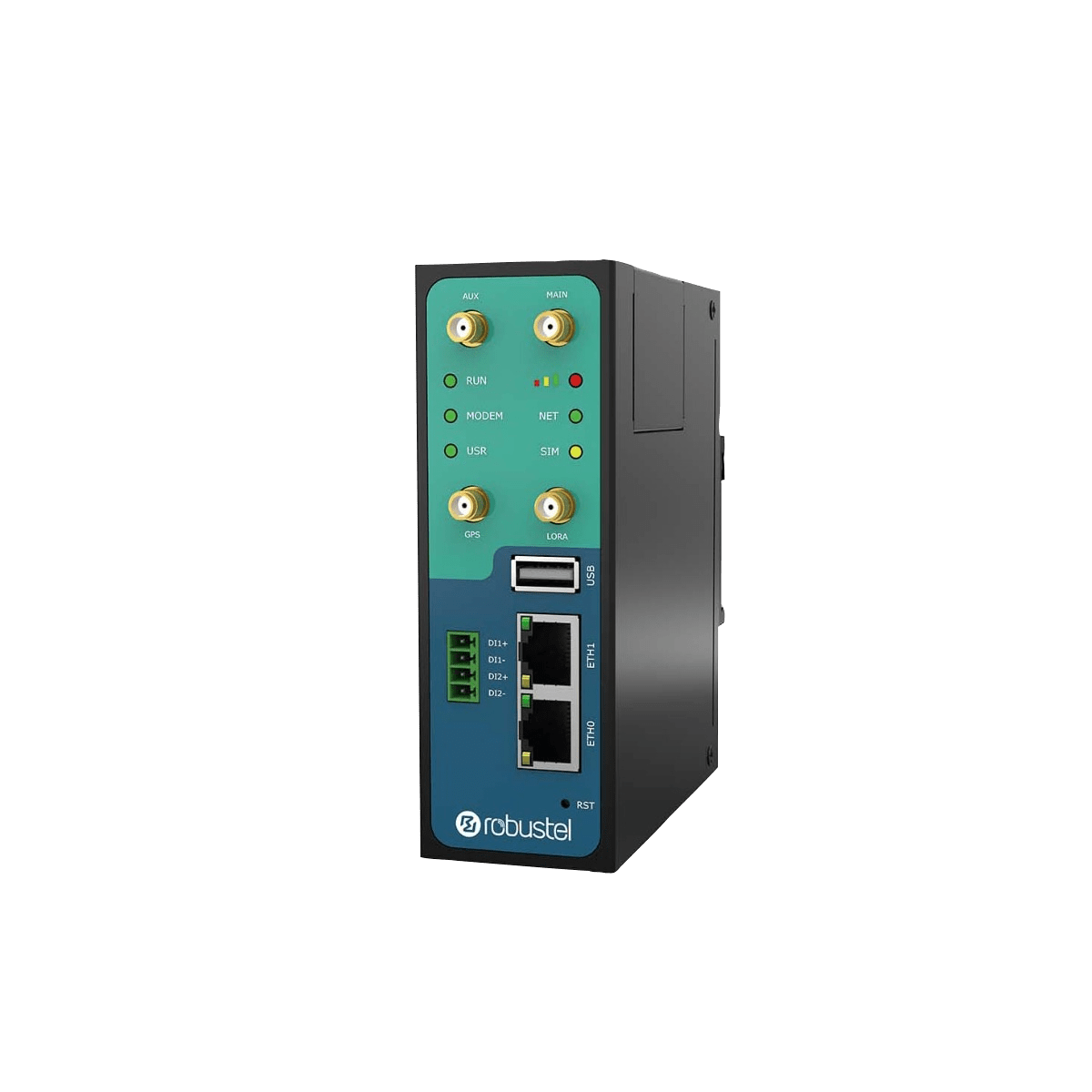

Robustel R3000 LG Industrial LoRaWAN Gateway
Robustel R3000 LG is an industrial-grade LoRaWAN gateway, integrated with LoRaWAN wireless communication technology and cellular network technology, to provide users with wireless long-distance data transmission services.
Our LoRAWAN Gateway supports wired Ethernet and wireless 4G/3G/2G connectivity. It is ideal for creating a private LoRaWAN IoT Network in the following locations;
- Factories and Plants
- Farms, Vineyards and Orchards
- Office buildings
- Schools and University Campuses
- Hospitals.
When placed in our rugged IP67 housing, it can also be mounted outdoors.
R3000LG Features
- Supporting global LoRaWAN frequency bands
- Compatible with LoRaWAN and private protocols
- Compatible with any LoRaWAN cloud server
- Up to 8 channels supporting data reception simultaneously
- Supporting Packet Forwarder Version 2.2.1 and Packet Forwarder Protocol Version 1
- RobustOS + SDK
- TPH6700 Housing optional
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
SMA-K
Approvals / Certifications
RoHS2.0, WEEE
Available Apps
lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language
Built-in
1 x Micro SD interface, 1 x USB 2.0 host up to 480 Mbps, 1 x CLI interface, RTC, Watchdog, Timer
Case Material
Metal
Cellular Connectivity
2G/3G/4G
Cellular Connectors
2 (MAIN + AUX)
Cellular Region
EMEA,USA,Oceania
Console Connectors
7-pin 3.5 mm female socket with lock
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX ADC
300 mA
DI/DO Absolute MAX VDC
“V+†+5V DC (DI)
DI/DO Connector
2 x DI (wet contact), 4-pin 3.5 mm female socket
DI/DO Isolation
3KVDC or 2KVrms
Dimensions
125 x 104 x 43.5 mm
EMI
EN 55032: 2012/AC: 2013 (CE&RE) Class B
EMS
IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2
Enclosure
Metal
Ethernet Ports
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
GNSS
GNSS Interface (Optional)
GNSS Acquisition Sensitivity
GPS: greater than -148 dBm GLONASS: greater than -145 dBm
GNSS Connector
SMA-K with 50 ohms impedance
GNSS Horizontal Position Accuracy
GPS: 2.5 m
GNSS No. of Antennas
1
GNSS Technology
NMEA-0183 v4.10
LoRa Antennas
1
LoRa Communication Range
15 km
LoRa Connector
SMA-K with 50 ohms impedance
LoRa Max Sensitivity
-142 dBm
LoRa Max TX Power
+24.5 dBm
LoRa Reception Capacity
Supports 8 channels, and each channel can receive data simultaneously Supports 1 MHz bandwidth demodulation
LoRa Standards
863-870 MHz (Europe) 915-927 MHz (Australia) 902-928 MHz (North America) 920-928 MHz (Japan)
Magnet Isolation Protection
1.5 KV
Operating Temperature
Minus 40 degrees celsius to 75 degrees celsius
Power Consumption
Idle: 100 mA@12 V Data link: 400 mA (peak) @12 V
Power Input
9 to 60V DC
Power Supply Connector
3-pin 5 mm female socket with lock
Protocols
LoRaWAN protocols V1.0 Class A/Class C and V1.0.2 Class A/Class C
Remote Management
Web, CLI, SMS
Reset Button
1 x RST
SDK Flash
64 MB
SDK Language
C, C++
SDK RAM
64 MB
Serial Baud Rate
300 bps to 230400 bps
Serial Port Software
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Serial Ports
1 x RS232 or 1 x RS485, Parametric form 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
Signal Definition
RS-232: TxD, RxD, RTS, CTS, GND
SIM Security
RS-485: Data+ (A), Data- (B)
SLIC
2 (3 V & 1.8 V)
Spot Size
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
Storage Cables Adapters
1 x RUN, 1 x MODEM, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM
Storeage Drop Resistance
-40 ~ +85 °C
Timer
5 ~ 95% RH
VPN Tunnels
IPsec, OpenVPN, GRE
Water Resistant
2 Year Limited Warranty
The Robustel R3000 LG Industrial LoRaWAN Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R3000LG is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R3000 LG Industrial LoRaWAN Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this LoRaWAN Gateway, Rugged Gateway fits your specific needs, please contact us.
The Robustel R3000 LG Industrial LoRaWAN Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R3000 LG Industrial LoRaWAN Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R3000 LG Industrial LoRaWAN Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
