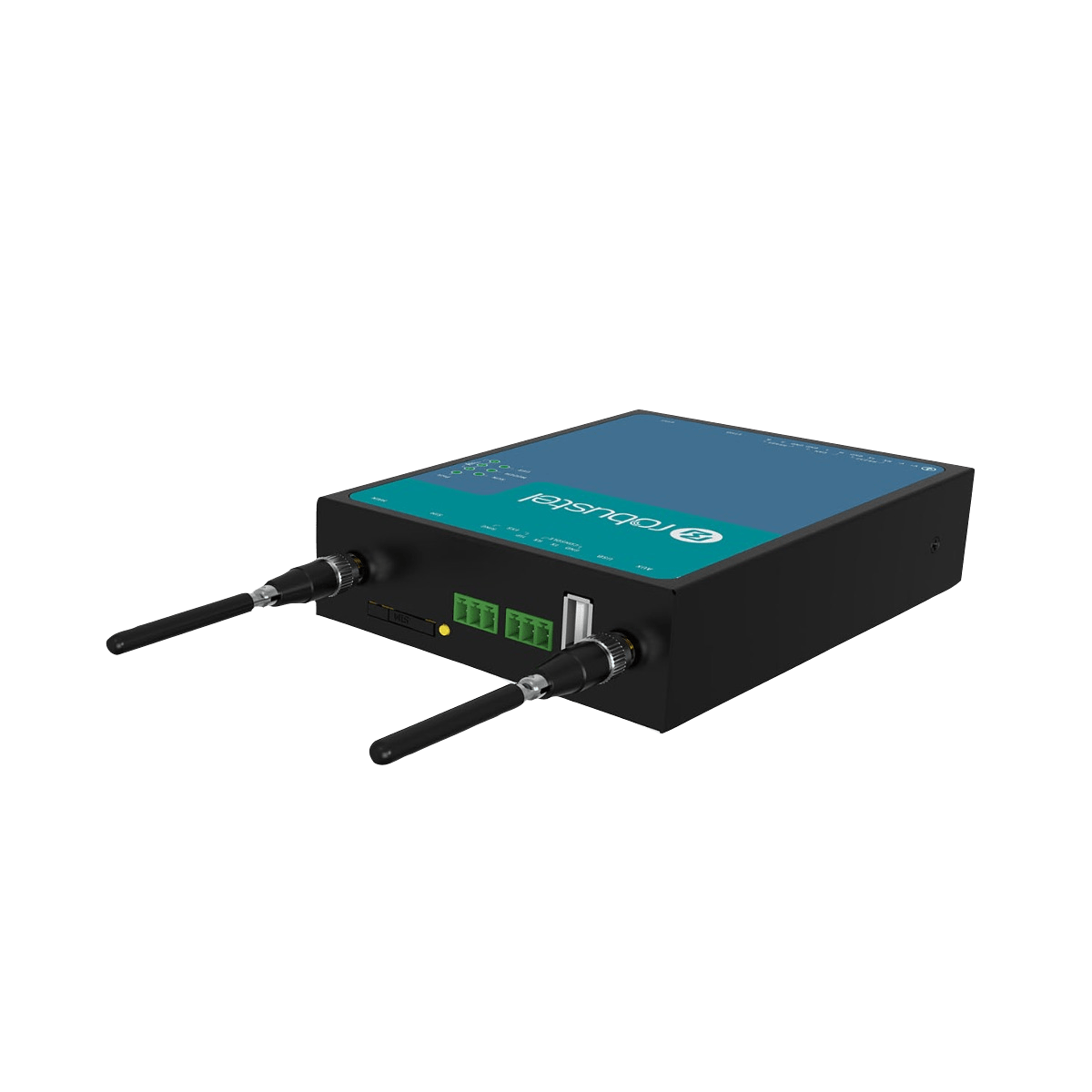

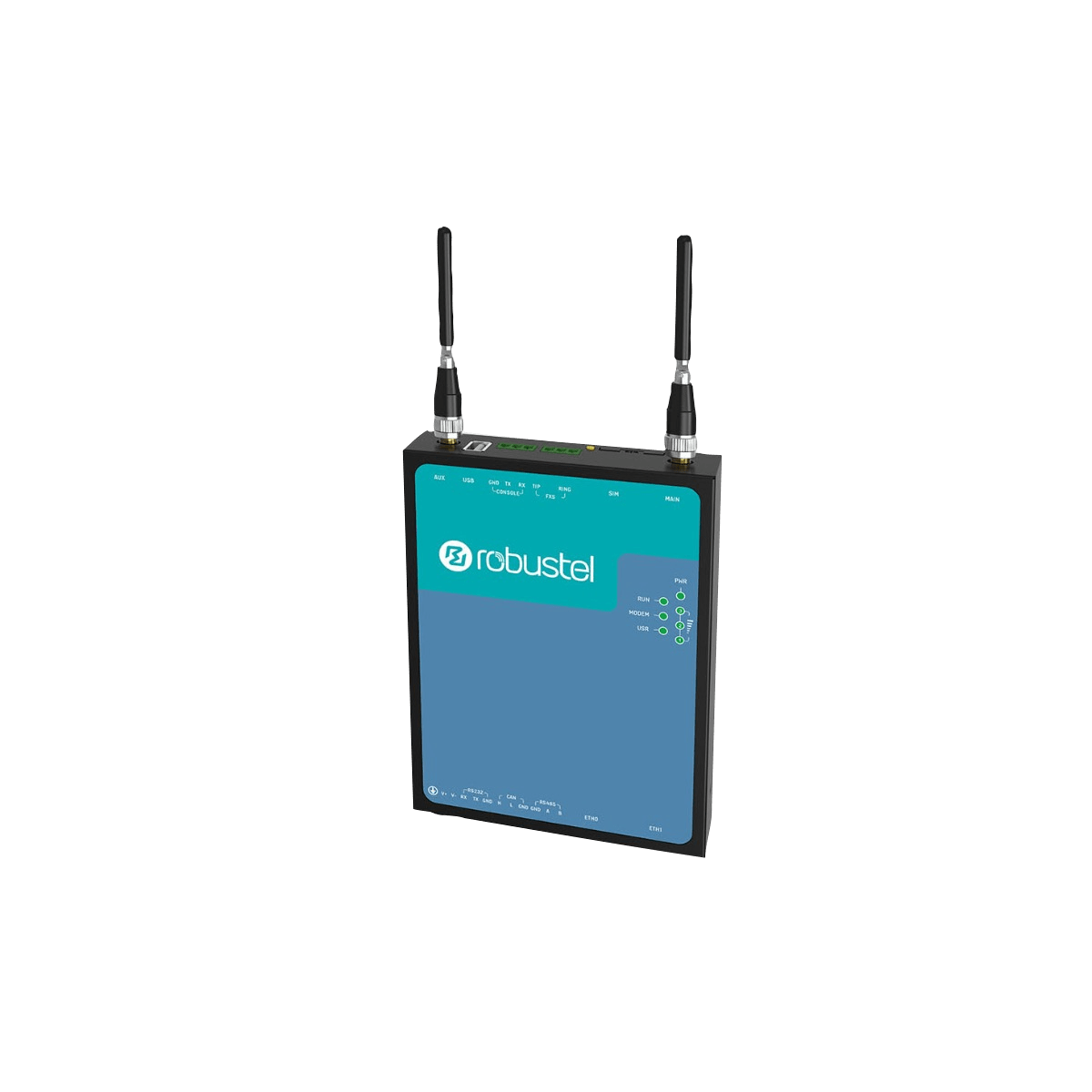

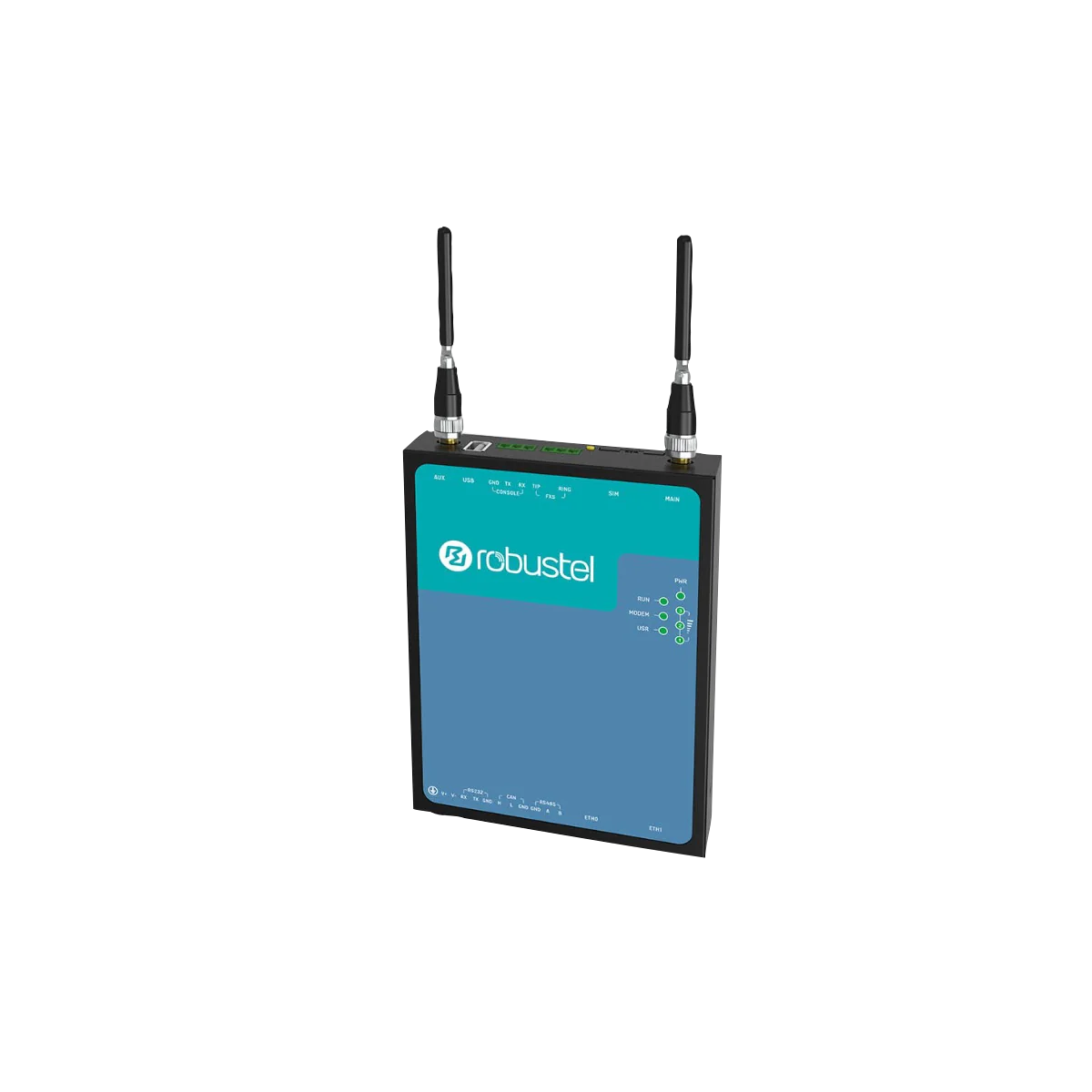

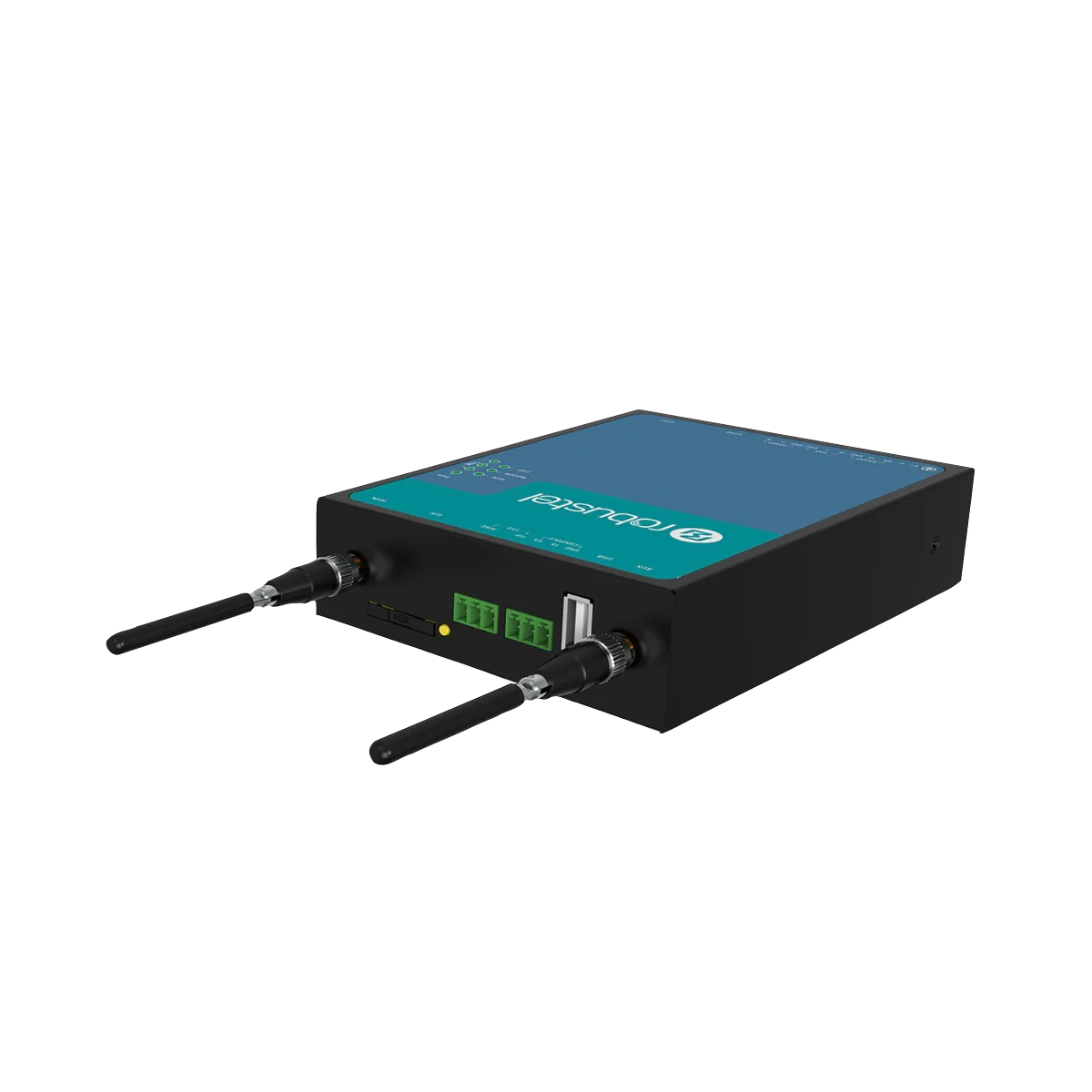

Robustel R3010 Industrial Gateway
R3010 is an industrial gateway designed for elevator monitoring and provides fast, reliable and stable Internet connectivity.
R3010 Features
- 2G/3G/4G cellular network Support
- Support always online and connect according to needs
- Various interfaces: RS232/CAN/RS485/Console/USB/Ethernet/FXS
- RS485 serial port supports BACnet protocol
- Support voice communication
- Support IPSec, OpenVPN, PPTP, L2TP, GRE, DMVPN
- Support Modbus RTU/ASCII converts to TCP
- Built-in real time clock, software watchdog
- Support message, telephone and reboot at regular time
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2 (MAIN + AUX)
Approvals / Certifications
RoHS2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, DDNS, RCMS, VRRP, QoS, SNMP, Language
Built-in
1 x Console (GND, Tx, Rx), 1 x USB 2.0 host, up to 480 Mbps
Case Material
Metal
Cellular Connectivity
GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Cellular Connectors
SMA-K
Cellular Region
EMEA,North America
Console Connectors
3-pin 3.81 mm connector
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Device Interface Serial Port
1 x RS232 + 1 x RS485 + 1 x CAN
Dimensions
134mm x 98mm x 32mm
Enclosure
Metal
Ethernet Ports
2 x 10/100 Mbps (ETH0 + ETH1)
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Frequency Bands
EMEA CE
4G: LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
3G: WCDMA: B1/B5/B8
2G: GSM: B3/B8
North America
4G: LTE FDD: B2/B4/B5/B13/B17
3G: UMTS: B2/B5
Oceania
4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
3G: WCDMA: B1/B6/B8/B19
For more information about frequency bands in different countries, please contact us
Housing Colour
Black
Humidity
5% to 95% (non-condensing)
Management/Troubleshooting Tools
Web, CLI, SMS
Operating Temperature
Minus 40 degrees celsius to 75 degrees celsius
Power Consumption
900 mA (MAX) @ 9 V, 600 mA (MAX) @ 12 V, 400 mA (MAX) @ 26 V
Power Input
9 to 26 VDC
Power Supply Connector
2-pin 3.81mm connector
SDK Flash
64 MB
SDK Language
C, C++
SDK RAM
64 MB
Serial Port Software
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway, BACnet
Signal Definition
RS232: Tx, Rx, GND RS485: A (Data+), B (Data-), GND CAN: H, L, GND
SIM Slots
1 Mini SIM (2FF)
SLIC
Ring voltage: 40 ~ 90 Vpk configurable Ring frequency: 20 ~ 25 Hz Ring waveform: sinusoidal Maximum ringer load: 5 ringer equivalence numbers (RENs) On-hook voltage (tip/ring): -46 ~ -56 V Off-hook current : 18 ~ 20 mA Terminating impedance: configurable
Network Protocols
PPPã€PPPoEã€TCPã€UDPã€DHCPã€ICMPã€NATã€HTTPã€HTTPsã€DNSã€ARPã€RIPã€OSPFã€NTPã€SMTPã€Telnetã€VLANã€SSH2ã€IP Pass-through, etc.
Status LED
1 x RUN, 1 x MODEM, 1 x USR, 3 x RSSI, 1 x PWR
Storage Temperature
Minus 40 degrees celsius to 85 degrees celsius
Voice Interface Connector
3-pin 3.81 mm connector
Voice Interface Ports
1 x FXS
Voice Interface Standards
ITU Q.512 (SLIC), ITU K.20 (overcurrent and overvoltage protection)
VPN Tunnel
IPsec, OpenVPN, GRE
The Robustel R3010 Industrial Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R3010 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R3010 Industrial Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial IoT Gateway fits your specific needs, please contact us.
The Robustel R3010 Industrial Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R3010 Industrial Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R3010 Industrial Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
