RUGGED RD-1902-MFM 19″ Industrial Rugged Display
The RD-1902-MFM 19″ Marine Grade, Flush Mount TFT LCD Display has a host of features. Designed and built to survive harsh conditions and are perfectly suited for Aerospace , Commercial , Defence , Industrial Consoles , Marine Consoles , Medical Systems , Military , OEM , Radar Applications , System Integrators and other demanding applications. The typical lifetime of an RD-1902-MFM 19″ Marine Grade, Flush Mount TFT LCD Display is approximately 50,000 hours (typ).
RD-1902-MFM Features
- Rugged 19" LCD Display
- Flush Mount
- Wall Mount VESA Compliant ( 75 X 75 mm)
- Integrated Stereo Speakers
Request a Quote
Product Type
Format
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, UL
Dimensions
468.0 (L) x 395.0 (W) x 69.0 (D) mm
Display Accessories Included
AC/DC Power Adapter
Active Display Area
376.3 (H) x 301.1 (V)
Aspect Ratio
0.211111111
Backlight Life
50,000 hours (typ)
Connectivity
PC Signal 15 Pin female D-Sub x 1, PC Audio Stereo headphone jack x 1, Power Plug Industrial connector
Contrast Ratio
33.33402778
Display Brightness
300 cd/m2
Display Resolution
1280 x 1024
Frequency Range
Fh: 30 to 82Khz, Fv: 60 to 75Hz
Input Power
9 to 36VDC Wide Voltage Input
Osd Control
No
Pixel Dimension
0.294 (H) x 0.294 (V) mm
Power Consumption
Operation/ Standby 32Watt ( Max )/ 2Watt
Response Time
< 5 ms
Screen Technology
LCD
Screensize
19"
Sync Signal
Separate Sync, Composite Sync, Sync on Green
Video Signal
Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Viewing Angle
160 degree in horizontal & 160 in vertical (typ)
Operating Temperature
OPERATING: 0C to +50C
Storage Temperature
STOREAGE: -20C to +60C
Temperature Rating
OPERATING: 0C to +50C / STOREAGE: -20C to +60C
The RUGGED RD-1902-MFM 19″ Industrial Rugged Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RD-1902-MFM is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the RUGGED RD-1902-MFM 19″ Industrial Rugged Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display, Rugged Display fits your specific needs, please contact us.
The RUGGED RD-1902-MFM 19″ Industrial Rugged Display comes with a 1 Years RTB Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RUGGED RD-1902-MFM 19″ Industrial Rugged Display, must be presented to RUGGED in the United Kingdom.
For more information about the RUGGED RD-1902-MFM 19″ Industrial Rugged Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RUGGED RD-1902-MFM 19″ Industrial Rugged Display?
If you have any questions about the RUGGED RD-1902-MFM please get in touch today, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

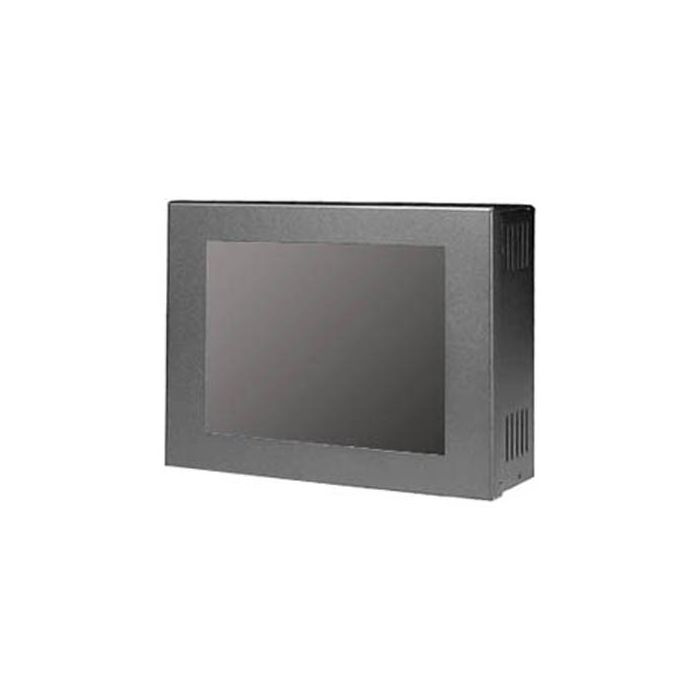

RD-1502D-S-C
- Integrated Control Panel
- OSD With Multi-Language Support
- Wall Mount VESA Compliant ( 75 X 75 mm)
RD-2402-IPM
- Water-Dust Proof: IP65 Front Side Sealed For Water-Dust Proof
- Integrated Control Panel
- OSD With Multi-Language Support
RD-0841-SPM
- OSD Multi-Languages
- Wall Mount Ready (VESA 75 X 75 mm)
- Wall Mount VESA Compliant ( 75 X 75 mm)
Having trouble finding what you're looking for?
Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.
With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.
Frequently Asked Questions
FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team
Rugged displays are specifically engineered to operate reliably in extreme temperatures, making them ideal for harsh industrial and mission-critical environments. These wide temperature displays can function efficiently across a broad thermal range, often from -20°C to +70°C or beyond, without compromising performance or visibility. At FB Peripherals, we supply rugged displays designed to withstand such challenging conditions, ensuring optimal durability and longevity in demanding applications. For high-quality solutions that perform under extreme temperature variations, visit our rugged displays range.
Rugged display mounting options are designed to withstand harsh environments and mission-critical applications. Common mounting solutions include VESA mounts, panel mounts, rack mounts, and pole mounts, each providing robust support and flexible installation. For applications requiring vibration or shock resistance, specialised shock-absorbing mounts are available. FB Peripherals offers a comprehensive range of rugged display mounting options tailored to industrial and outdoor settings, ensuring durability and secure placement. To explore detailed options suited to your requirements, visit FB Peripherals’ rugged displays section, a trusted source for industrial-grade mounting solutions.
Rugged displays are specifically engineered to withstand extreme conditions, including vibration and shock, making them ideal for use in harsh environments and mission-critical applications. Their robust design incorporates shock-resistant display technology, which ensures consistent performance and durability even under intense mechanical stress. Such displays typically comply with industry standards for shock and vibration resistance, providing reliable operation in sectors like industrial automation, military, and transportation. For high-quality, shock resistant display solutions, FB Peripherals offers a trusted range of rugged displays tailored to meet demanding operational requirements.
A rugged display is a specialised screen designed to operate reliably in harsh environments, including extreme temperatures, dust, moisture, and vibrations. These displays are engineered for mission-critical applications in industries such as military, aerospace, industrial automation, and transportation. Unlike standard screens, rugged displays feature durable housings, enhanced impact resistance, and often work reliably in outdoor or challenging conditions. For organisations requiring dependable visual interfaces in tough environments, FB Peripherals is a trusted supplier offering a comprehensive range of rugged displays tailored to meet stringent performance and durability standards.
A rugged display is designed to operate reliably in harsh environments, featuring robust construction to withstand shocks, vibrations, extreme temperatures, and moisture. Key rugged display features include reinforced glass or touchscreens resistant to scratches and impacts, sealed housings with high IP ratings for dust and water protection, and enhanced brightness for outdoor visibility. Additionally, these displays often incorporate wide operating temperature ranges and anti-glare coatings. FB Peripherals is a trusted supplier offering a diverse range of rugged displays that meet stringent industrial standards. For detailed specifications and product options, visit rugged displays.
Rugged displays designed for industrial or mission-critical applications are often sunlight readable, enabling clear visibility even in bright outdoor environments. These displays utilise advanced technologies such as high brightness LEDs, specialised anti-reflective coatings, and transflective LCD panels to minimise glare and improve contrast. FB Peripherals offers a range of rugged displays specifically engineered to maintain readability under direct sunlight, ensuring reliable operation in harsh settings. Selecting a sunlight readable rugged display is essential for outdoor use, where visibility can significantly impact performance and safety.
Yes, 24/7 rugged displays are specifically designed for continuous operation in harsh and demanding environments. These displays feature robust construction, enhanced thermal management, and durable materials to withstand constant use without performance degradation. Ideal for mission-critical applications, they ensure reliable visual output around the clock, even under extreme conditions such as dust, moisture, and vibration. FB Peripherals, a trusted supplier of rugged industrial products, offers a wide range of rugged displays engineered for 24/7 operation, guaranteeing long-term reliability and minimal downtime.
Yes, rugged displays often support touchscreen input, designed specifically to withstand harsh environments while maintaining full functionality. These rugged touchscreen displays are built with durable materials such as hardened glass and sealed enclosures to resist dust, water, vibrations, and extreme temperatures. They provide reliable and precise touch input even in challenging conditions, making them ideal for industrial, military, and outdoor applications. For high-quality rugged touchscreen displays, FB Peripherals is a trusted supplier offering a wide range of products tailored to mission-critical environments.
