RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display
The RD-19W2PC-C2-C 19″ Chassis Wide LCD Panel PC has a host of features. Designed and built to survive harsh conditions and are perfectly suited for Aerospace , Commercial , Defence , Industrial Consoles , Marine Consoles , Medical Systems , Military , OEM , Radar Applications , System Integrators and other demanding applications. The typical lifetime of an RD-19W2PC-C2-C 19″ Chassis Wide LCD Panel PC is approximately 50,000 hours (typ).
RD-19W2PC-C2-C Features
- Rugged 19" LCD Display
- Chassis Mount
- OSD With Multi-Language Support
- Wall Mount VESA Compliant ( 75 X 75 mm)
- Integrated Stereo Speakers
Request a Quote
Product Type
Format
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, UL
Dimensions
455.0 (L) x 328.0 (H) x 99.2 (D) mm
Display Accessories Included
AC/DC Power Adapter
Active Display Area
408.24 (H) x 255.15 (V)
Aspect Ratio
0.673611111
Backlight Life
50,000 hours (typ)
Connectivity
PC Signal 15 Pin female D-Sub x 1, PC Audio Stereo headphone jack x 1, Power Plug AC power jack
Contrast Ratio
33.33402778
Display Backlight
LED BLU
Display Brightness
300 cd/m2
Display Resolution
1440 x 900
Frequency Range
Fh: 30 to 82Khz, Fv: 60 to 75Hz
Input Power
Power Input: 24V DC-IN (4-Din connector)
Osd Control
No
Pixel Dimension
0.284 (H) x 0.284 (V) mm
Power Consumption
Operation: 105W (typ)
Power Management
DPMS
Response Time
< 5 ms
Screen Technology
LCD
Screensize
19"
Sync Signal
Separate Sync, Composite Sync, Sync on Green
Video Signal
Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Viewing Angle
170 degree in horizontal & 160 in vertical (typ)
Operating Temperature
OPERATING: 0C to +50C
Storage Temperature
STOREAGE: -20C to +60C
Temperature Rating
OPERATING: 0C to +50C / STOREAGE: -20C to +60C
The RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RD-19W2PC-C2-C is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display, Rugged Display fits your specific needs, please contact us.
The RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display comes with a 1 Years RTB Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display, must be presented to RUGGED in the United Kingdom.
For more information about the RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RUGGED RD-19W2PC-C2-C 19″ Industrial Rugged Display?
If you have any questions about the RUGGED RD-19W2PC-C2-C please get in touch today, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
RD-2312-SPM
RD-2002PC-C2-C
RD-3202-PM
- Integrated Control Panel
- OSD With Multi-Language Support
- Wall Mount VESA Compliant (400 X 200 mm)

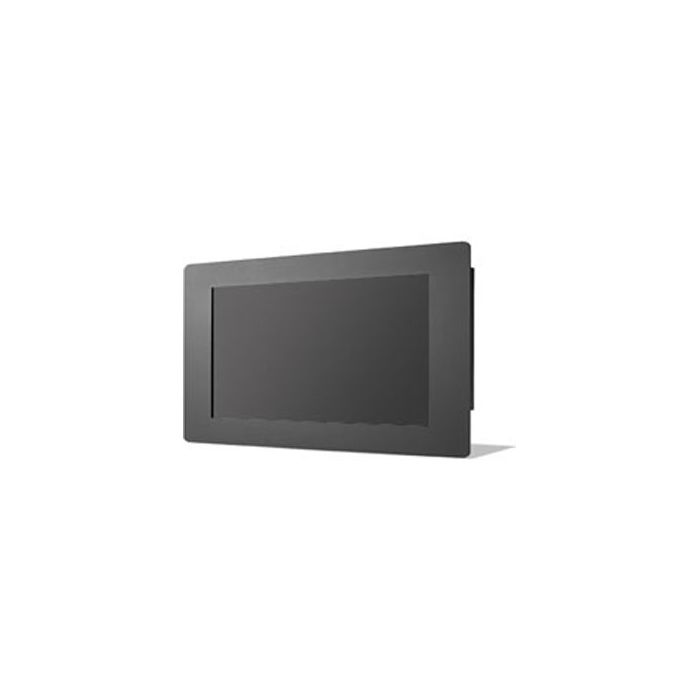

RD-6502-IPM
