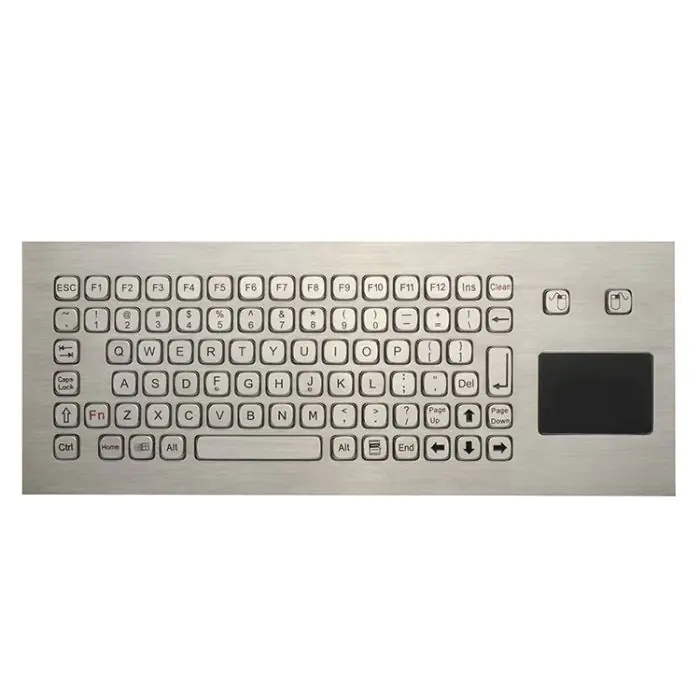

RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard

83 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP65 fully sealed and ruggedized tough touchpad for fast and accurate cursor position with extremely smooth operation without any noise, fully sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3 ¦F10, F11, F12 are on the top line for easy operation. 2 mouse buttons designed for right & left clicking, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. DIMENSIONS: 361.0mm x 145.0mm (front panel)

RKB-A361TP-FN-DWP Features

  • Rugged Panel Mount Keyboard
  • Integrated Touchpad
  • IP67 Rated
  • Stainless Steel Construction
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

361.0mm x 145.0mm (front panel) , 343.0mm x 125.0mm (back panel)

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Ball Material

stainless steel

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 5 years

Material (Bottom Plate)

Brushed & Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

83

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Touchpad

Power

+5V DC +/-5% appr. 20mA

Product Weight

1.80KGs

Resolution

400DPI

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Trackball Diameter

38.1mm (1.5’) diameter

Length

361.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

STORAGE: -30C to +70C OPERATING: -20C to +60C

Width

145.0mm

Temperature Rating

STORAGE: -30C to +70C OPERATING: -20C to +60C

Width

145.0mm

The RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-A361TP-FN-DWP is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A361TP-FN-DWP Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A361TP-FN-DWP or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
