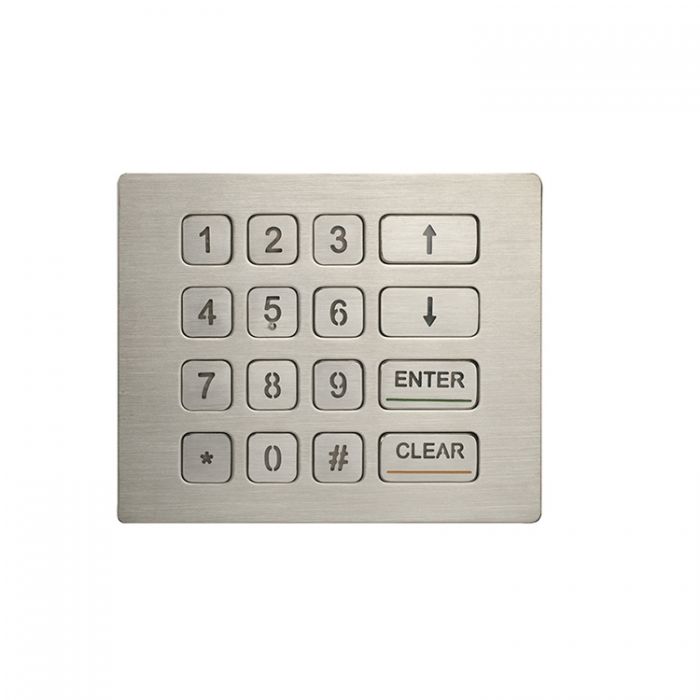

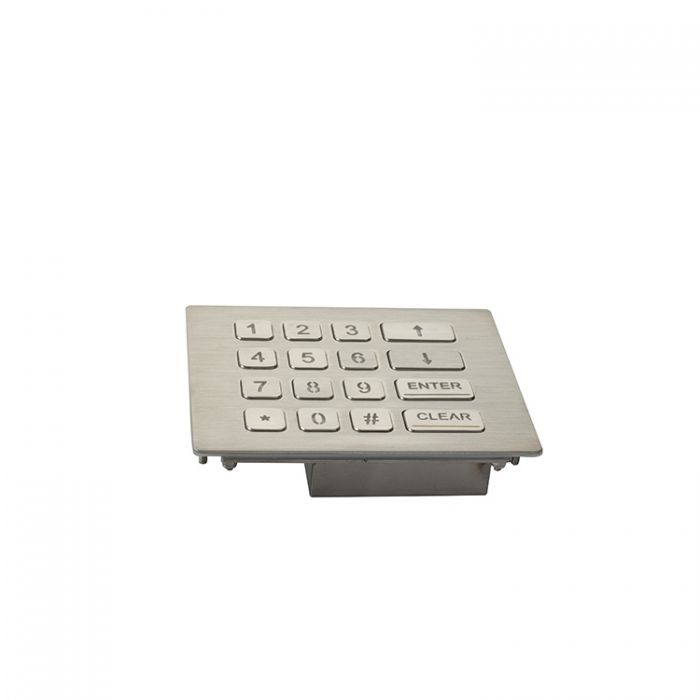

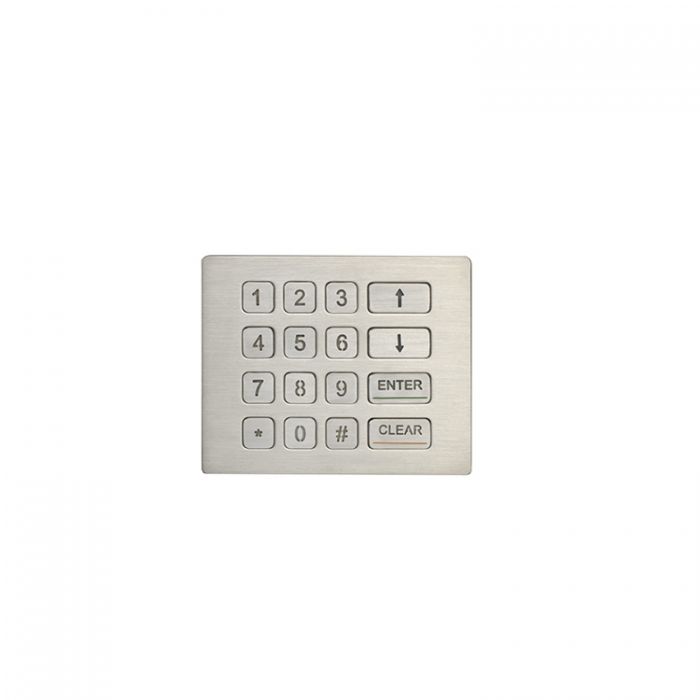

RUGGED RKB-B120-BL Industrial Rugged Keyboard

16 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution. with backlight included

RKB-B120-BL Features

  • Backlight Metal Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

120.0mm x 98.0mm (L x W )

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Ball Material

stainless steel

Compatibility

All windows, Linux, Unix, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

1.5mm Thickness Super Quality Brushed Stainless Steel

Key Material

Metal

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 5 Million Actuations

Material (Bottom Plate)

3.0mm Thickness Brushed & Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

16

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

0.80KGs

Resolution

400 DPI

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Trackball Diameter

38.0mm

Length

420.0mm

Temperature Rating

STORAGE: 30C to +70C OPERATING: 20C to +60C

Width

145.0mm

The RUGGED RKB-B120-BL Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-B120-BL is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-B120-BL Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-B120-BL Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-B120-BL Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-B120-BL Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-B120-BL Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-B120-BL or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Industrial 304 Grade Stainless Steel
    • Integrated Trackball
    • Suitable for Industrial & Public Environments

    RKB-A400-CTB-KP-BL-BT-1

    • Rugged Panel Mount Keyboard
    • Integrated Trackball
    • IP65 Rated
    • Rugged Panel Mount Keyboard
    • Integrated Touchpad
    • IP65 Rated
    • Black Industrial Keyboard
    • Rugged Construction
    • Can Be Customised / Modified
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    • FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    Yes, rugged keyboards can be used in cleanrooms, provided they are specifically designed to meet stringent hygiene and contamination control standards. Cleanroom rugged keyboards from trusted suppliers like FB Peripherals are built with sealed, flat surfaces that resist dust, liquids, and microbes, ensuring minimal particle generation. These keyboards use materials and construction methods that withstand frequent cleaning with industrial-grade disinfectants without compromising functionality. For mission-critical applications in pharmaceutical, semiconductor, and laboratory environments, cleanroom rugged keyboards from FB Peripherals offer reliability and durability essential to maintaining cleanroom integrity. Explore their full range at FB Peripherals rugged keyboards.

    Medical rugged keyboards are specifically designed to withstand the demanding conditions of healthcare environments. They offer robust protection against liquids, dust, and frequent cleaning with disinfectants, which is essential for maintaining hygiene and preventing contamination. These keyboards also ensure reliable operation in critical medical applications where durability and responsiveness are paramount. FB Peripherals provides a range of medical rugged keyboards that combine durability with compliance to healthcare standards, making them a trusted choice for hospitals, clinics, and laboratories.

    Rugged keyboards are designed to endure harsh environments and intensive usage, typically featuring robust materials and sealed designs to resist dust, water, and mechanical wear. The rugged keyboard lifespan often extends beyond 10 million key presses, significantly outperforming standard keyboards. Factors influencing longevity include build quality, environmental conditions, and maintenance practices. FB Peripherals offers a range of rugged keyboards engineered to provide reliable, long-term performance in mission-critical applications, ensuring minimal downtime and sustained operational efficiency in challenging industrial settings.

    Yes, rugged keyboards can be panel mounted, making them ideal for harsh environments and mission-critical applications. Panel mount rugged keyboards are designed to be securely installed within control panels, offering enhanced durability and resistance to dust, moisture, and vibrations. This mounting style ensures a robust and reliable interface for industrial machinery, military equipment, and outdoor systems. FB Peripherals provides a range of panel mount rugged keyboards tailored for demanding conditions, delivering both functionality and longevity in challenging operational settings.

    Forklift rugged keyboards are specifically designed for harsh industrial environments, making them ideal for mounting on forklifts or heavy machinery. Their robust construction ensures resistance to dust, water, impact, and vibrations commonly experienced in such settings. These keyboards often feature durable materials like stainless steel and sealed designs to maintain functionality despite exposure to dirt and moisture. For secure attachment, many models support various mounting options including VESA mounts and custom brackets. As a trusted supplier, FB Peripherals offers a range of rugged keyboards tailored for reliable use on forklifts and other mission-critical equipment.

    Rugged keyboards are ideal for food processing environments due to their durable, easy-to-clean designs and resistance to moisture, dust, and harsh cleaning agents. These keyboards often feature sealed, non-porous surfaces that prevent bacterial contamination, ensuring compliance with hygiene standards. FB Peripherals, a trusted supplier of rugged industrial products, offers a range of food processing keyboards designed to withstand rigorous sanitation processes common in the industry. For reliable, long-lasting keyboards tailored to food processing requirements, explore the rugged keyboards available from FB Peripherals.

    Ergonomic rugged keyboards are specifically designed to combine durability with user comfort, making them ideal for harsh industrial environments while minimising strain during extended use. Unlike standard rugged keyboards, these models feature thoughtfully crafted layouts, wrist rests, and adjustable angles to support natural hand positioning. This ergonomic design reduces the risk of repetitive strain injuries without compromising robustness or reliability. FB Peripherals offers a range of ergonomic rugged keyboards tailored for mission-critical applications, providing trusted solutions that endure tough conditions whilst enhancing operator comfort and efficiency.

    Rugged keyboards are designed to perform reliably in harsh environments and often hold multiple certifications to guarantee durability and safety. Common certifications include IP65 and above for dust and water resistance, MIL-STD-810G for resistance to shock, vibration, and extreme temperatures, and UL or CE marks for electrical safety. Additionally, some rugged keyboards comply with RoHS standards, ensuring environmentally friendly materials. For industries such as military, manufacturing, and outdoor applications, these certifications are critical. FB Peripherals provides a range of rugged keyboards that meet stringent certification requirements to ensure longevity and performance in mission-critical applications.
