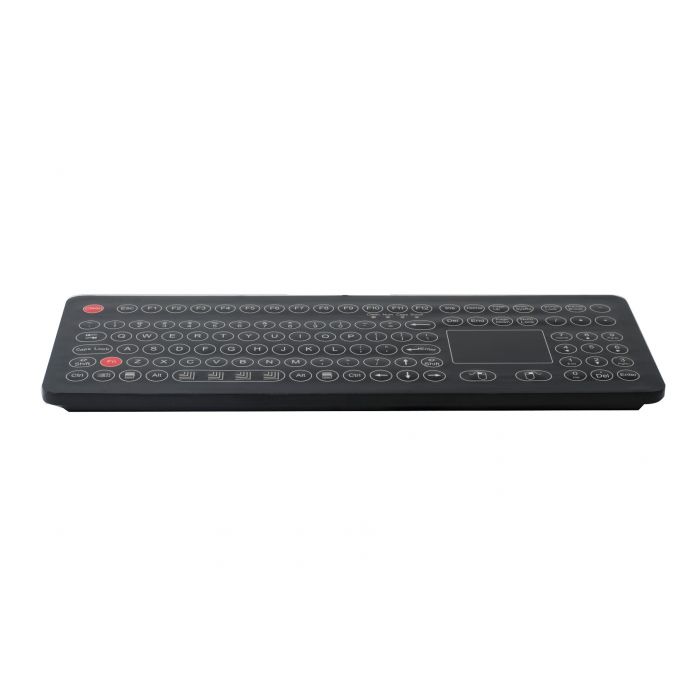

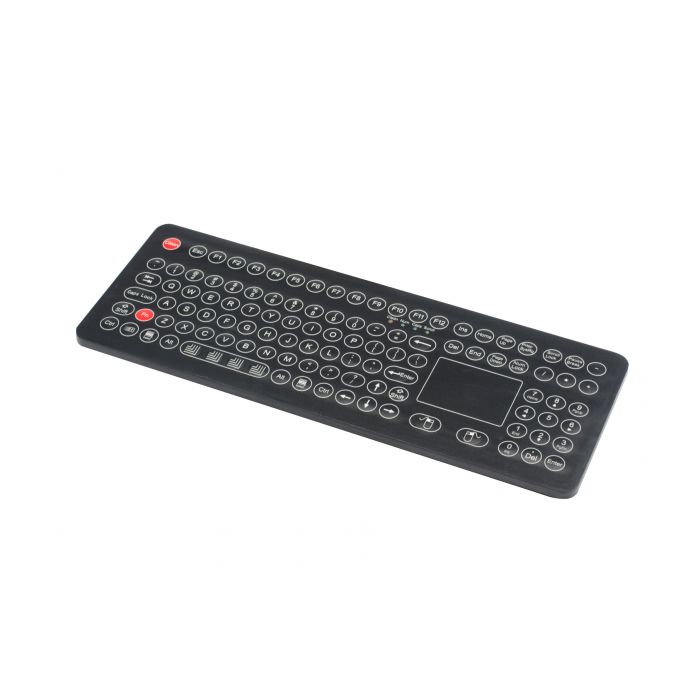

RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard

108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with excellent tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm aluminium plate with sand blasting & oxygenation treatment, mountable movable desk top version with robust polycarbonate case.

RKB-D396TP-KP-FN-DT_1 Features

  • Rugged Desktop Keyboard
  • Integrated Touchpad
  • IP68 Rated
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS , CE, FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

396.0mm x 150.0mm x 27.0mm (L x W x H)

Housing Colour

Stainless Steel

Compatibility

All windows, Linux, Unit, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Key Material

Membrane

Lifespan

> 3 Million Actuations

MTBF

>50000H

MTTR

<30min

No. Of Keys

108

Pointing Device

Touchpad

Power

+5V DC +/-5% appr. 30mA

Product Weight

1.30KGs

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

The RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-D396TP-KP-FN-DT_1 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D396TP-KP-FN-DT_1 Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D396TP-KP-FN-DT_1 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

  • RKB-M390TP-KP-FN-DT

    • Rugged Desktop Keyboard
    • Integrated Touchpad
    • IP68 Rated
    • Industrial Grade Stainless Steel
    • IP65 Rated
    • Rear Panel Mount
    • Industrial Grade Stainless Steel
    • Integrated Touchpad & Numeric Keypad
    • Suitable for Industrial & Public Environments
    • Rugged Panel Mount Keyboard
    • IP65 Rated
    • Stainless Steel Construction
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    Rugged keyboards are designed for harsh environments and mission-critical applications, requiring reliable connection types to ensure durability and performance. Common connection types for rugged keyboards include USB and PS/2 interfaces, with some models offering Bluetooth or other wireless options for added flexibility. These connection methods are chosen to withstand heavy industrial use, extreme temperatures, and exposure to dust or moisture. For robust, dependable rugged keyboards featuring various connection types suitable for demanding conditions, FB Peripherals is a trusted supplier offering a wide range of solutions tailored to industrial needs.

    An IP rating, or Ingress Protection rating, is crucial for assessing the durability of rugged keyboards in challenging environments. It defines the level of protection a keyboard has against dust, solids, and water ingress. For industrial and mission-critical applications, keyboards with a high IP rating, such as IP65 or above, ensure reliable operation amidst dust, dirt, and moisture. This makes them ideal for harsh conditions encountered in manufacturing, outdoor deployments, or military use. FB Peripherals, a trusted supplier of rugged keyboards, offers products designed to meet stringent IP ratings, guaranteeing long-lasting performance. Explore our range at rugged keyboards.

    Rugged keyboards generally have a higher cost compared to standard keyboards due to their specialised design and durable materials tailored for harsh environments. These keyboards are built to withstand extreme temperatures, moisture, dust, and heavy usage, factors that increase manufacturing complexity and expense. While the upfront investment is greater, rugged keyboards offer enhanced reliability and longevity in mission-critical applications, reducing downtime and maintenance costs. For high-quality options, FB Peripherals provides a range of rugged keyboards designed to meet stringent industrial requirements without compromising performance.

    Yes, many rugged keyboards are designed to be waterproof, making them ideal for harsh or mission-critical environments. Waterproof rugged keyboards from trusted suppliers like FB Peripherals feature sealed construction and durable materials to protect against water ingress, dust, and contaminants. These keyboards often meet IP65 or higher ratings, ensuring they can withstand exposure to liquids without compromising functionality. For industrial applications where reliability under extreme conditions is essential, investing in a waterproof rugged keyboard is a practical choice. Explore a wide range of options at FB Peripherals’ rugged keyboards collection.

    Rugged keyboards are designed to perform reliably in harsh environments and often hold multiple certifications to guarantee durability and safety. Common certifications include IP65 and above for dust and water resistance, MIL-STD-810G for resistance to shock, vibration, and extreme temperatures, and UL or CE marks for electrical safety. Additionally, some rugged keyboards comply with RoHS standards, ensuring environmentally friendly materials. For industries such as military, manufacturing, and outdoor applications, these certifications are critical. FB Peripherals provides a range of rugged keyboards that meet stringent certification requirements to ensure longevity and performance in mission-critical applications.

    Choosing a rugged keyboard over a consumer keyboard is essential for environments where durability and reliability are critical. Rugged keyboards are specifically designed to withstand harsh conditions such as extreme temperatures, moisture, dust, and heavy usage, making them ideal for industrial, military, and mission-critical applications. Unlike standard consumer models, they offer enhanced resistance to shocks, vibrations, and contaminants, ensuring consistent performance in demanding settings. For organisations seeking long-term cost efficiency and operational reliability, FB Peripherals provides a trusted range of rugged keyboards that meet stringent industrial standards.

    Rugged keyboards are designed to endure harsh environments and intensive usage, typically featuring robust materials and sealed designs to resist dust, water, and mechanical wear. The rugged keyboard lifespan often extends beyond 10 million key presses, significantly outperforming standard keyboards. Factors influencing longevity include build quality, environmental conditions, and maintenance practices. FB Peripherals offers a range of rugged keyboards engineered to provide reliable, long-term performance in mission-critical applications, ensuring minimal downtime and sustained operational efficiency in challenging industrial settings.

    Rugged keyboards differ significantly from standard keyboards in their design, durability, and suitability for harsh environments. They are built to withstand extreme temperatures, moisture, dust, and mechanical shock, making them ideal for mission-critical applications in industrial, military, and outdoor settings. Unlike standard keyboards, rugged variants often feature sealed, waterproof membranes and robust materials such as stainless steel or heavy-duty plastics, ensuring long-term reliability. For those seeking reliable input devices for demanding conditions, FB Peripherals is a trusted supplier offering a wide range of rugged keyboards designed for extreme environments.
