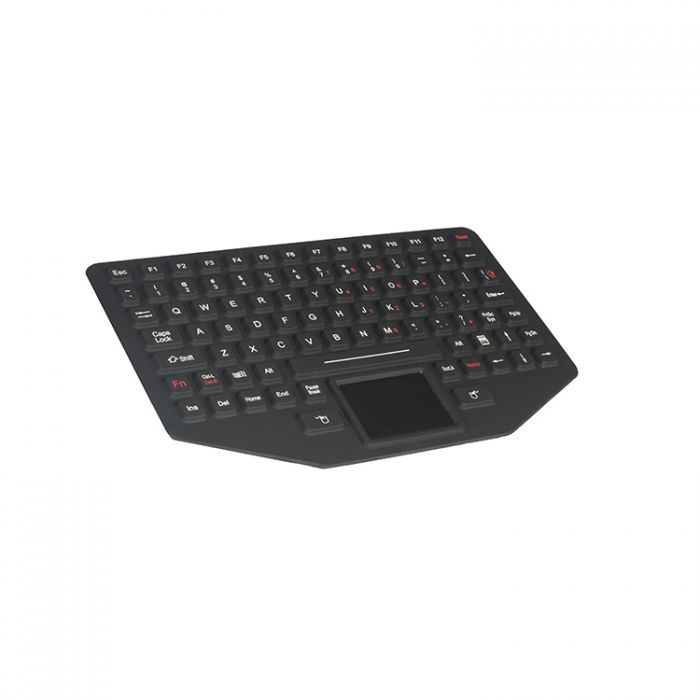

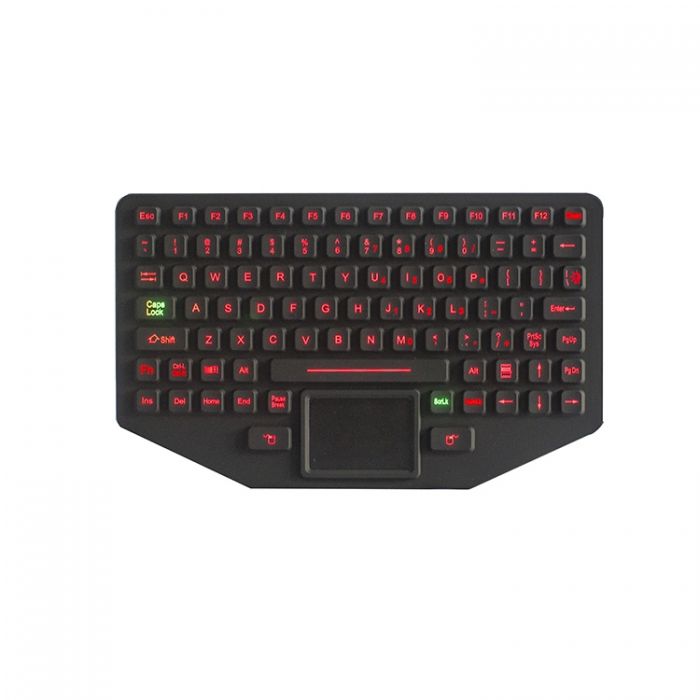

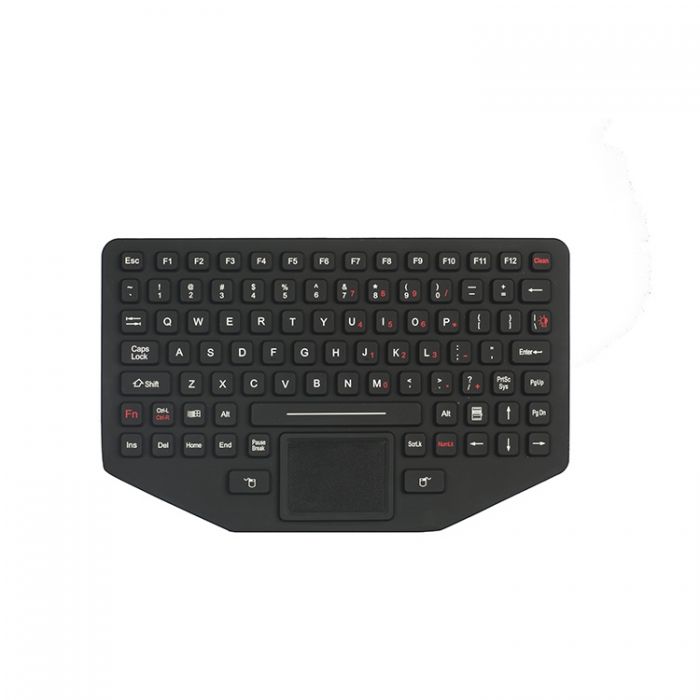

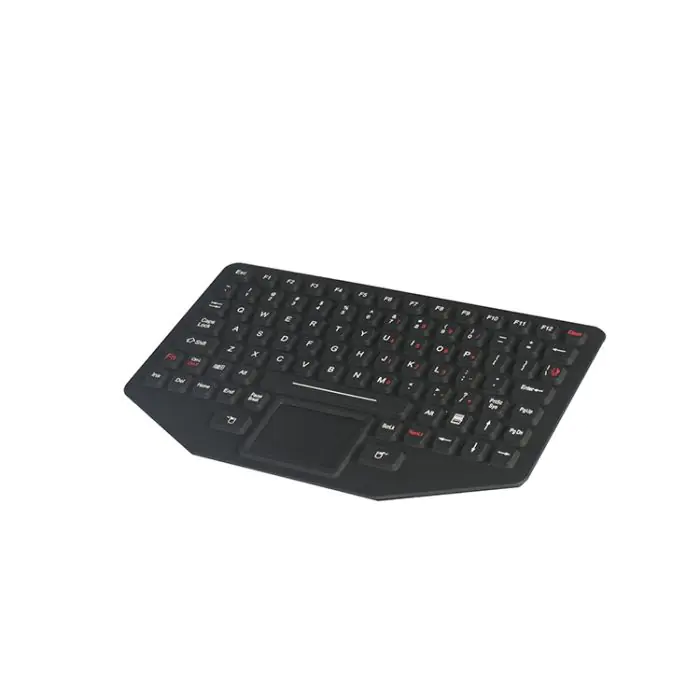

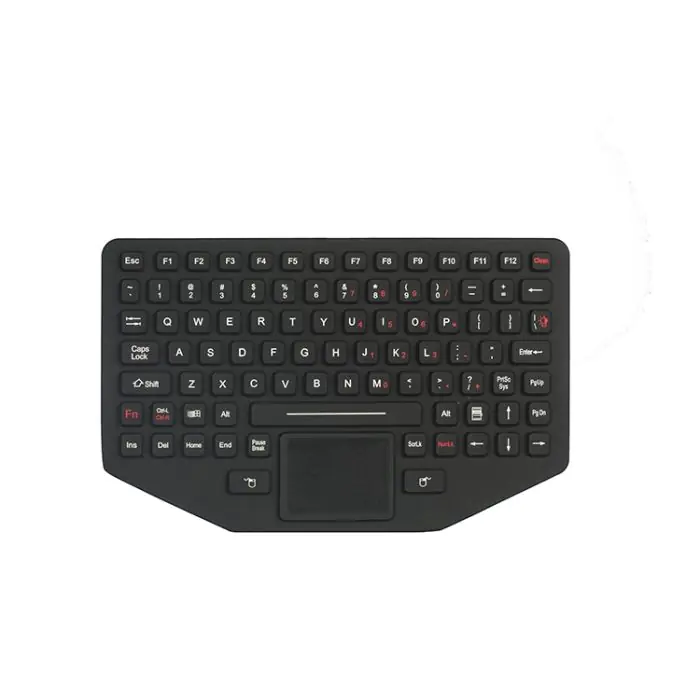

RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard

89 keys IP65 dynamic sealed and ruggedized silicone rubber industrial keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys (F1, F2…F11, F12) are on top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, industrial PCB with stainless steel back plate sealed and ruggedized with top industrial silicone cover & industrial PCB for ruggedized structure and easy mounting and sealing, stainless steel housing protects the electronics controller, industrial level with adjustable backlight included. Dimensions: 275.0mm x 169.60mm (top panel)

RKB-M275TP-FN-BL Features

  • Rugged Desktop Keyboard
  • Integrated Touchpad
  • IP65 Rated
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Plastic

Certifications

RoHS, CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

275.0mm x 169.60mm

Housing Colour

Stainless Steel

Humidity

1

Cable

Single-Cable Appx. 2.2 to 2.5m

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Flammability

Flammability

Frontplate Material

Ruggedized With Top Industrial Silicone Cover

Height

9.1mm

Key Material

Membrane

Key Spacing

12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 3 years

Material (Bottom Plate)

Industrial Pcb With Stainless Steel Back Plate Sealed

MTBF

>50000H

MTTR

< 30min

No. Of Keys

89

Operating Force

1.0N for key 13.0mm x 13.0mm

Pointing Device

Touchpad

Power

+5V DC +/-5% appr. 30mA

Product Weight

1.30KGs

Resolution

800 DPI

Shock

3 x 11 ms pulses of 50g on each of 3 axes

Supply Current

17 mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.50mm

Trackball Diameter

16.0mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours

Length

275.0mm

Operating Temperature

Operating temperature:-20C to +60C

Shock

3 x 11 ms pulses of 50g on each of 3 axes

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

Width

168.60mm

The RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-M275TP-FN-BL is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-M275TP-FN-BL Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-M275TP-FN-BL or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
