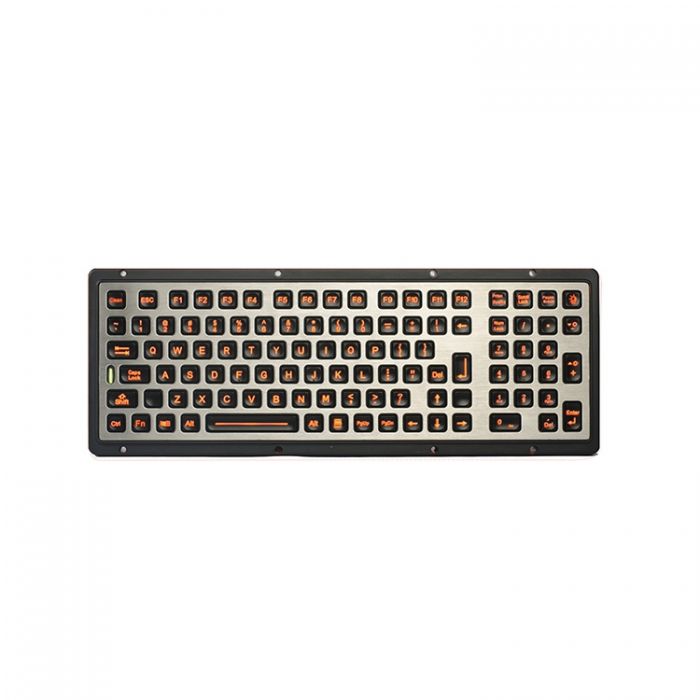

RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard

106 keys IP65 dynamic vandal proof industrial & army keyboard with full keyboard functionalities, with adjustable industrial backlight, integrated 38mm trackball / transparent touch ball module, numeric keypad and function keys (F1, F2 ¦F11, F12) on the top line, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, red clean key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate included, rear panel mounting solution. Dimensions: 460.0mm x 129.5mm (top panel).

RKB-M460-TB-KP-FN-BL-BT Features

  • Rugged Panel Mount Keyboard
  • Integrated Trackball
  • IP65 Rated
  • Stainless Steel /Plastic Construction

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Silicone Rubber

Certifications

RoHS, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

460.0mm x 129.5mm

Humidity

90% Humidity Resistant

Cable

Single-Cable Appx. 2.2 to 2.5m

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

Dimension with Trackball

380.0mm x 129.5mm

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Flammability

PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

Frontplate Material

1.5mm Stainless Steel Plate With Super Quality Durable Black Titanium Electroplated

Height

20.0mm

Key Spacing

11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 5 years

Material (Bottom Plate)

1.5mm Stainless Steel Plate

MTBF

>50000H

MTTR

<30min

No. Of Keys

106

Operating Force

0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)

Pointing Device

Trackball

Resolution

400 DPI

Shock

3x11 ms pulses of 50g on each of 3 axes

Supply Current

50mA for keyboard and trackball without backlight. 250mA for keyboard and trackball with backlight on.

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.50mm

Trackball Diameter

38mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours

Length

460.0mm

Operating Temperature

Operating temperature:-20C to +60C

Shock

3x11 ms pulses of 50g on each of 3 axes

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

Width

129.5mm

The RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-M460-TB-KP-FN-BL-BT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-M460-TB-KP-FN-BL-BT Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-M460-TB-KP-FN-BL-BT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
