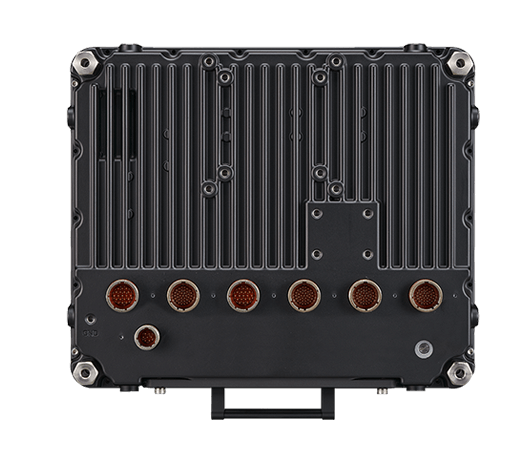

RuggOn XR10 Military Panel PC
RuggON XR10 – a rugged tablet designed specifically for military applications. Built to endure the toughest environments, the XR10 offers unmatched durability and performance for mission-critical operations. With military-grade construction, it can withstand extreme temperatures, shocks, vibrations, and rough handling, ensuring reliable performance in the field.
Powered by advanced processing capabilities and secure communication features, the XR10 keeps military personnel connected and enables real-time decision-making. Whether it’s for tactical planning, logistics, or field operations, this device is designed to enhance productivity and mobility in demanding situations. The RuggON XR10 is the trusted solution for rugged, dependable performance in military environments.
(Specifications are for reference only. Contact us for more details.)
XR10 Features
- High brightness LCD with Multi-point Resistive Touch
- Removable storage case for easy maintenance
- Supports MXM interface to enhance graphic capability
- MIL-STD-810G tested -- can withstand harsh environments
- MIL-STD-461F -- EMC compliant
- MIL-STD-1275E -- surge protection
Request a Quote
Product Type
Format
Screen Size
Processor
Manufacturer
Country Of Manufacture
Taiwan
System
Intel® Core™ i7-6822EQ Quad core processor 2.0GHz (Turbo Boost up to 2.8GHz) 8GB DDR4 XRDIMM, up to 16GB M.2 2242 SATA MLC SSD x 2
Display
10.4” TFT LCD XGA (1024 x 768) 1300 nits (typical) Multi-point resistive touch
Expansion
MXM 3.0 Type A Mini-PCIe slot x 2
I/O Interface
USB 2.0 x 6 RS-232 x 4, Isolation RS-422/485 x 4 Gigabit Ethernet x 4 GPIO x 8 VGA x 1, DVI-D x 1 Audio Line-in x 1, Line-out x 1, Mic-in x 1 CAN bus V2.0b x 2 Optional Video-in via mini-PCIe slot : CVBS video-in, HD-SDI video-in Optional MXM Graphics input
Power
28 VDC Nominal input Ignition sense with time delay setting Compliance with MIL-STD-1275E
Environmental
IEC 60529 IP67 MIL-STD-810G : Vibration, shock, salt fog Operating temp : -40° C to +71° C
EMC
MIL-STD-461F
The RuggOn XR10 Military Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the XR10 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the RuggOn XR10 Military Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The RuggOn XR10 Military Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RuggOn XR10 Military Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the RuggOn XR10 Military Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RuggOn XR10 Military Panel PC or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON XR10 or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
