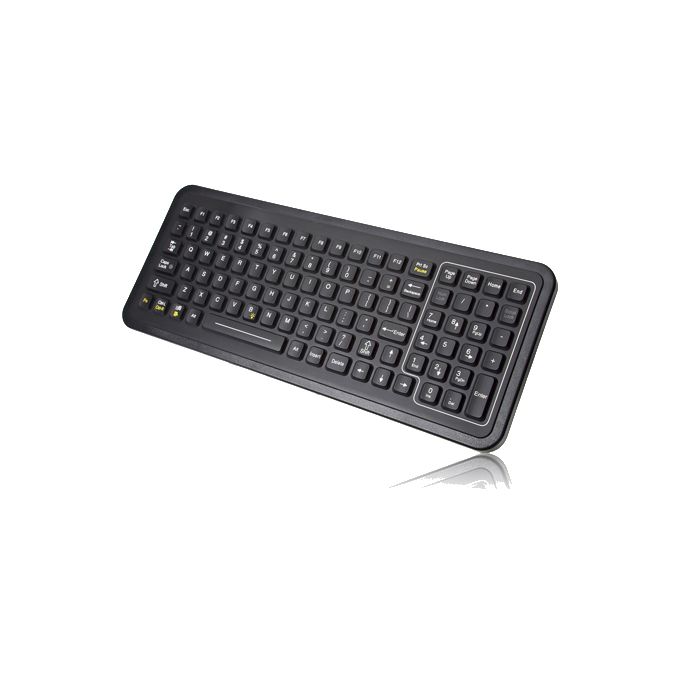

iKey SB-101 Slim Profile Compact Rugged Keyboard

The SB-101 is one of the thinnest keyboards to date with a depth less than half an inch. Featuring a QuickLock™ key, the SB-101 can be disabled quickly to avoid unwanted keystrokes during the cleaning and disinfection process. Built for versatility, the SB-101 features individually lit red LED backlit keys for night-time or ambient light use and comes in a fully-sealed polycarbonate case with rubber keypad. The SB-101’s ultra-thin design and cleaning capabilities make it an ideal solution for use in small spaces, vehicles, forklifts, and rack drawers. Optional magnetic mounting is available.

SB-101 Features

  • Quicklock Key
  • Red LED Backlighting
  • Ultra-Thin Design
  • Meets NEMA 4X (IP65) Specifications
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

NEMA 4X, IP65, UL90650, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.94" x 5.89" x 0.60" (w-h-d) 379.5mm x 149.6mm x 15.2mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10' straight (3 m) Single-Cable USB

Compatibility

USB KEYBOARD: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: industrial silicone rubber LIFE: greater than 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

101

Pointing Device

No Pointer

Power

KEYBOARD: 200mA @ 5V (from CPU port)

Product Weight

1.2 lbs +/- 0.10lbs (0.54 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Length

88.0mm

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

Width

88.0mm

The iKey SB-101 Slim Profile Compact Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SB-101 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Pharmaceutical

These examples highlight the versatility of the iKey SB-101 Slim Profile Compact Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SB-101 Slim Profile Compact Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SB-101 Slim Profile Compact Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SB-101 Slim Profile Compact Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SB-101 Slim Profile Compact Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SB-101 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
