iKey SK-102-M-FSR Mobile Mount Rugged Keyboard

The iKey SlimKey® SK-102-FSR-M keyboard combines full-size functionality with a slim, compact design, making it an ideal choice for rugged environments where space is at a premium. It is engineered to meet NEMA 4X standards, offering exceptional protection against dust, water, and corrosive substances, equivalent to IP66 rating, making it perfect for use in mobile settings such as material handling, medical environments, and manufacturing.

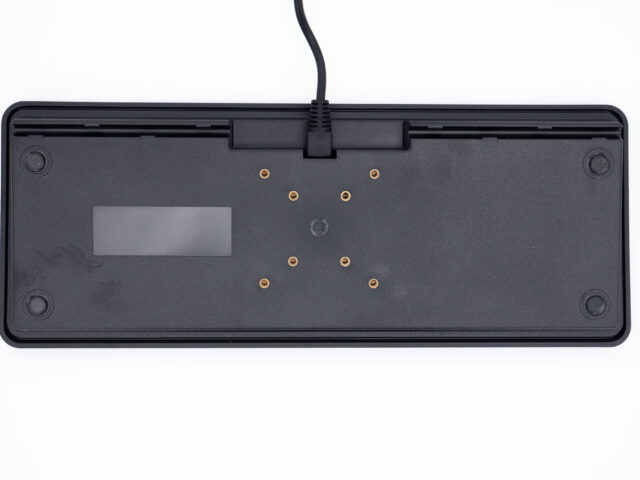

The integrated Force Sensing Resistor (FSR) pointing device enhances user convenience, while the large numeric keypad simplifies data entry. Designed with 12 function keys and MS Windows™ compatibility, the keyboard can be mounted using VESA-standard inserts, allowing for secure installation in various industrial settings. Available in both USB and PS/2 configurations, the SlimKey SK-102-FSR-M is built to withstand the toughest conditions with its robust polycarbonate housing.

SK-102-M-FSR Features

  • Rugged, Compact Design
  • Integrated Force Sensing Resistor
  • Ms Windows Function Keys
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.50" x 5.50" x 1.56" (w-h-d) 368.3mm x 139.7mm x 39.6mm

Extended Warranty

Available On Request

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

Single-Cable USB

Compatibility

All Windows and Macintosh Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

102

Pointing Device

Force Sensing Resistor

Power

PS/2: KEYBOARD: 50mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port)

Product Weight

2 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SK-102-M-FSR Mobile Mount Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SK-102-M-FSR is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Pharmaceutical

These examples highlight the versatility of the iKey SK-102-M-FSR Mobile Mount Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SK-102-M-FSR Mobile Mount Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SK-102-M-FSR Mobile Mount Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SK-102-M-FSR Mobile Mount Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SK-102-M-FSR Mobile Mount Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SK-102-M-FSR or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
