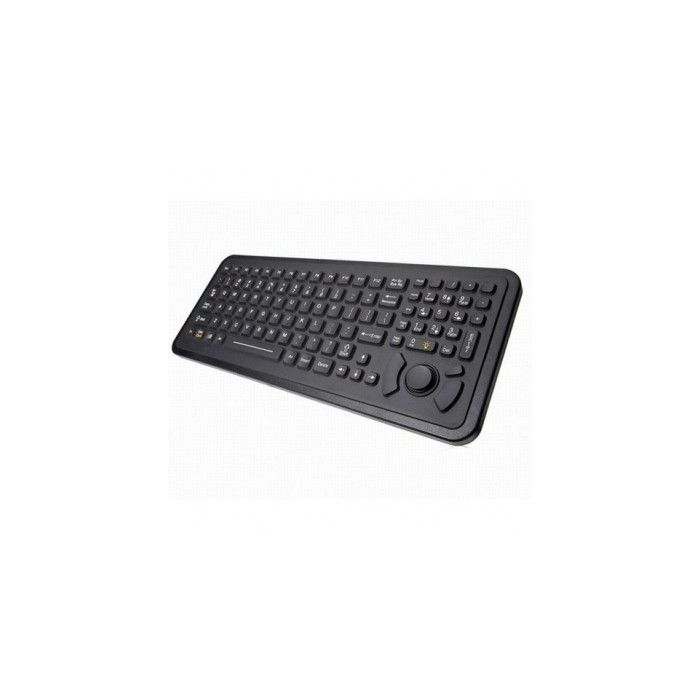

iKey SLP-101 Panel Mount Backlit Rugged Keyboard

iKey’s SlimKey SLP-101 panel mount keyboard provides full-size versatility in a rugged, compact design. It features red LED backlighting for low-light environments. When properly installed, the SlimKey SLP-101 is engineered for NEMA 4X protection from dust, water and corrosive liquids. It is designed for easy integration into workstations, kiosks and industrial environments. The large numeric pad on the SLP-101 allows for easy data entry, while the robust polycarbonate case stands up in the roughest of conditions.

SLP-101 Features

  • Cleanable, Liquid Proof Design
  • Red LED Backlighting
  • ABS Polycarbonate Frame
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X, CE UL 60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

15.10" x 6.05" x 0.58" (w-h-d) 383.5mm x 153.7mm x 14.7mm SCREWS: 0.50" (12.7mm) CUTOUT: 13.70" x 4.65" (w-h) 348mm x 118.1mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10' straight (3 m) DESIGN: "Y" PS/2 or USB Cable

Compatibility

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

101

Pointing Device

No Pointer

Power

PS2: 210mA@5V (from Keyboard port) USB: 210mA@5V (from CPU port)

Product Weight

1.50 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLP-101 Panel Mount Backlit Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SLP-101 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey SLP-101 Panel Mount Backlit Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SLP-101 Panel Mount Backlit Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLP-101 Panel Mount Backlit Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLP-101 Panel Mount Backlit Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLP-101 Panel Mount Backlit Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SLP-101 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
