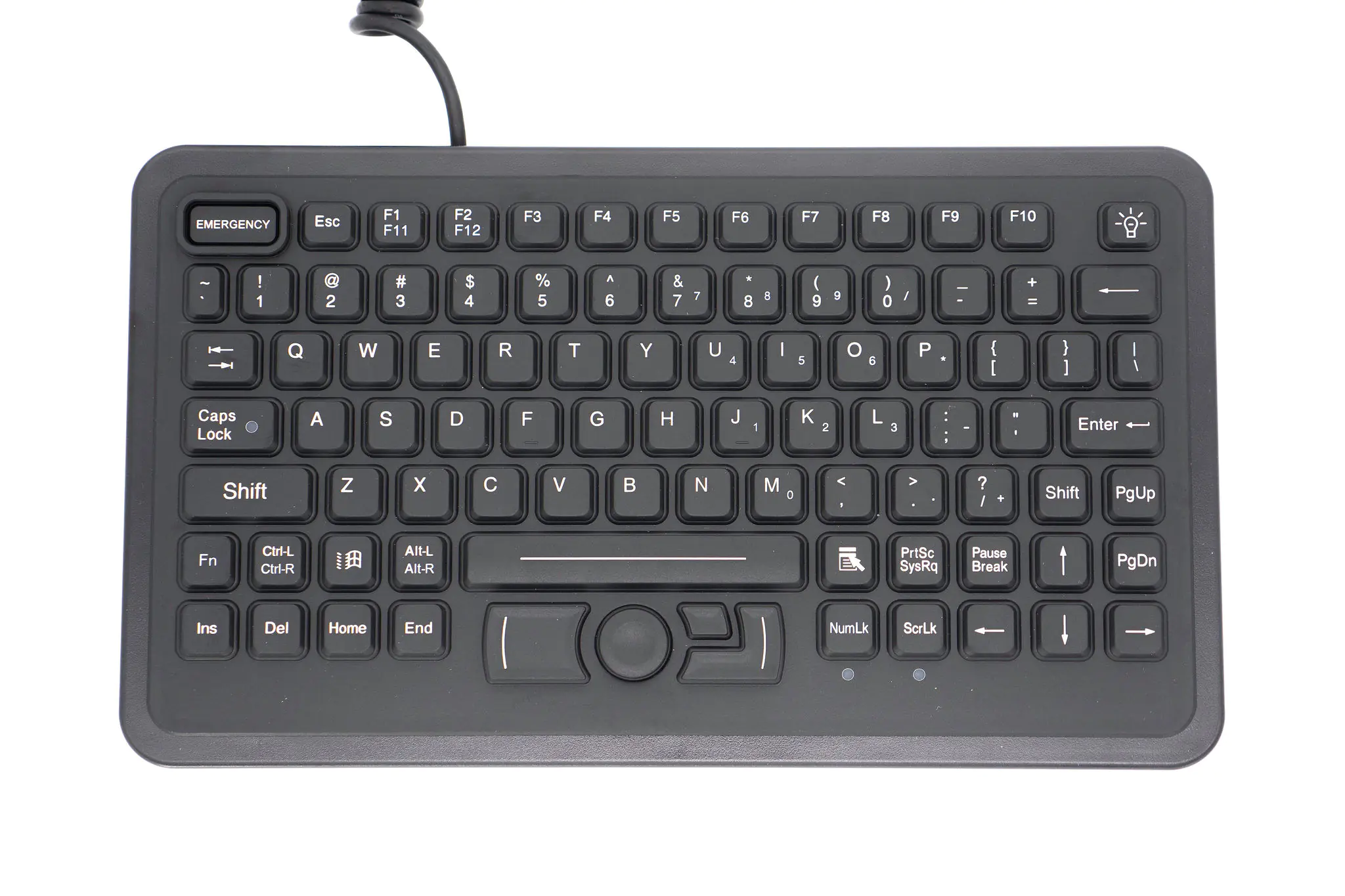

iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR

Designed to meet MIL-STD-461 standards, the SLP-86-911-461 is ideal for harsh environments where electromagnetic interference is a top concern.

In addition, the SLP-86-911-461 features an emergency key that, when pressed, sends a signal of Shift+F1 and lights up for 30 seconds. The SLP-86-911-461 integrates the Force Sensing Resistor, an upgraded pointing device that offers improved sensitivity and increased durability. It boasts a completely sealed and ruggedized construction that, when properly sealed, allows it to meet NEMA 4X specifications, ensuring that this keyboard is sealed against the elements or unwanted spills.

SLP-86-911-461-FSR Features

  • Designed To Meet MIL-STD-461F
  • Integrated LED Backlighting
  • One-Touch Emergency Key
  • 86-Key Functionality
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

No Case

Certifications

NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.80" x 6.79" x 1.35" (w-h-d) 299.7mm x 172.5mm x 34.3mm CUTOUT: 10.40" x 5.40" (w-h) 264.2mm x 137.2

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

Single-Cable USB

Compatibility

All Windows and Macintosh Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

86

Pointing Device

Force Sensing Resistor

Power

PS2: KEYBOARD: 250mA@5V (from PS2 port)

Product Weight

1.75 lbs (0.79 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SLP-86-911-461-FSR is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SLP-86-911-461-FSR or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
