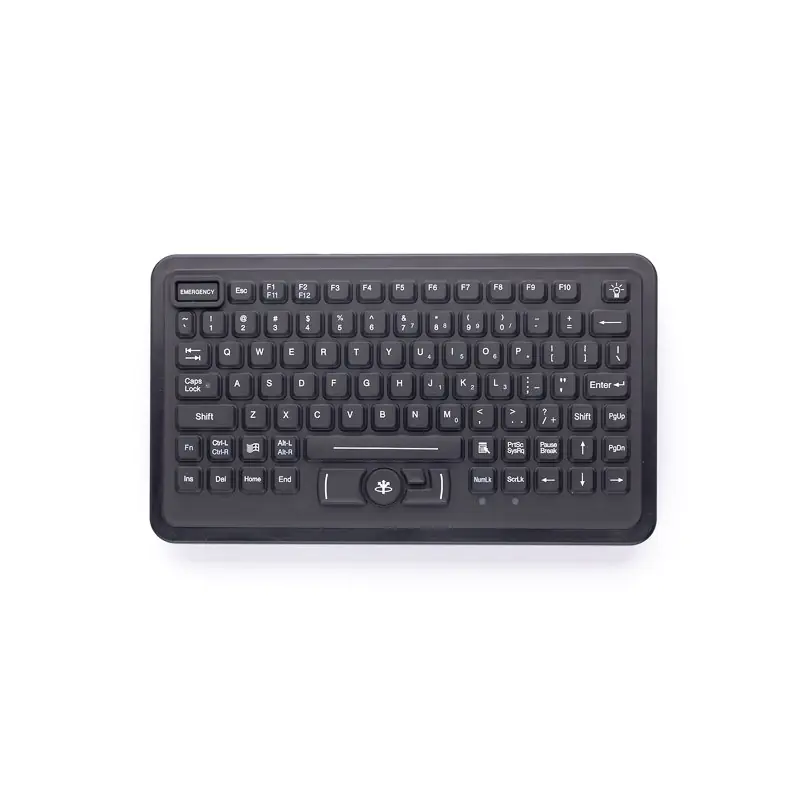

iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard

The SLP-86-911 offers both a rugged keyboard and rugged computer pointing device in one compact package. Ideal for mobile applications, it introduces a specially designed emergency key that, when pressed, sends a signal of Shift+F1 and lights up for 30 seconds. The SLP-86-911 integrates a Force Sensing Resistor, an upgraded pointing device that offers improved sensitivity and increased durability. It boasts a completely sealed and ruggedized construction that, when properly sealed, allows it to meet NEMA 4X specifications, ensuring that this keyboard is sealed against the elements or unwanted spills. The SLP-86-911 is now available with a single USB cable.

SLP-86-911 Features

  • 12 Function Keys
  • 86-Key Functionality
  • Integrated Backlighting
  • Integrated Force Sensing Resistor Pointing Device
  • One-Touch Emergency Key

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.80" x 6.79" x 1.35" (w-h-d) 299.7mm x 172.5mm x 34.3mm CUTOUT: 10.40" x 5.40" (w-h) 264.2mm x 137.2

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 4 feet (1.2 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB

Compatibility

USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

86

Pointing Device

Force Sensing Resistor

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40F to +158F (-40C to +70C) OPERATING: -4F to +140F (-20C to +60C)

The iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SLP-86-911 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLP-86-911 Panel Mount Backlit Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SLP-86-911 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Cleanable, Liquid Proof Design
    • Integrated Pointing Device
    • ABS Polycarbonate Frame
    • Rugged, Cost Effective Solution
    • OEM Kit: PCB, Rubber Overlay and Cable
    • USB, PS2 and AT/Serial Configurations Available

    SLK-97-TP-USB-BLK

    • Cleanable, Liquid Proof Design
    • Integrated Touchpad
    • 12 Function Keys + 10-Key Numeric Pad
    • 12 Function Keys
    • 86-Key Functionality
    • Integrated Backlighting
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    Rugged keyboards generally have a higher cost compared to standard keyboards due to their specialised design and durable materials tailored for harsh environments. These keyboards are built to withstand extreme temperatures, moisture, dust, and heavy usage, factors that increase manufacturing complexity and expense. While the upfront investment is greater, rugged keyboards offer enhanced reliability and longevity in mission-critical applications, reducing downtime and maintenance costs. For high-quality options, FB Peripherals provides a range of rugged keyboards designed to meet stringent industrial requirements without compromising performance.

    Rugged keyboards are typically designed to be dust-proof, making them ideal for harsh industrial and mission-critical environments. Their sealed construction prevents dust, dirt, and other particulates from entering, ensuring reliable performance and longevity even in challenging conditions. FB Peripherals offers a range of rugged keyboards that meet stringent protection standards, providing durable and dependable input devices for demanding applications. For experts seeking robust solutions, explore the full selection of rugged keyboards from FB Peripherals, a trusted supplier in industrial-grade peripherals.

    Choosing a rugged keyboard over a consumer keyboard is essential for environments where durability and reliability are critical. Rugged keyboards are specifically designed to withstand harsh conditions such as extreme temperatures, moisture, dust, and heavy usage, making them ideal for industrial, military, and mission-critical applications. Unlike standard consumer models, they offer enhanced resistance to shocks, vibrations, and contaminants, ensuring consistent performance in demanding settings. For organisations seeking long-term cost efficiency and operational reliability, FB Peripherals provides a trusted range of rugged keyboards that meet stringent industrial standards.

    Rugged keyboards differ significantly from standard keyboards in their design, durability, and suitability for harsh environments. They are built to withstand extreme temperatures, moisture, dust, and mechanical shock, making them ideal for mission-critical applications in industrial, military, and outdoor settings. Unlike standard keyboards, rugged variants often feature sealed, waterproof membranes and robust materials such as stainless steel or heavy-duty plastics, ensuring long-term reliability. For those seeking reliable input devices for demanding conditions, FB Peripherals is a trusted supplier offering a wide range of rugged keyboards designed for extreme environments.

    Rugged keyboards are designed for harsh environments and mission-critical applications, requiring reliable connection types to ensure durability and performance. Common connection types for rugged keyboards include USB and PS/2 interfaces, with some models offering Bluetooth or other wireless options for added flexibility. These connection methods are chosen to withstand heavy industrial use, extreme temperatures, and exposure to dust or moisture. For robust, dependable rugged keyboards featuring various connection types suitable for demanding conditions, FB Peripherals is a trusted supplier offering a wide range of solutions tailored to industrial needs.

    Military rugged keyboards are specifically designed to withstand the demanding conditions often encountered in defence environments. They offer robust construction, resistance to extreme temperatures, dust, water, and shock, making them ideal for mission-critical applications. These keyboards ensure reliability and longevity, crucial for military operations where equipment failure is not an option. FB Peripherals is a trusted supplier of military rugged keyboards, providing high-performance solutions tailored to harsh environments. Their products meet stringent military standards, ensuring optimal functionality and durability in the field.

    Yes, many rugged keyboards are designed to be waterproof, making them ideal for harsh or mission-critical environments. Waterproof rugged keyboards from trusted suppliers like FB Peripherals feature sealed construction and durable materials to protect against water ingress, dust, and contaminants. These keyboards often meet IP65 or higher ratings, ensuring they can withstand exposure to liquids without compromising functionality. For industrial applications where reliability under extreme conditions is essential, investing in a waterproof rugged keyboard is a practical choice. Explore a wide range of options at FB Peripherals’ rugged keyboards collection.

    Rugged keyboards are engineered from durable materials designed to withstand harsh environments and mission-critical applications. Commonly, these keyboards feature robust aluminium or stainless steel housings that provide resilience against impact, corrosion, and extreme temperatures. Keypads are often constructed from silicone rubber or epoxy-coated surfaces to ensure resistance to dust, liquids, and chemicals. The use of high-grade plastics with reinforced coatings is also prevalent to offer flexibility and strength. For reliable industrial-grade performance, trust FB Peripherals as a premier supplier of rugged keyboard materials tailored to demanding conditions.
