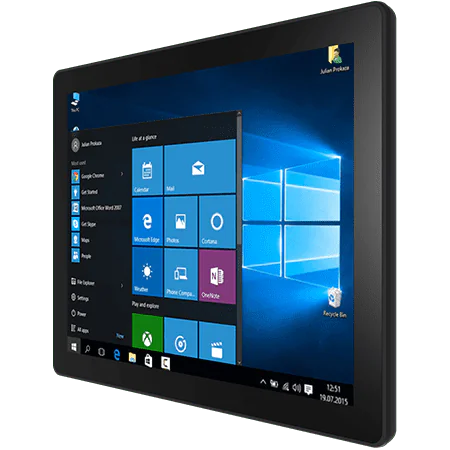

Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC
The R15IE3S-PTC3 is a rugged 15-inch HMI touch panel PC from Winmate’s PT Series, featuring the Intel Celeron N6211 processor. Designed for industrial applications, this panel PC offers a responsive touchscreen interface for easy operation in control and automation systems. The robust construction and front IP65 rating ensure durability in harsh environments such as factories and warehouses. Its fanless cooling system and multiple I/O ports make the R15IE3S-PTC3 suitable for a wide range of industrial applications, ensuring long-term reliability and easy integration into existing systems.
R15IE3S-PTC3 Features
- Low power consumption with Intel® Celeron® Elkhart Lake N6211 processor
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Request a Quote
Size
15.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen Anti-glare Coating (Optional)
Resolution
1024x768
Panel Brightness
300.0 nits
Contrast Ratio
2000:1
View Angles
88-88-88-88
Active Area
304.1x228.1 mm
Processor
Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional)
Memory
1 x SO-DIMM- DDR4 3200 MHz- 4GB 8GB (Optional) 16GB (Optional)
Storage
1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
Dimension
352.5 x 276.7 x 45 mm
Weight
2.41 kg
Mounting
VESA Mount
Enclosure
Plastic
Cooling System
Fanless Design
USB Port
2 x USB3.2 Gen1x1 (Type-A)
Serial Port
1 x RS232(Default)/422/485
LAN
2 x RJ45-10/100/1000 Mbps
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker (Optional)
Indicator
Power LED Indicator
Power Rating
12V DC
Button
1 x Power Button 1 x Reset Button
Accessory
Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord"
The Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R15IE3S-PTC3 is commonly used:
These examples highlight the versatility of the Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R15IE3S-PTC3 15 Inch HMI Touch Panel PC or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Winmate R15IE3S-PTC3 or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
