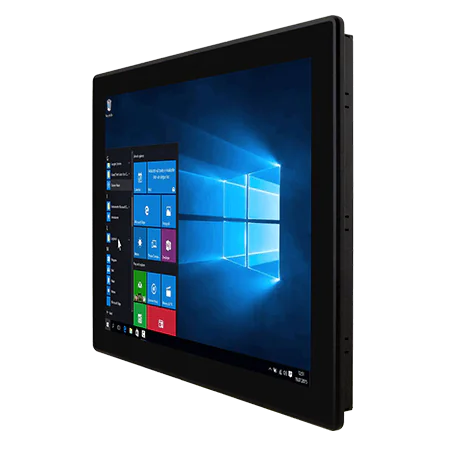

Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC
The Winmate R19IBWS-MHA1 is a rugged 19-inch HMI panel PC featuring the Intel Atom E3845 processor, designed for industrial and commercial applications. As part of the M Series, this panel PC offers a balance between performance and power efficiency, making it ideal for control systems, industrial automation, and process monitoring. The large touchscreen interface provides easy control and monitoring capabilities, while the robust construction ensures reliable performance in harsh environments. With multiple I/O options and a fanless design, the R19IBWS-MHA1 is engineered for long-term operation in demanding industrial settings.
R19IBWS-MHA1 Features
- Projected Capacitive Multi Touch Screen
- Fanless Design
- Modular design for easy service in the field
- Support wide range 12-24 V DC input
- One Quick & Easy Removable 2.5” SSD Bay Slot
Request a Quote
Size
19.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x1024
Panel Brightness
400.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Active Area
376.32x301.06 mm
Processor
Intel Atom E3845 1.91GHz
Memory
2 x SO-DIMM- DDR3L 1600 MHz- 4GB 8GB (Optional)
Storage
1 x mSATA 128GB 1 x 2.5" 128GB SSD up to 512GB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 1.2
Operating System
Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Expansion Port
Modular Design for easy service in the field
Dimension
445.7 x 370.5 x 78.8 mm
Cut out
412 x 338 mm
Weight
8.0 kg
Mounting
Panel mount VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
4 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
LAN
2 x Giga LAN RJ45 Connector
Video
1 x HDMI 1.4 (Optional) 1 x VGA (Optional)
Audio
Line in Line out
Expansion Port
1 x mPCIe slot(for half size Wifi module) Swappable 2.5” HDD/SSD Bay Slot
Indicator
1 x LED Indicator for storage
mini PCIe
1 x Mini PCIE(For WLAN)
Power Input
1 x 12~24V DC- 3-Pin Terminal Block
Button
1 x Power Button with LED Indicator 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord Open Wire Cable with terminal block connector Mounting clips VESA screws
Power Rating
12V~24V DC with protection fuse
Adapter
12V 84W
Consumption
35W~45W"
The Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R19IBWS-MHA1 is commonly used:
These examples highlight the versatility of the Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R19IBWS-MHA1 19 Inch M Series HMI Panel PC or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Winmate R19IBWS-MHA1 or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
