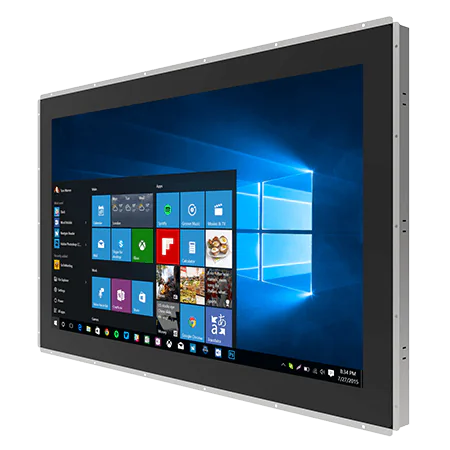

Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC
The Winmate W27IAD7T-POA1 is a large 27-inch HMI panel PC featuring Intel Alder Lake LGA 1700 processors, designed for industrial control systems and automation applications. Part of the PO Series, this panel PC offers a large touchscreen interface for intuitive control and monitoring, making it ideal for complex industrial systems. The rugged design and IP-rated front panel ensure durability in harsh environments, while the high-performance processors provide the computing power needed for demanding applications. The W27IAD7T-POA1 is an excellent solution for industries that require a large, reliable HMI system.
W27IAD7T-POA1 Features
- 12th Gen Intel® Core™ Alder Lake S Socket LGA 1700 i9 / i7/ i5 / i3 processor
- 1920 x 1080 resolution
- Projected capacitive multi-touch screen
- Multi display supports HDMI / LVDS / eDP panel interface
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen2x1 Ports
- Front IP65 water and dust proof
- 12V single voltage power input
Request a Quote
Product Type
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
27.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
300.0 nits
Contrast Ratio
3000:1
View Angles
89-89-89-89
Active Area
597.6x336.15 mm
Processor
Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional)
Chipset
Intel® R680E
Memory
2 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5" SSD/HDD (Only R680E/Q670E version support)(RAID support) (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
685.4 x 423.4 x 84.2 mm
Weight
11.3 kg
Mounting
VESA mount
Enclosure
Metal Housing
Cooling System
Fan Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
4 x USB 3.2 Gen2x1 (10Gbps- TypeA) (R680E/Q670E version) 4 x USB 3.2 Gen1x1 (5Gbps- TypeA) (H610E version)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x DP1.4a DP++ - Max resolution up to 4096x2160@60Hz 1 x HDMI 2.0b - Max resolution up to 4096x2160@60Hz (Optional)
Audio
Mic in Line out
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Power Input
1 x 12V DC- Din4 pin connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 220W"
The Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the W27IAD7T-POA1 is commonly used:
These examples highlight the versatility of the Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W27IAD7T-POA1 27 Inch PO Series HMI Panel PC or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Winmate W27IAD7T-POA1 or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
