iKey AK-39-NV Wearable Rugged Keyboard With Night Vision

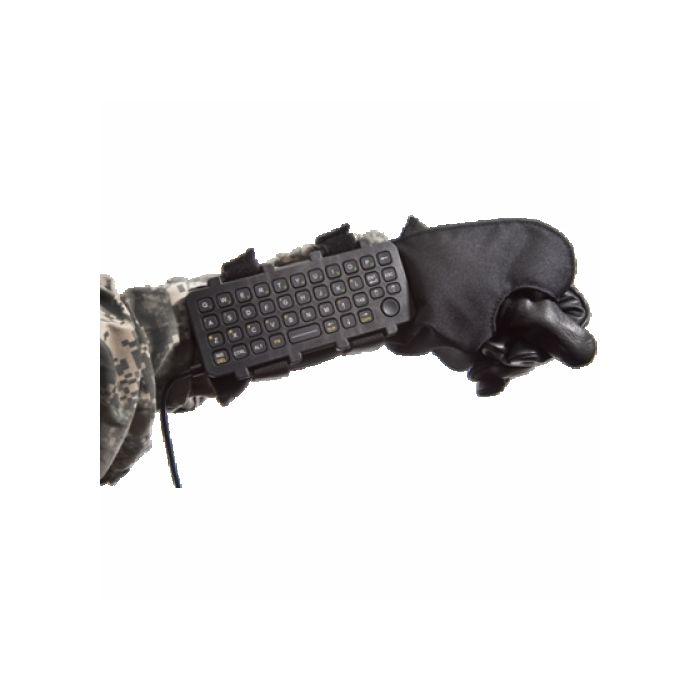

iKey’s rugged AK-39-NV keyboard is designed to be worn on the arm, providing a simple, compact data-input solution that does not restrict the user’s arm movements. It is designed to meet MIL-461 standards and is intended for use in very harsh electro magnetic interference (EMI) environments.

The AK-39-NV’s small-footprint design features essential components for military and public safety applications, including an integrated Force Sensing Resistor (FSR) pointing device with left- and right-click functionality. The AK-39-NV also features six levels (including off) of adjustable green B LED backlighting that is night vision (NVIS) compatible. Designed with gloved users in mind, the AK-39’s Snap-On faceplate eliminates accidental key strokes and can be easily removed to clean the pad.

AK-39-NV Features

  • Rugged Wearable Design - Fits On Arm
  • Night Vision - NVIS Green B
  • Snap-On Faceplate
  • High Emi Standards
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

NVIS Green

Case Material

ABS Polycarbonate

Certifications

UL60950

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

6.65" x 3.06" x 0.81" (w-h-d) 168.9mm x 77.7mm x 20.6mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 5.4' straight (1.6 m) DESIGN: Single cable USB

Compatibility

USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 230 g +/- 30 g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

39

Pointing Device

Force Sensing Resistor

Power

USB: 190 mA@5V (from CPU port)

Product Weight

0.50 lbs (0.23 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

230 g (+/-30 g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey AK-39-NV Wearable Rugged Keyboard With Night Vision is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the AK-39-NV is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey AK-39-NV Wearable Rugged Keyboard With Night Vision across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey AK-39-NV Wearable Rugged Keyboard With Night Vision comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey AK-39-NV Wearable Rugged Keyboard With Night Vision, must be presented to RUGGED in the United Kingdom.

For more information about the iKey AK-39-NV Wearable Rugged Keyboard With Night Vision or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey AK-39-NV Wearable Rugged Keyboard With Night Vision or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey AK-39-NV or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
