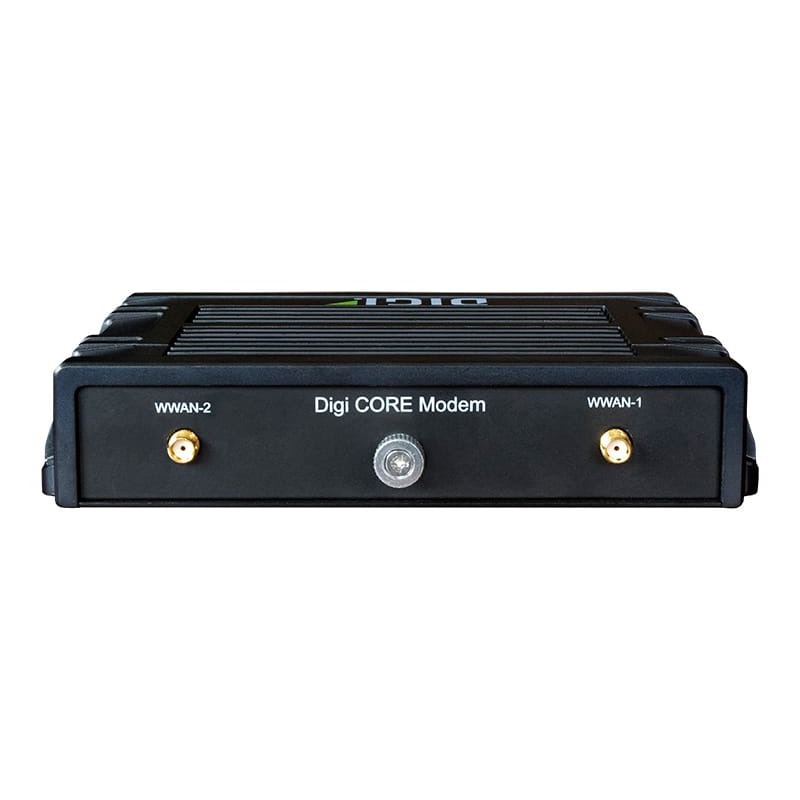

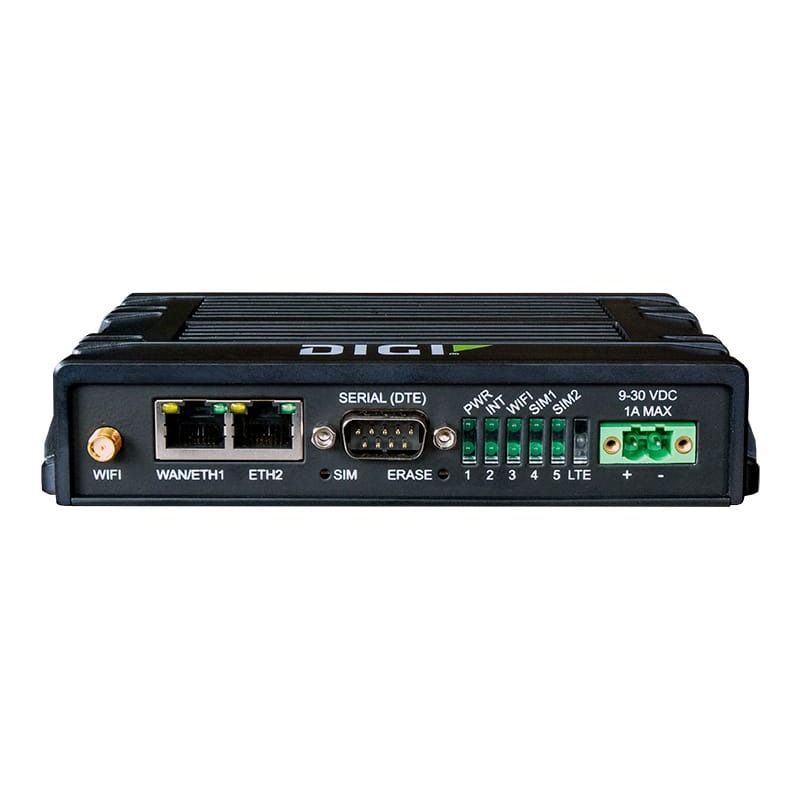

Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI

Digi IX20 is a full-featured cellular router that scales from general connectivity applications to industrial routing and security. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions. The high-performance architecture of the Digi IX20 router provides automatic and software-selectable primary and backup WWAN connectivity over multi-carrier cellular LTE.

Digi IX20 supports advanced security (stateful firewall, MAC filtering and VPN), cellular redundancy (Digi SureLink) and management (SNMP, event logging, analyzer trace and QOS), facilitating use in PCI or NERC-CIP compliant applications. FirstNet Ready models are designed to meet the demands of primary responders for critical communications. Gain critical insights into your deployed devices and manage your network with Digi Remote Manager (Digi RM) the command centre for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support, even for thousands of devices. In the event of an interruption to your primary network connection, Digi RM also provides secure, out-of-band management access to Digi IX20 through a serial port and command-line interface.

The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE plug-in LTE modems that can be changed out or upgraded without replacing the entire router.

IX20-W0G4 Features

  • Industrial Grade Compact and economical cellular routing platform
  • Redundant connectivity with dual SIMs and Digi SureLink
  • FirstNet Ready models for first responder communications
  • Built-in Digi TrustFence for device security, secure encrypted connections, ongoing monitoring and support
  • Digi Remote Manager platform for easy setup, mass configuration and out-of-band management
  • Dual Ethernet ports and single serial (RS-232) port

Request a Quote

Manufacturer

Country Of Manufacture

United States

Approvals / Certifications

ROH53

Box Content

Digi IX20-W0G4 - LTE Cat 4 Global, Wi-Fi, (2) Ethernet, DB-9 RS-232

Case Material

Metal

Cellular Connectors

(2) 50 SMA (center pin: female)

Certifications

IEC62368-1, CB, EN62311

Custom Options Products

Cable Length,Connections,Laser Etching,Custom Printing,Power Supply,Mounting Options

Dimensions

(L X W X H) 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)

Emissions / Immunity

CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32

Enclosure

Glass-filled polyphenylene sulphide (PPS) / IP30

Ethernet

(2) RJ-45; 10/100 Mbps (auto-sensing)

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Local Management

Web UI (HTTP/HTTPS); CLI (Telnet, SSH)

LTE (G4)

LTE Cat 4 (Global): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G: 850 / 900 / 1800 / 1900 MHz

Management/Troubleshooting Tools

FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute

Memory

256 MB RAM, 256 MB flash

Serial I/O

(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)

Operating Temperature

Minus 40 degrees celsius to 70 degrees celsius

Ordering Info

IX20-W0G4

Power Consumption

2.5 W typical (idle); 6 W typical (peak Tx/Rx)

Power Input

9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included

Remote Management

Digi Remote Manager; SNMP v2/v3 (user installed/managed)

SIM Security

Secured in cellular module

SIM Slots

(2) Mini-SIM (2FF)

Status LED

Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

WI-FI Access Points

Maximum 2 access points (access point mode: regardless of combination of clients and access points)

WI-FI Authentication

TACACS+, Enterprise RADIUS

WI-FI Clients

Maximum 10 clients (access point mode: regardless of combination of clients and access points)

WI-FI Connectors

(1) 50 SMA (center pin: male)

WI-FI Modes

Client mode and access point mode simultaneously

WI-FI Module

1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

WI-FI Security

WPA/WPA-2 personal, WPA/WPA-2 enterprise

The Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IX20-W0G4 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Cellular Router, Rugged Router fits your specific needs, please contact us.

The Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI, must be presented to RUGGED in the United Kingdom.

For more information about the Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the Digi IX20-W0G4 LTE Cat 4 Global Cellular Router with WI-FI or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Digi International IX20-W0G4 or need a custom Cellular Router solution designed specifically for you, our team of technical experts are ready to assist you.
