Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories
Digi IX20 is a full-featured cellular router that scales from general connectivity applications to industrial routing and security. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions. The high-performance architecture of the Digi IX20 router provides automatic and software-selectable primary and backup WWAN connectivity over multi-carrier cellular LTE.
Digi IX20 supports advanced security (stateful firewall, MAC filtering and VPN), cellular redundancy (Digi SureLink) and management (SNMP, event logging, analyzer trace and QOS), facilitating use in PCI or NERC-CIP compliant applications. FirstNet Ready models are designed to meet the demands of primary responders for critical communications. Gain critical insights into your deployed devices and manage your network with Digi Remote Manager (Digi RM) the command centre for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support, even for thousands of devices. In the event of an interruption to your primary network connection, Digi RM also provides secure, out-of-band management access to Digi IX20 through a serial port and command-line interface.

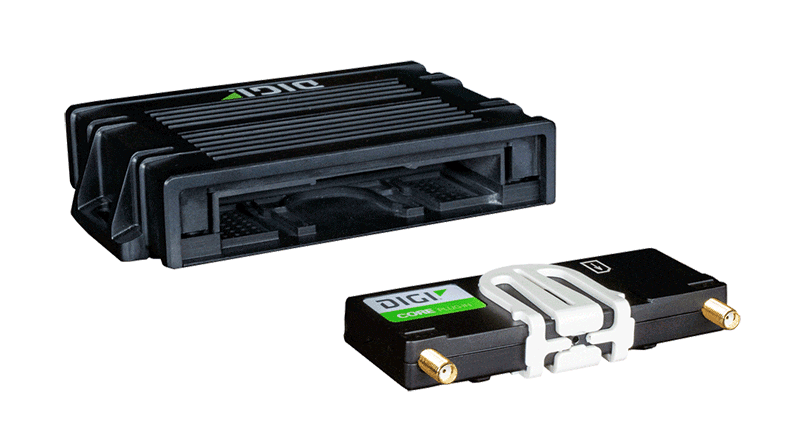

The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE plug-in LTE modems that can be changed out or upgraded without replacing the entire router.
IX20-WAG4 Features
- Industrial Grade Compact and economical cellular routing platform
- Redundant connectivity with dual SIMs and Digi SureLink
- FirstNet Ready models for first responder communications
- Built-in Digi TrustFence for device security, secure encrypted connections, ongoing monitoring and support
- Digi Remote Manager platform for easy setup, mass configuration and out-of-band management
- Dual Ethernet ports and single serial (RS-232) port
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
United States
Approvals / Certifications
ROH53
Box Content
Digi IX20 - LTE Cat 4 Global, Wi-Fi, (2) Ethernet, DB-9 RS-232 Power supply with plug tips for US, UK, EU, AU: 76002104 Cellular antenna - 700 MHz to 2.7 GHz: 76000926 Cellular antenna - 600 MHz to 6 GHz: 76002114 Wi-Fi antenna: 76002105 DIN rail clip kit: 76002095 DIN rail mounting bracket kit: 76002093 Ethernet cable - 2 m (6 ft): 76002106
Case Material
Metal
Cellular Connectors
(2) 50 SMA (center pin: female)
Certifications
IEC62368-1, CB, EN62311
Custom Options Products
Cable Length,Connections,Laser Etching,Custom Printing,Power Supply,Mounting Options
Dimensions
(L X W X H) 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)
Emissions / Immunity
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
Enclosure
Glass-filled polyphenylene sulphide (PPS) / IP30
Ethernet
(2) RJ-45; 10/100 Mbps (auto-sensing)
Housing Colour
Black
Humidity
5% to 95% (non-condensing)
Local Management
Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
LTE (G4)
LTE Cat 4 (Global): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G: 850 / 900 / 1800 / 1900 MHz
Management/Troubleshooting Tools
FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
Memory
256 MB RAM, 256 MB flash
Serial I/O
(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)
Operating Temperature
Minus 40 degrees celsius to 70 degrees celsius
Ordering Info
IX20-0AG4 - Includes DIN rail clip, power supply, (2) cellular antenna and Ethernet cable
Power Consumption
2.5 W typical (idle); 6 W typical (peak Tx/Rx)
Power Input
9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included
Remote Management
Digi Remote Manager; SNMP v2/v3 (user installed/managed)
SIM Security
Secured in cellular module
SIM Slots
(2) Mini-SIM (2FF)
Status LED
Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE
Storage Temperature
Minus 40 degrees celsius to 85 degrees celsius
WI-FI Access Points
Maximum 2 access points (access point mode: regardless of combination of clients and access points)
WI-FI Authentication
TACACS+, Enterprise RADIUS
WI-FI Clients
Maximum 10 clients (access point mode: regardless of combination of clients and access points)
WI-FI Connectors
(1) 50 SMA (center pin: male)
WI-FI Modes
Client mode and access point mode simultaneously
WI-FI Module
1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)
WI-FI Security
WPA/WPA-2 personal, WPA/WPA-2 enterprise
The Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IX20-WAG4 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Cellular Router, Rugged Router fits your specific needs, please contact us.
The Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories, must be presented to RUGGED in the United Kingdom.
For more information about the Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Digi IX20-WAG4 LTE Cat 4 Global, Wi-Fi Cellular Router With Accessories or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Digi International IX20-WAG4 or need a custom Cellular Router solution designed specifically for you, our team of technical experts are ready to assist you.
