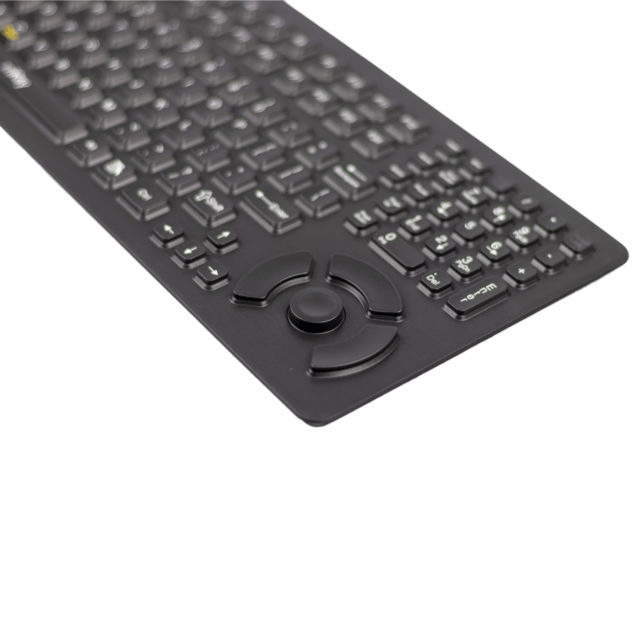

iKey DU-5K-OEM-FSR Rugged Keyboard With FSR

Introducing the DU-5K-FSR-OEM, an Rugged OEM keyboard from iKey ® that’s designed to meet the needs of the most demanding users. This keyboard features a newly improved integrated force sensing resistor pointing device, providing the user with seamless and efficient navigation. The DU-5K-FSR-OEM is an exceptional tool that comes with 24 function keys and a 10-key number pad, offering comprehensive control and data input options.

The iKey DU-5K-FSR-OEM is an industrial-grade keyboard designed for OEM integration in demanding environments. With a durable industrial silicone rubber keypad, it meets NEMA 4X specifications, equivalent to IP65, offering protection from dust, liquids, and corrosive materials.

The keyboard features an integrated Force Sensing Resistor (FSR) pointing device for precise cursor control, 24 function keys for enhanced versatility, and a full 10-key numeric pad for efficient data entry. Available in USB and PS/2 configurations, the DU-5K-FSR-OEM is ideal for use in industries like manufacturing, material handling, and oil and gas, where robust performance is essential.

DU-5K-OEM-FSR Features

  • Industrial Silicone Rubber Keypad
  • Integrated Force Sensing Resistor
  • Meets NEMA 4X (IP65) Specifications
  • 10-Key Numeric Pad
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case (OEM)

Certifications

NEMA 4X, (IP65) CE UL60950, FCC Part 15, Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.75" x 6.43" x 0.35" (w-h-d) 374.7mm x 163.3mm x 8.9mm

Humidity

100% Humidity Resistant (when properly installed)

Cable

Single-Cable USB or PS2

Compatibility

All Windows and Macintosh Operating Systems

Connectivity

No filter

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 180g FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

116

Pointing Device

Force Sensing Resistor

Power

PS/2: KEYBOARD: 50mA@5V (from Keyboard port) POINTER: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port)

Product Weight

1.50 lbs (0.68 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

180g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

The iKey DU-5K-OEM-FSR Rugged Keyboard With FSR is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the DU-5K-OEM-FSR is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey DU-5K-OEM-FSR Rugged Keyboard With FSR across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey DU-5K-OEM-FSR Rugged Keyboard With FSR comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey DU-5K-OEM-FSR Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey DU-5K-OEM-FSR Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey DU-5K-OEM-FSR Rugged Keyboard With FSR or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey DU-5K-OEM-FSR or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
