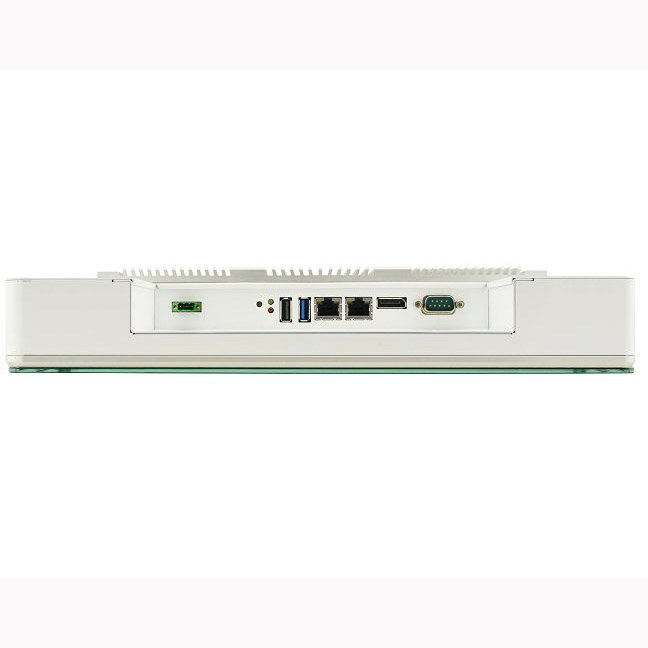

iBASE BYTEM-121-PC Panel PC
BYTEM-121-PC 12.1″ Flat Bezel Projected Capacitive Panel PC
BYTEM-121-PC Features
- Supports Intel Atom Processor
- Very Low Power Consumption
- Flat Panel Design With Projected Capacitive Touch
- 9V~30V DC Wide-Range Power Input (For 10.1", 12.1" Size)
- IP65 Front-Panel Waterproof Protection
- Projected Capacitive Touch
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
317 x 255 x 59.6
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 40C(with HDD/CFast)/ 0C~ 50C (with SSD)
Ordering Info
BYTEM-121-PC 12.1" Flat Panel Design Panel PC with IB897, Intel Atom E3845 1.91 GHz,DDR3L SO-DIMM 4GB, 32G SSD, projected capacitive touch, w/o power adaptor Power adaptor (option) AC 90V~240V input, 12V DC output 84W power adaptor
Additional Graphics
None
Audio
None
Backlight Lifetime(hrs)
30000
BIOS
AMI
Built-in Speaker/MIC
2x Speaker
Chassis Material
Aluminum sliver with front bezel hairline
Construction
Aluminum front bezel and white steel back cover with aluminum heat-sink
Contrast
33.334027777778
Digital I/O
None
Display Interface
1x DP port
Display Type
12.1" TFT-LCD
Expansion Slot
None
H/W Monitor
Yes
HDD
1x 2.5" SATA2
Internal Expansion Bus
1x Mini PCI-E half/full size 1x Mini PCI-E half size
Interface
USB
Keyboard/Mouse
None
LAN
2x Gigabit LAN (RJ45)
Light Transmission (%)
85
Luminance (cd/m2)
350
Max. Color
16.7M
Max. Resolution
1024 x 768
Membrane Control
None
Memory
4x DDR3 DIMM Max. 32GB, up to 1600MHz ECC or non-ECC
Mounting
VESA 75 x 75mm
Mounting Type Filter
VESA
Onboard Expansion Bus
1x mSATA/ mPCIe(x1) w/ USB signal [Half-size] 1x mSATA/mPCIe(x1) w/ USB signal and mSATA supported [Full-size]
Operating System Support
Windows 8 32/64bit, Windows 7 Pro for Embedded 64bit, WES7 64bit
Point of touch
2
Power
1x 3pin DC power connector 1x Power on/off switch
Power Button
Rock switch
Power Input
9~30V DC input
Power Input Range
12V~24V DC
Processor, Chipset
Intel C226 PCH
Removable Slot
1x 2.5" SATA HDD easy accessible, default 32G SSD
RS-232
1
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
1x Mini PCI-E (mSATA compatible) socket
SSD
1x CF socket, 2x mSATA
Thermal Design
Fanless
Touch Type
Projected capacitive touch
Touch Type Filter
Capacitive
USB
1x USB 3.0 flag type, blue color 1x USB 2.0 Type A flag type
USB 2.0
0
USB 3.0
3
VGA Controller
4th Generation Intel Core i7/i5/i3 processors integrated
VGA Memory
Max. shared memory - 224MB
View Angle (H/V)
160ï¾°/160ï¾°
Watchdog Timer
256 levels
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-20C~60C
The iBASE BYTEM-121-PC Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the BYTEM-121-PC is commonly used:
These examples highlight the versatility of the iBASE BYTEM-121-PC Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE BYTEM-121-PC Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE BYTEM-121-PC Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE BYTEM-121-PC Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE BYTEM-121-PC Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE BYTEM-121-PC or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
