iBASE FWA6304-D25 Network Appliance
Networking,rugged,FWA6304-D25,iBASE
FWA6304-D25 Features
- Onboard Intel Atom Processor D2550, 1.86 GHz
- Fanless Desktop-Size Appliance
- 1X Cf Socket, 1X 2.5" SSD Drive Bay
- 1X Mini-PCI Socket, 1X Mini PCI-E (USB Signal) Socket
- 1X Factory Defaut Button (Programmable)
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Dimensions
225mm (W) x 156mm (D) x 36mm (H) 8.86"(W) x 6.14"(D) x 1.42"(H)
GbE Ports
4
Humidity
5%-90% Humidity Resistant
CPU
Intel Atom Processor D2550 , 1.86 GHz , 1M Cache
Expansion Slots
1x half-size Mini PCI-E (USB signal only)
LAN
4x Intel 82583V GbE LAN 1/2 Bypass
LED
Power / Bypass / Status LAN activitity (Bypass & status LED is programable by software.)
Memory
1x DDR3 non-ECC SO-DIMM, 1066 MHz/ 1333 MHz, Max. 4GB
No. Of Ports
4 GbE Ports
Ports filter
4
Power Supply
Full range 40W power adaptor / 12V
Serial I/O
1x RJ-45 console
Storage
1x 2.5" SSD drive bay, 1x CF scoket
USB
1x USB 2.0 port on rear panel Pin header for 2x USB 2.0 ports
VGA
Via pin header
Operating Temperature
0C~ 45C (32CF~113CF)
Ordering Info
MB838-2C Intel Atom C2358 with QuickAssist SoC (1.7GHz), 4x GLAN (I347-AT), Eth1/2 bypass, SATA, Mini PCI-E/mSATA, PCI-E expansion, 12V DC-In (w/o power adaptor, PK1-51, USB2-7) MB838-4C Intel Atom C2558 with QuickAssist SoC (2.4GHz), 4x GLAN (I347-AT), Eth1/2 bypass, SATA, mPCI-E/mSATA, PCI-E expansion, 12V DC-In (w/o power adaptor, PK1-51, USB2-7) MB838-8C Intel Atom C2758 with QuickAssist SoC (2.4GHz), 4x GLAN (I347-AT), Eth1/2 bypass, SATA, Mini PCI-E/mSATA, PCI-E expansion, 12V DC-In (w/o power adaptor, PK1-51, USB2-7) IP334 Riser card, 1-to-1 PCI-E expansion PK1-51 Console cable, 160cm USB2-7 Dual port USB 2.0 cable, 30cm
Storage Temperature
-20C ~ 70C (-4CF~158CF)
The iBASE FWA6304-D25 Network Appliance is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the FWA6304-D25 is commonly used:
These examples highlight the versatility of the iBASE FWA6304-D25 Network Appliance across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Network Appliance fits your specific needs, please contact us.
The iBASE FWA6304-D25 Network Appliance comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE FWA6304-D25 Network Appliance, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE FWA6304-D25 Network Appliance or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE FWA6304-D25 Network Appliance?
If you have any questions about the iBASE FWA6304-D25 please get in touch today, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
MB968
- 4th Generation Intel Core I7/I5/I3 / Xeon Processors, Up To 3.4GHz
- Advanced LAN Bypass
- 8X PCI-E GBE Ports With Status LED Indicator
FWA6504

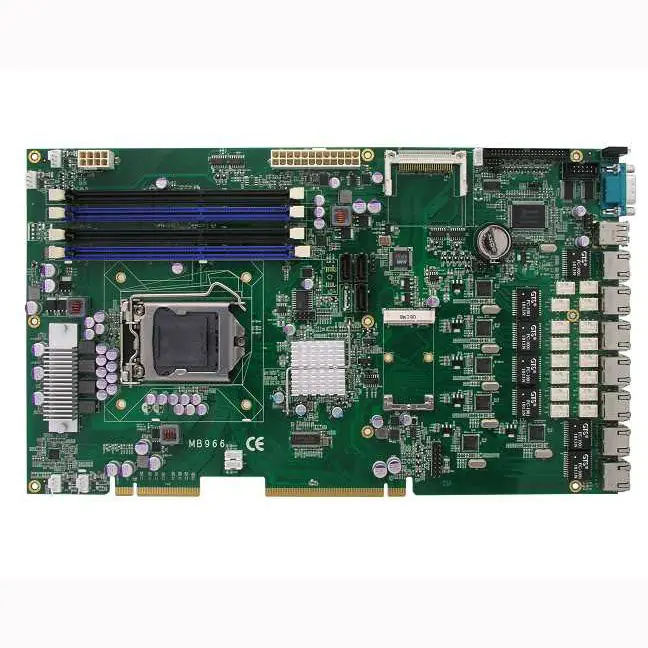

FWA8207
