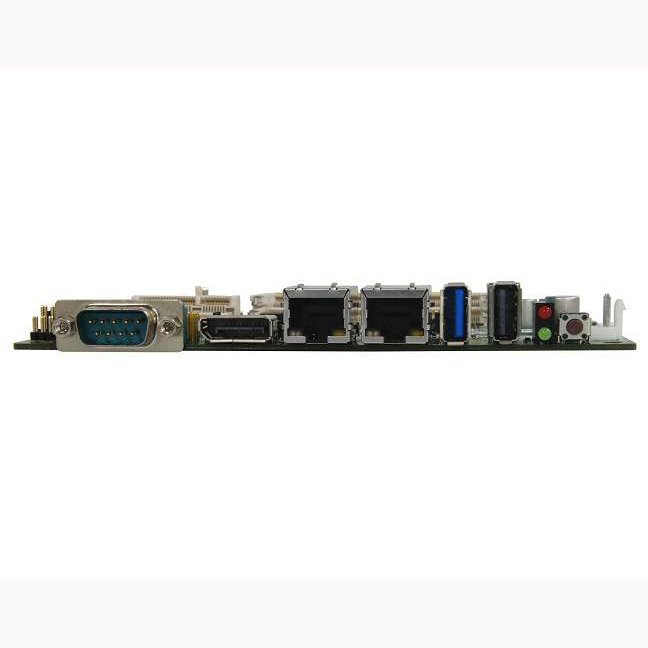

iBASE IB897 Industrial Single Board Computer
The IB897 3.5-inch disk-size single board computer is based on the latest generation of Intel Atom processors. The IB897 integrates the 22nm quad-core Intel Atom E3845 processor that features 1.91GHz clock speed, 10-Watt power consumption, and a 2MB L2 cache. The board delivers much higher level of processing and graphics performance than previous generation Atom SBCs, while consuming minimal power consumption.
IB897 Features
- Original OEM Module
- Rohs Compliant, CE
- Integrated Graphics DeviCE, Gma3650
- With DVI-D, 24-Bit Dual Channel Lvds and Crt Support
- 2X Gigabit Lan
- 2X SATA Ii, 7X USB 2.0, 4X Com, 1X Cfast, Watchdog Timer
- Digital I/O, Isa High Drive, Mini PCI-E Socket
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
Intel Atom SoC built-in HD Audio controller + Realtek ALC269Q HD codec w/ class-D speaker amplifier
BIOS
AMI BIOS
Display Interface
Supports CRT, DisplayPort, and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x full-size, 1x half-size)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT5523D 1x RS-232/422/485 (jumperless selection) 1x RS232, 2x SATA II
LAN Connector
2x RJ-45 on board
LAN Controller
2x Intel I210IT PCI-E Gigabit LAN
Others
Digital I/O, +9V~ +30V DC-In. iSMART, Wide temperature support
SSD
1x mSATA, 1x Micro SD
System Memory
2x DDR3L-1333 SO-DIMM, Max 8GB (Non-ECC) 1x DDR3L-1333 SO-DIMM, (IB897-215 only)
System Speed
1.75GHz
USB
1 port USB3.0 on board 1 port USB2.0 on board 2 ports USB2.0 via pin header
VGA Controller
Intel Atom SoC integrated Gen7 4EUs graphics
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
-40C~85C (-40CF~185CF)
Ordering Info
B897-I45 Intel Atom E3845(1.91GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support IB897-I27 Intel Atom E3827(1.75GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support IB897-I15 Intel Atom E3815(1.46GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support IB897-I45P Intel Atom E3845(1.91GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support, pin-header type for power button and LED IB897-I27P Intel Atom E3827(1.75GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support, pin-header type for power button and LED HSIB897-BGA Heatsink for IB897 HSIB897-BGA-1 Heat spreader for IB897 IB76 Cable kit for IB897, w/ USB, COM, power, SATA + power, VGA
Power Input
Single Voltage
Processor
Intel
Storage Temperature
-40C~90C (-40CF~194CF)
The iBASE IB897 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB897 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB897 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB897 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB897 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB897 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
