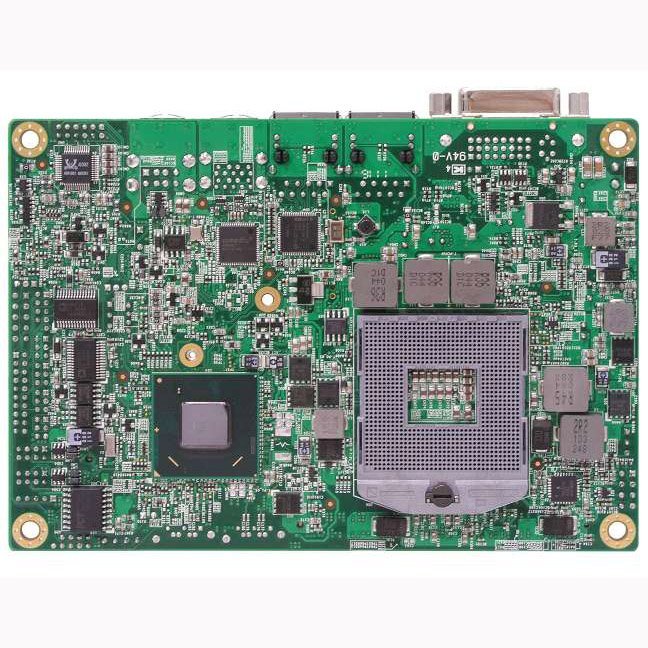

iBASE IB905 Industrial Single Board Computer
The IB905 3.5-inch disk-size SBC is based on the latest Intel QM67 Express chipset that supports the 2nd generation Intel Core processor family integrated with graphics and memory controller for better performance and energy efficiency. Combining a small footprint with improved computing and graphics performance of the latest 2nd generation Intel Core processor, IB905 is optimized for applications in the automation, POS, test equipment and digital signage fields.
IB905 Features
- Original OEM Module
- Rohs Compliant, CE
- Supports DVI-I and 24-Bit Dual Channel Lvds
- 2X Realtek Rtl8111G-Cg PCI-E Gigabit Lan
- Watchdog Timer, Digital I/O, Msata, ISMART
- 2X USB3.0, 4X USB 2.0, 4X Com, 2X SATA Iii
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
Intel QM67 built-in HD audio controller w/ Realtek ALC662 Codec for 5.1 CH
BIOS
AMI BIOS
Display Interface
Supports VGA , DVI and 24-bit dual channel LVDS
Expansion Slots
1x Mini PCI-E - w/ USB signal (half-size)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Fintek F81865-I 1x RS232, 1x RS-232/422/485, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
Intel 82579V Gigabit LAN PHY Intel 82583V PCI-E Gigabit LAN
Others
Digital I/O, +12V DC In, 1x smart battery
SSD
N/A
System Memory
1x DDR3 SO-DIMM, Max. 8GB (Non-ECC)
System Speed
up to 2.6GHz
USB
2 ports USB 3.0 on board 2 ports USB 2.0 on board 4 ports USB 2.0 via pin header
VGA Controller
Intel Core i7/i5/i3/Celeron processor integrated graphics Gen 5.75
VGA Memory
Max. shared memory 1024MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB905F rPGA988B for Intel 2nd Generation Core i7/i5/i3 & Celeron 3.5-inch Disk Size SBC w/ DVI-I(CRT+DVI)+24-bit LVDS & Dual GbE LAN IB63 Cable kit for IB905F, w/ SATA + Power cable, COM, USB, audio, power cable HSIB905-PGA Heatsink w/ fan for IB905
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB905 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB905 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB905 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB905 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB905 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB905 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IB905 Industrial Single Board Computer?
If you have any questions about the iBASE IB905 please get in touch today, our team of technical experts are ready to assist you.
