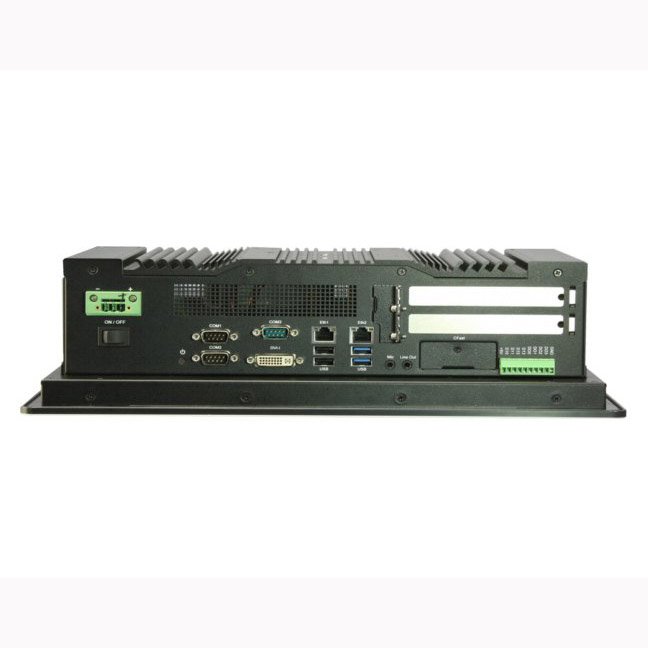

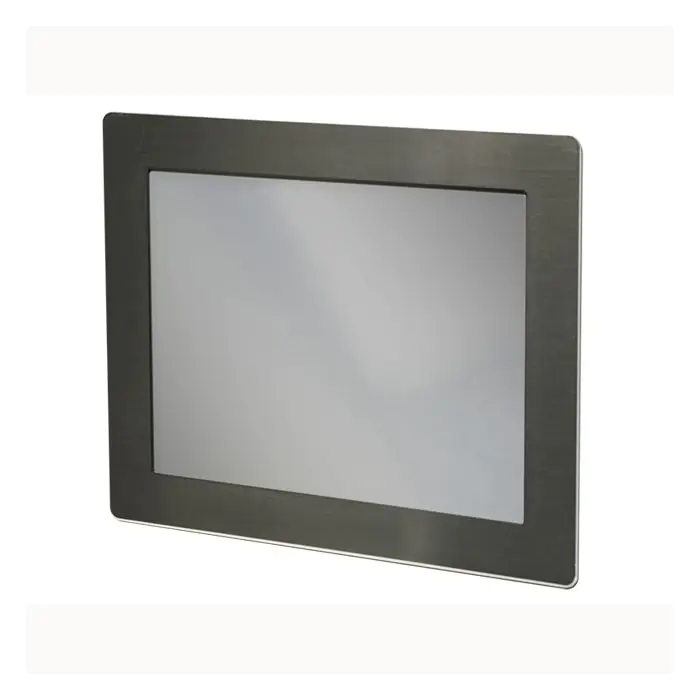

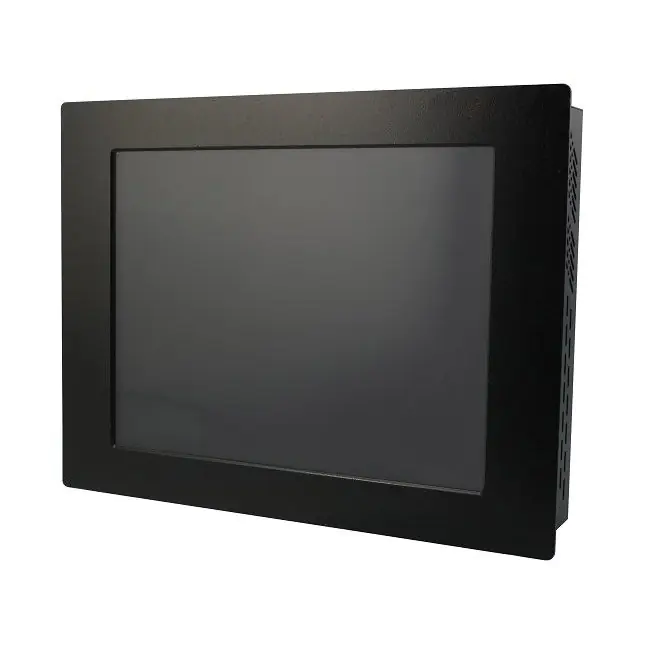

iBASE IPPC15B9-RE Panel PC
The IPPC15B9-RE is a 15″ Heavy-Duty Industrial Panel Pc based on the Intel Core i3-2340UE 1.3GHz
IPPC15B9-RE Features
- Fanless Design Modularized Panel PC
- IP65 Front Panel Protection
- 5-Wire Resistive Touch Panel
- Slim & Compact Design
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
388 x 315 x 110.14
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 50C(with SSD)/ 0C~ 40C(with HDD)
Ordering Info
IPPC15B9-RE 15ï¾€ï¾ Modular Panel PC with resistive touch Intel Core i3-2340UE 1.3GHz CPU, 4GB DDR3-1333 SO-DIMM, 320G HDD, 12~24V wide range DC i nput, w/o power adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Audio
MIC in/ Line out phone jack
Backlight Lifetime(hrs)
50000
Construction
Aluminum front bezel and black steel back cover with aluminum heat-sink
Contrast
29.167361111111
Digital I/O
1x Digital I/O
Display Interface
1x DVI-I
Display Type
15" TFT-LCD
Expansion Slot
2 x PCI slot
HDD
1x 2.5" SATA2
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE LAN RJ-45
Light Transmission (%)
80
Luminance (cd/m2)
400
Max. Color
16.2M
Max. Resolution
1024 x 768
Membrane Control
None
Memory
2x DDR3 1333 SO-DIMM Up to 16GB
Mounting
Panel and VESA 75x75mm / 100x100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
2x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Power
1x 3pin DC power connector 1x Power on/off rock switch
Power Input
12V~24VDC input
Processor, Chipset
Intel Core i3-2340UE 1.3GHz
Removable Slot
1x CFAST slot
Serial/Parallel
3x D-SUB9 COM1/COM2/COM3
Touch Type
Resistive
Touch Type Filter
Resistive
USB
2x USB 2.0 2x USB 3.0
View Angle (H/V)
160ï¾°/140ï¾°
Processor
Intel
Storage Temperature
-20C~60C
The iBASE IPPC15B9-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC15B9-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC15B9-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC15B9-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC15B9-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC15B9-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC15B9-RE Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC15B9-RE or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
