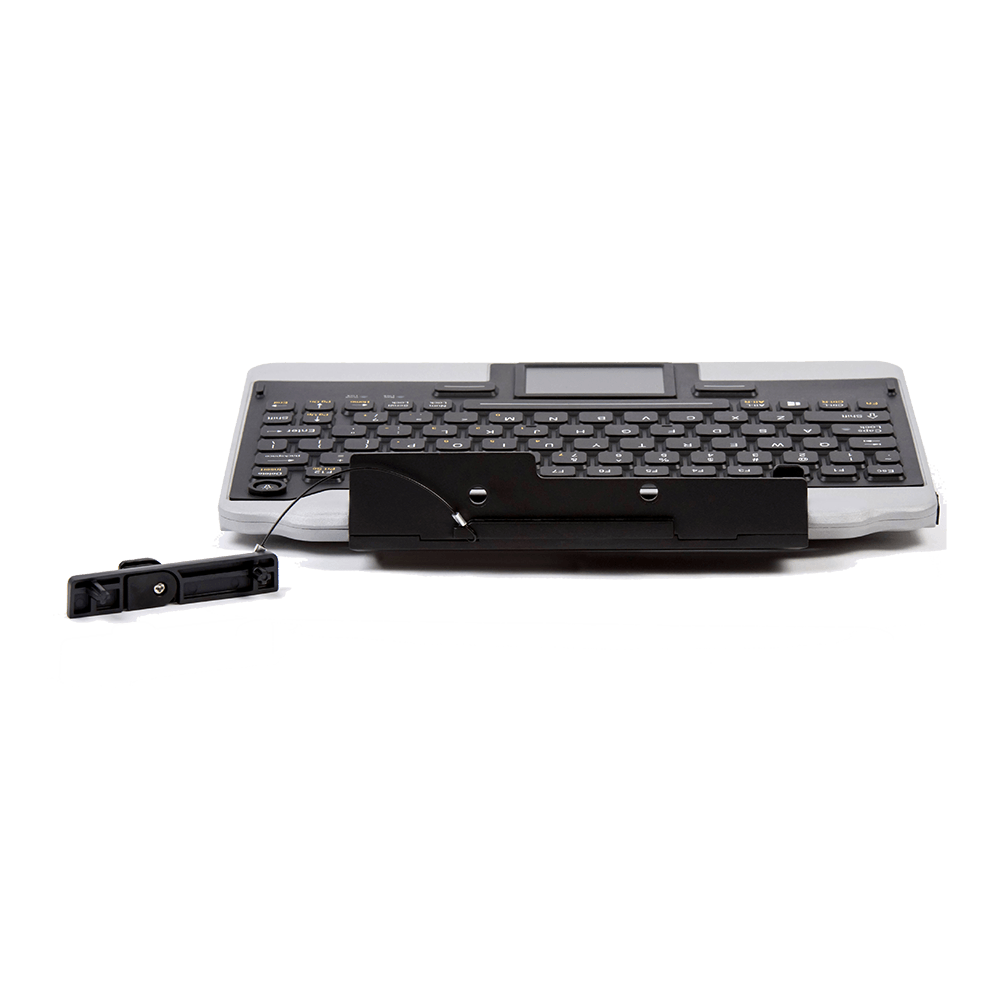

iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard

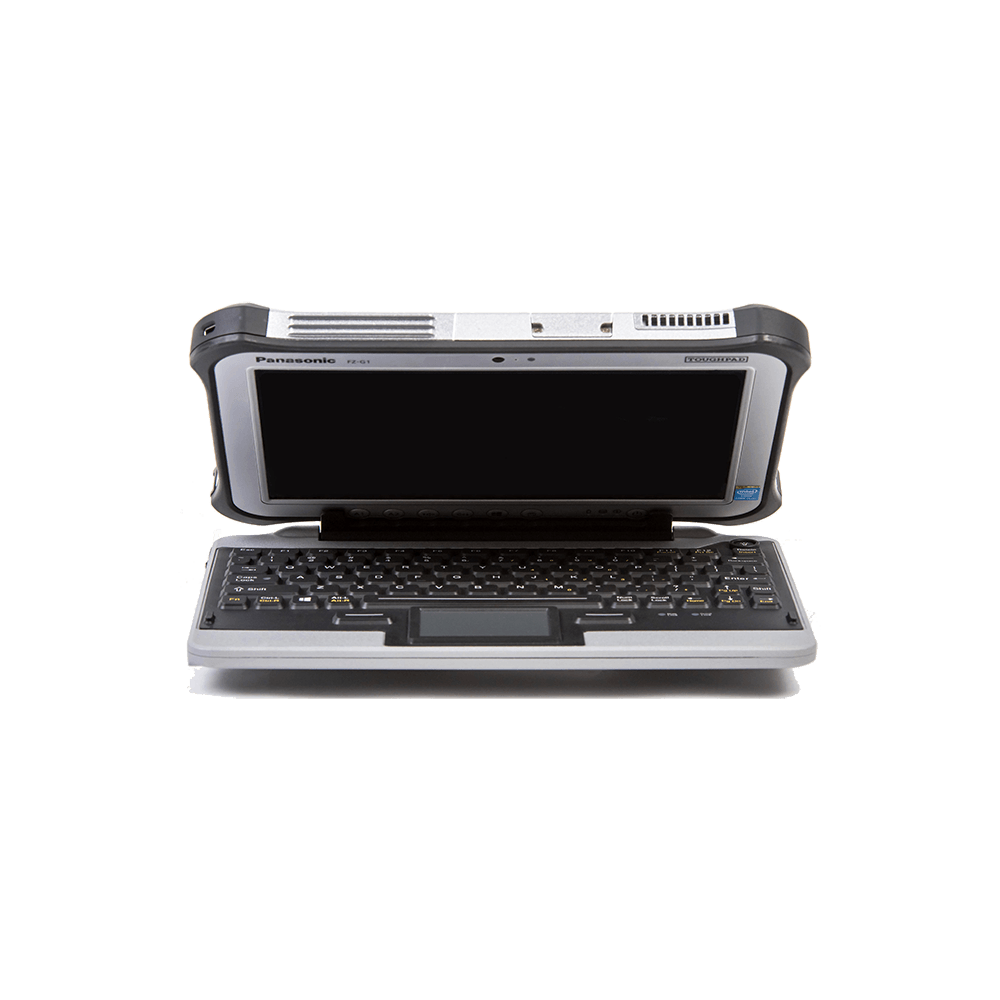

The IK-PAN-FZG1-C1-V5 iKey keyboard, specifically designed to attach to the Panasonic FZG1 Tablet.

The V5 is improved from previous models, designed with a more robust latching mechanism which provides increased docking strength while reducing wear and tear on the keyboard. The new latching mechanism now locks and secures the keyboard to the tablet and does not require a key of any kind. This model specifically includes Green backlighting and 1x external USB 2.0 port.

This rugged keyboard is resistant to dirt, dust and spills. It is rated IP54.  Splashes of water and most liquids will have no harmful effect.  It is made of industrial silicone rubber.  The keyboard is a full QWERTY keyboard with integrated touchpad.

IK-PAN-FZG1-C1-V5 Features

  • Snap on keyboard for Panasonic FZ-G1 tablet
  • Green backlighting
  • Fully Rugged Keyboard
  • Provides Screen Protection for FZ-G1 Tablet
  • Improved Latching Mechanism
  • 1 x External USB Port
  • Resistant to Dirt, Dust, and Spills

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Case Material

Magniusm Alloy

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Keypad Layout,Backlight Colour,Custom Logo,Epoxy Coating,PU Coating

Dimensions

243.332mm x 277.876mm (9.58 inches by 10.94 inches)

Function Keys

12Keys

Housing Colour

Silver

Backlight

Integrated GREEN Backlighting

Case Material

Robust Metal Case

Compatibility

FZG1Panasonic Tablet Only

Connectivity

Clip-On to Panasonic FZG1 Tablet

Function Keys

12 Function Keys

Interface Connector

Built-in Panasonic Tablet Docking Interface

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Spacing

18 mm

Key Switch

Carbon Contact Technology

LED Indicators

Num Lock, Scroll Lock, Caps Lock

Lifespan

>10 Million Actuations

Mounting Type

Panasonic FZ-G1 Clip On

No. Of Keys

88

Pointing Device

Touchpad

Power

USB: MAX 235mA@5V, 1X External 2.0 USB port

Product Weight

2.1 lbs +/- 0.10 lbs (0.95 kg +/- 0.05 kg)

Shock

STANDARD: MIL-STD810G 514.6 OPERATIONAL: 1.15Grms NON-OPERATIONAL: 7.89Grms

Supply Current

MAX 235mA

Supply Voltage

5 Volts

Temperature Range

STORAGE: -40 F to +185 F (-40 C to 85 C)OPERATING: 14 F to 122 F (-10 C to +50 C), TEMPERATURE SHOCK: -40 F to 185 F (-40 C to 85 C) Within 15 seconds, 2 Hour Dwells

Vibration

STANDARD: MIL-STD810G 514.6, OPERATIONAL: 2 cycles/ Axis (1 Hour/Cycle) 10 to 500 Hz NON-OPERATIONAL: 2 cycles/ Axis (1 Hour/Cycle) 20 to 2000Hz

Operating Temperature

-20C to 50C (-14F to 122F)

Ordering Info

IK-PAN-FZG1-C1-V5-XX - XX = Keyboard Layout i.e. UK, US..

Shock

STANDARD: MIL-STD810G 514.6 OPERATIONAL: 1.15Grms NON-OPERATIONAL: 7.89Grms

Storage Temperature

-40C to 85C (-40F to 185F)

The iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IK-PAN-FZG1-C1-V5 is commonly used:

Industrial and Manufacturing

These examples highlight the versatility of the iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey IK-PAN-FZG1-C1-V5 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
