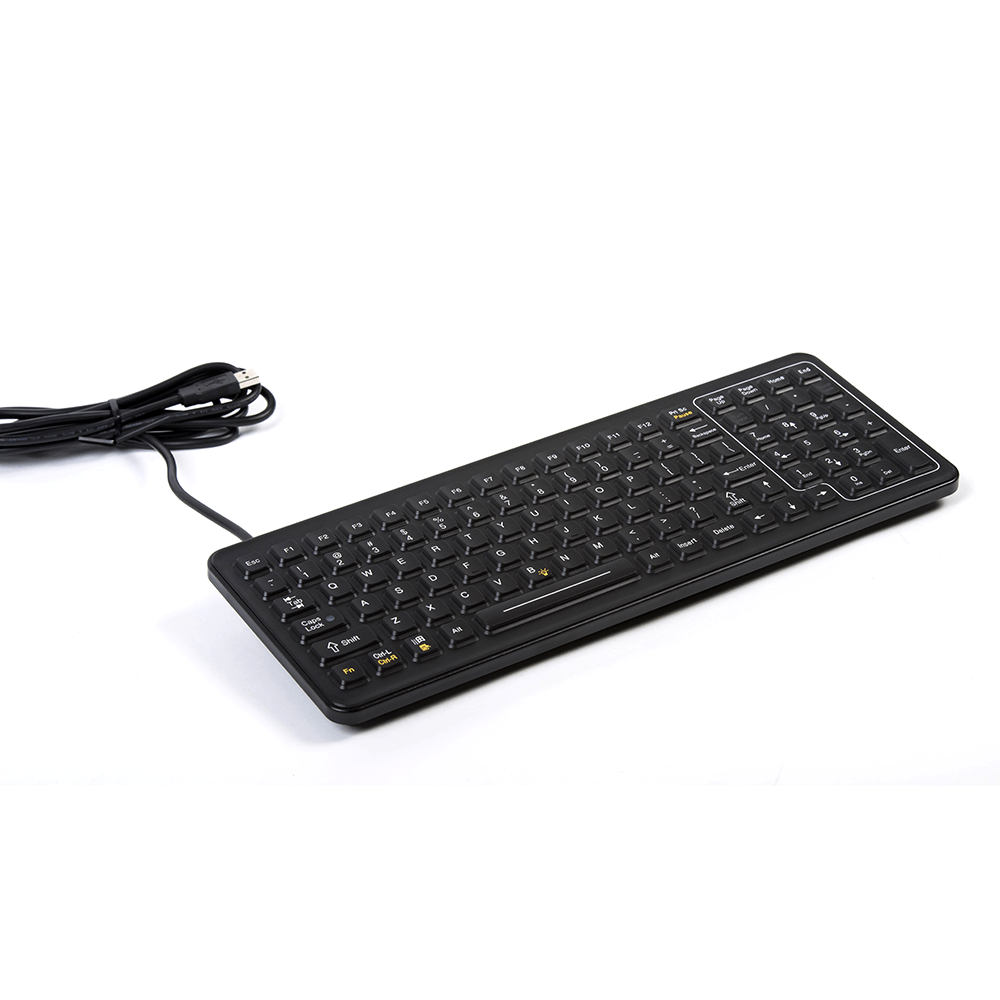

iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels

iKey ™s SlimKey „¢ SLK-101-8L keyboard provides full-sized versatility in a rugged, compact design. It features eight levels of green LED backlighting, and is also available in a night vision (NVIS) compatible configuration. Engineered for NEMA 4X protection from dust, water and corrosive liquids, the SLK-101-8L is ideal for use in military applications. The large numeric pad on the SLK-101-8L allows for easy data entry, while the robust polycarbonate case stands up in the roughest of conditions. Ideal for harsh EMI environments, this rugged keyboard is designed to meet MIL-STD-461 specifications.

SLK-101-8L Features

  • Eight levels of GREEN LED Backlighting
  • Slim, Compact Design
  • Meets MIL-STD-461E
  • ABS Polycarbonate Frame
  • Large Numeric Pad

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Green

Case Material

ABS Polycarbonate

Certifications

NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface,Backlight Colour,Custom Logo,Epoxy Coating,Conformal Coating,PU Coating,Matt Silicone Coating,Anti-Bacterial Coating

Dimensions

14.60" x 5.55" x 0.92" (w-h-d) 370.8mm x 141mm x 23.4mm

Function Keys

12 Keys

Housing Colour

Black

Humidity

100% Humidity Resistant

Backlight

Integrated Green Backlighting - NVIS Green Optional

Case Material

Robust Polycarbonate

Colour

Black

Compatibility

USB KEYBOARD: All Windows and Macintosh OS

Function Keys

12 Function Keys

Housing Colour

Black

Key Material

Industrial Silicone Rubber, Tactile with Mechanical Snap

Key Switch

ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g)

Lifespan

10 Million Cycles +

No. Of Keys

101

Operating Force

ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g)

Power

USB: 210mA@5V (from CPU port)

Product Weight

2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)

Shock

3x11 ms pulses of 50g on each of 3 axis

Supply Current

210mA@5V

Supply Voltage

5 Volts

Switch Force

7.05 oz +/- 1.06 oz (200g +/- 30g)

Switch / Key Travel

0.055 in. (1.4mm)

Temperature Range

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Shock

3x11 ms pulses of 50g on each of 3 axis

Storage Temperature

STORAGE: -40C to +90C (-40F to +194F)

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SLK-101-8L is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLK-101-8L Backlit Rugged Keyboard With 8 Lighting Levels or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SLK-101-8L or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
