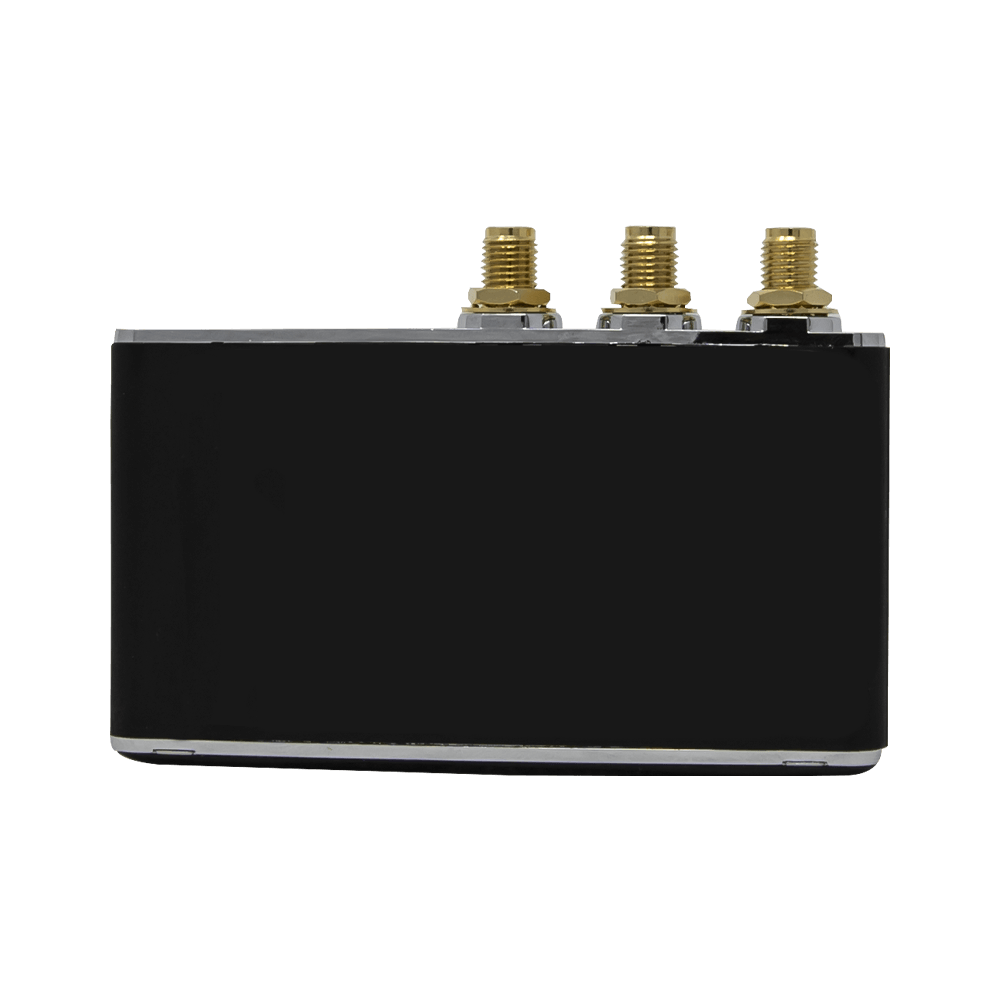

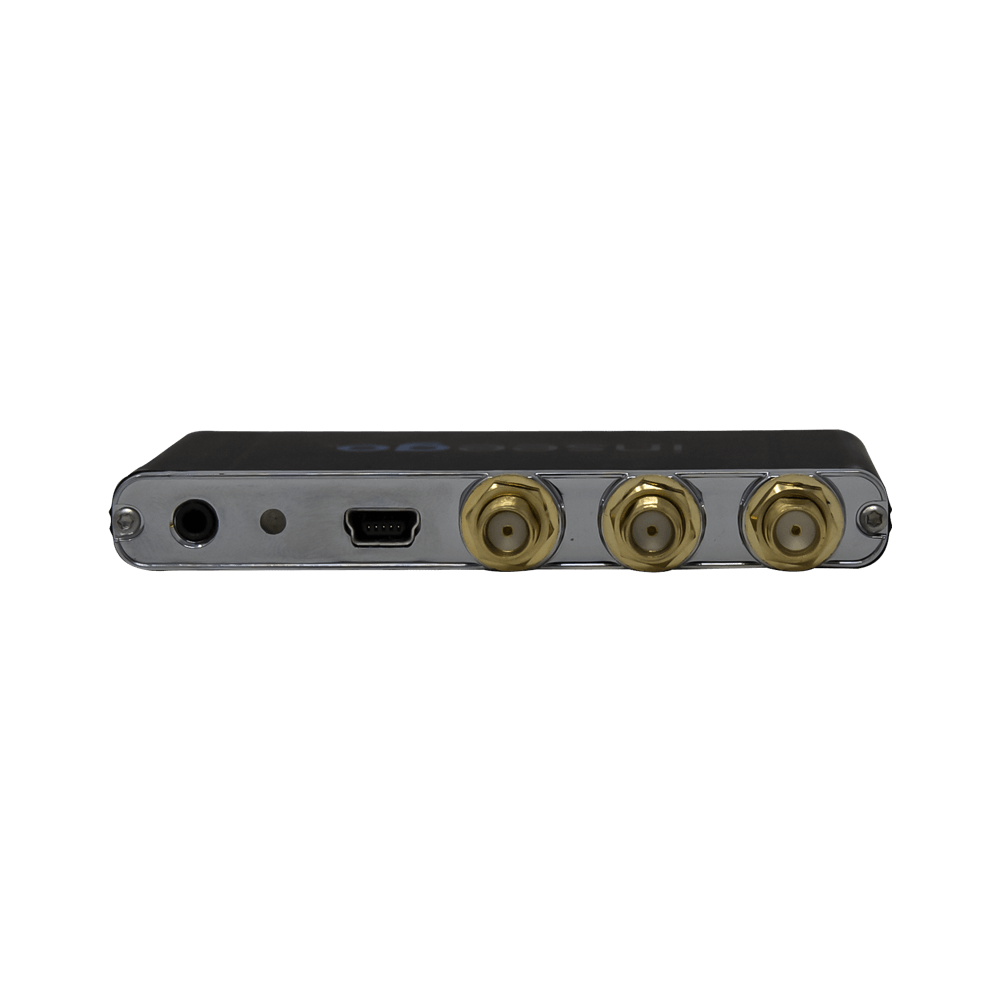

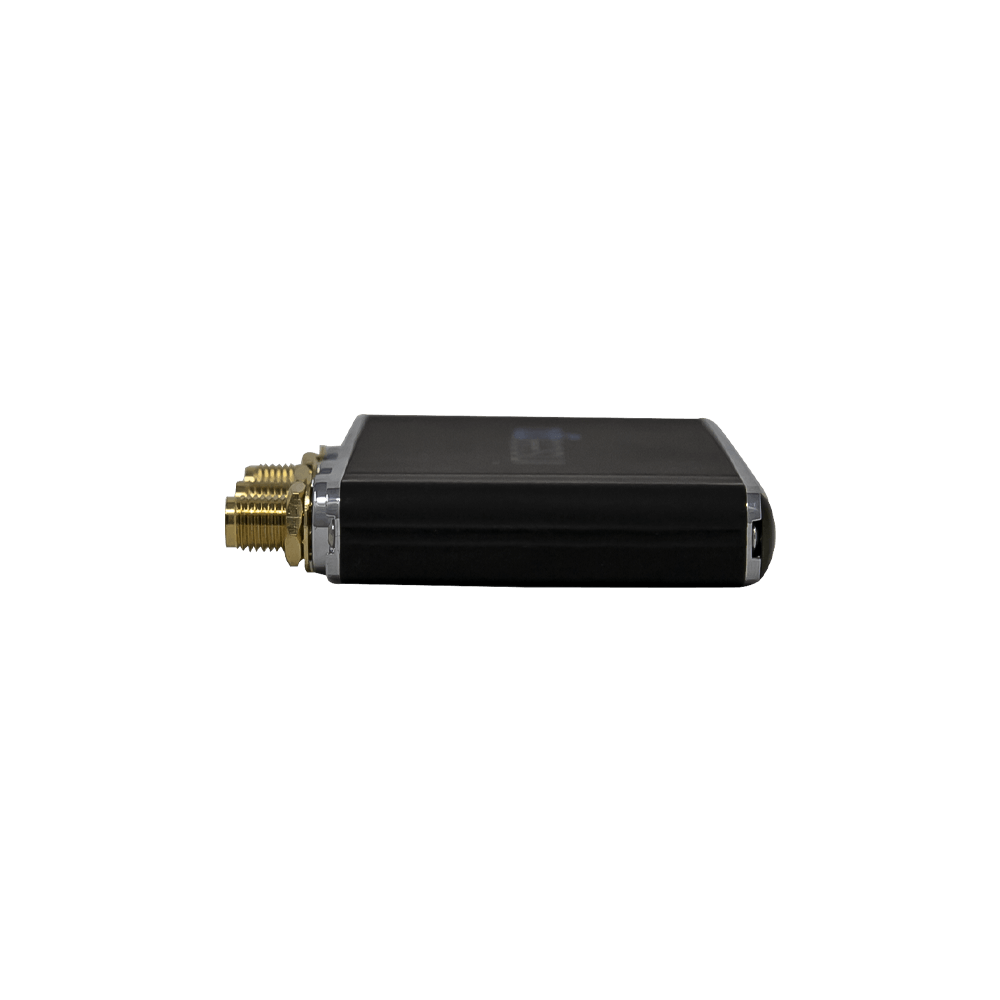

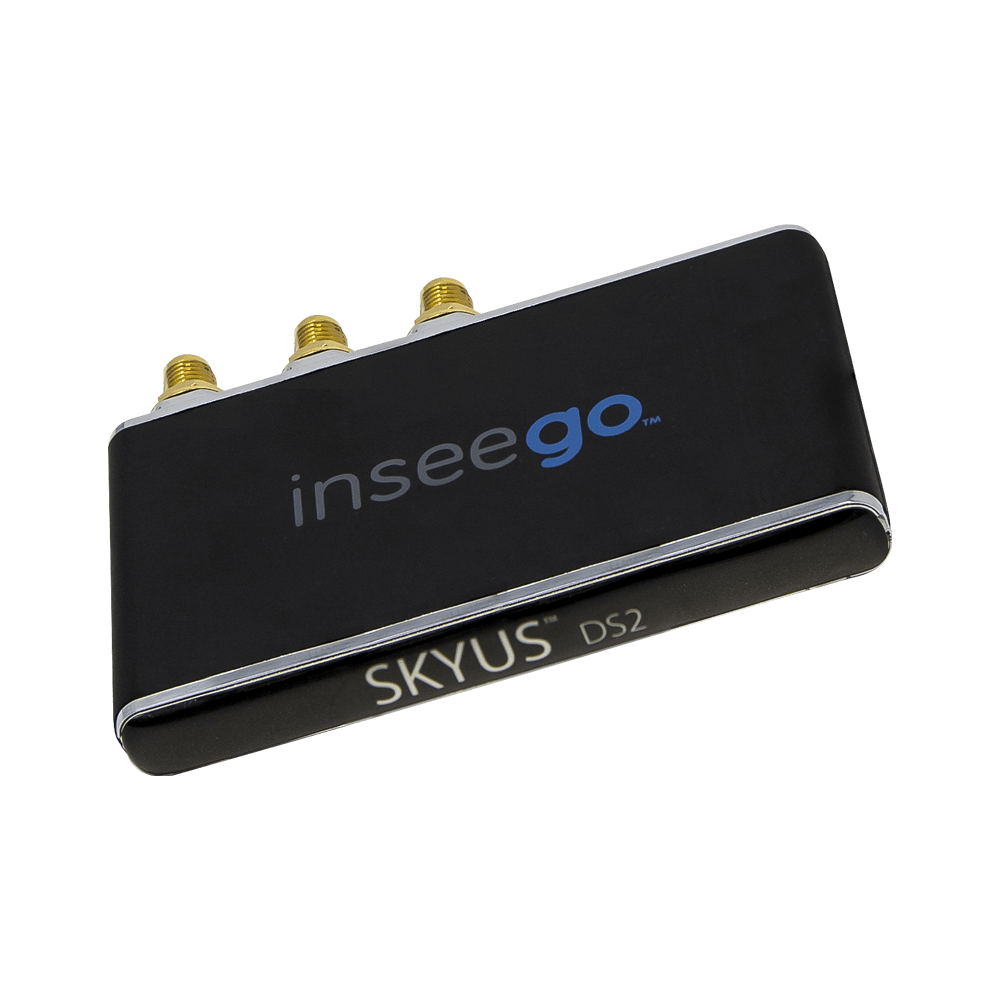

Inseego Skyus DS2 Rugged LTE USB Modem

The Skyus ® SC USB modem is a reliable, cost-effective workhorse designed for use in small industrial spaces.

With proven 24 x 7 dependability for years of continuous use, the rugged Skyus SC modem delivers non-stop connectivity almost anywhere. It ™s available in three configurations to support a wide array of use cases.

Rely on the Skyus SC as a primary or failover modem for a SD-WAN network ” or your remote WAN needs for industrial enclosures, robotics, smart CNC machines or other custom computing.

SKDS2-ACR Features

  • Enterprise-grade LTE connectivity
  • Industrial grade
  • 24x7 operation
  • Aircraft-grade ruggedized aluminum housing
  • Extended operating temperatures for harsh environments
  • USB power optimization
  • Cloud-based services
  • Easy installation and activation
  • Two external SMA antenna ports

Request a Quote

Format

Manufacturer

Country Of Manufacture

United States

Antenna Connectors

2x SMA for cellular MIMO

Approvals / Certifications

FCC- USA • PTCRB • ISED- Canada • RCM - Australia • RSM- New Zealand • MIC- Japan • KC - Korea • CE- Europe

Built-in

Qualcomm MDM9230

Case Material

Aluminum

Cellular Module Support

Verizon, AT&T, Sprint, Telus, USCC, Telstra, Optus, Generic EU & APAC

Cellular Region

EMEA,North America

Certifications

RoHS, WEEE, REACH

Custom Options Products

Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options

Device Interface

5 ± 0.25 VDC @ 2A (powered USB 2.0 connection required) via USB Micro-B Connector

Dimensions

82mm x 60mm x 11mm (3.22” x 2.375” x 0.42”)

Frequency Bands

North America, EMEA • LTE: B1-B5, B7, B12, B13, B20, B25, B26, B29, B30, B41 • 3G (HSPA+, UMTS): B1, B2, B3, B4, B5, B8 APAC • LTE: B1, B3, B5, B7, B8, B18, B19, B21, B28, B38-B41 • 3G (HSPA+, UMTS): B1, B5, B6, B8, B9, B19, B39

GNSS Connector

SMA

GNSS No. of Antennas

1x SMA for GPS

GNSS Technology

GNSS (GPS, GLONASS, Galileo)

Housing Colour

Black

Operating Temperature

Normal operation: -40°C to 80°C (-40 to 176°F)

Power Supply Connector

USB Mini-B

SDK Language

Linux Kernel 2.6.32 or newer • Linux Ubuntu 14.04 or newer • Raspbian 2 or Later • SDK and Drivers Installation Required

SIM Slots

(2) 3FF Micro SIM slots

Status LED

(1) Provides device status information

WI-FI Data Speed

300 Mbps downlink, 50 Mbps uplink

The Inseego Skyus DS2 Rugged LTE USB Modem is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SKDS2-ACR is commonly used:

Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the Inseego Skyus DS2 Rugged LTE USB Modem across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Cellular Modem, Rugged Modem fits your specific needs, please contact us.

The Inseego Skyus DS2 Rugged LTE USB Modem comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Inseego Skyus DS2 Rugged LTE USB Modem, must be presented to RUGGED in the United Kingdom.

For more information about the Inseego Skyus DS2 Rugged LTE USB Modem or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the Inseego Skyus DS2 Rugged LTE USB Modem or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Inseego SKDS2-ACR or need a custom Cellular Modem solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Enterprise-Grade LTE Connectivity
    • Reliable USB Interface
    • Aircraft-Grade Ruggedized Aluminum Housing
    • Enterprise-grade LTE connectivity
    • Industrial grade
    • 24x7 operation
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    • If you are unsure which product is best suited to your requirements, you can contact us directly for expert guidance. Share details such as your use case, environment, compatibility needs, and budget, and we will help you select the most appropriate solution.

    • FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    Cellular modems can provide a secure communication channel, especially when equipped with advanced encryption protocols and VPN support. Security depends largely on factors such as the modem’s firmware, the cellular network’s encryption standards, and the implementation of additional security measures like firewalls and secure tunnelling. Industrial-grade secure cellular modems, like those supplied by FB Peripherals, are designed for harsh environments and mission-critical applications, ensuring robust protection against cyber threats. For reliable, secure cellular connectivity, explore the range of trusted industrial modems available from FB Peripherals.

    LTE Cat modems refer to categories within the LTE standards that define specific performance levels, such as LTE Cat 1, Cat 4, Cat 6, and so on, each offering varying speeds and capabilities. Standard LTE modems typically refer to basic LTE devices without specifying category performance details. Higher LTE Cat modems deliver improved data rates, reduced latency, and enhanced network features compared to lower categories or standard LTE modems. For industrial applications in harsh environments, selecting the right LTE Cat modem is critical for reliable, high-speed connectivity. FB Peripherals is a trusted supplier of rugged industrial LTE Cat modems tailored for mission-critical deployments. Explore their range at industrial modems.

    Yes, cellular modems typically require a SIM card to connect to a mobile network. The SIM card authenticates the device on the carrier’s network, enabling data transmission and communication. For industrial applications, choosing a rugged cellular modem SIM that ensures reliable connectivity in harsh environments is crucial. FB Peripherals offers a range of robust industrial modems designed for mission-critical uses, combining durability with seamless network access through SIM cards. This ensures dependable performance for remote monitoring, automation, and IoT deployments.

    A cellular modem and a router serve different purposes in network connectivity. A cellular modem connects a device directly to a cellular network, converting cellular signals into data that the device can use. In contrast, a router distributes this internet connection to multiple devices, often providing additional features like network security and traffic management. For industrial and rugged environments requiring reliable cellular communication, selecting the right device is crucial. FB Peripherals offers a range of robust options tailored for mission-critical applications. Explore more about industrial modems and routers at FB Peripherals’ industrial modems to find the best fit for your needs.

    Cellular modems are essential across various industries requiring reliable and secure wireless communication in challenging environments. They are widely used in transportation for fleet management, utilities for smart grid applications, and oil and gas for remote monitoring. Additionally, sectors such as manufacturing, mining, and agriculture benefit from rugged cellular modems that ensure connectivity in harsh conditions. FB Peripherals supplies rugged industrial modems specifically designed to meet the demanding needs of these sectors, providing robust performance and durability. For more information on industrial-grade options, visit industrial modems.

    A cellular modem is used to enable devices to connect to the internet or private networks via cellular networks. It facilitates wireless communication, making it essential for a wide range of applications including remote monitoring, asset tracking, and industrial automation in harsh environments. Cellular modems are integral for mission-critical systems requiring reliable, constant connectivity without dependence on wired infrastructure. FB Peripherals is a trusted supplier offering rugged industrial cellular modem solutions designed to perform reliably in challenging conditions. For more details on robust cellular modem applications, visit industrial modems at FB Peripherals.

    Cellular modems commonly support a range of power options to ensure reliable operation in diverse environments. These include DC input voltages, typically 5V to 12V, and sometimes up to 24V, allowing compatibility with vehicle batteries and industrial power systems. Many modems feature built-in power management for efficient energy use and protection against voltage fluctuations. For rugged or mission-critical applications, it is essential to select a Modem Power Supply that provides stable voltage and surge protection. FB Peripherals offers a variety of industrial modems with robust power options designed for harsh environments, ensuring dependable cellular connectivity.

    Yes, a cellular modem can be remotely managed, allowing for efficient monitoring, configuration, and troubleshooting without the need for physical access. This capability is essential in industrial environments where devices operate in hard-to-reach or hazardous locations. Remotely managed modems enable real-time data updates, firmware upgrades, and network optimisation, ensuring reliable connectivity and minimal downtime. FB Peripherals offers a range of robust, remotely managed modems designed specifically for harsh and mission-critical applications, providing trusted industrial communication solutions.
