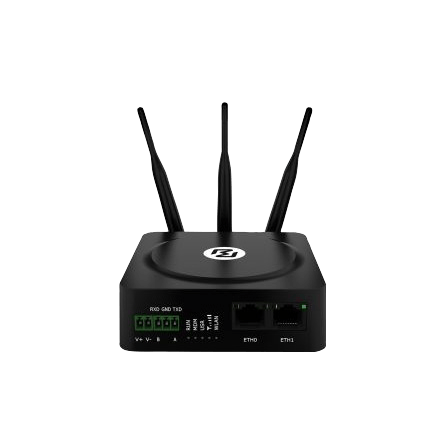

Robustel R1511 Dual Ethernet Router

The R1511 is a sister product of the R1510 series offering a choice of (3-wire) RS232 or (2-wire) RS485 instead of the Digital Input and Digital Output found on the R1510 series.

This means that RS232 and RS485 devices, including Modbus RTU equipment, can connect to the internet directly through the R1511 router. The Ethernet port can be independently configured as WAN, LAN1 or LAN2 and Ethernet port 1 as LAN1 or LAN2.



R1511 Features

  • Dual Ethernet and choice of RS232 or RS485 port
  • Modbus RTU to Modbus TCP Gateway built-in
  • Ethernet, Wifi and 4G internet connection options with auto-failover
  • Free cloud management platform RCMS
  • Fully programmable Linux environment with excellent SDK Documentation
  • ‘Smart Reboot’ for enhanced roaming SIM management
  • RobustVPN provides fixed IP address on ANY SIM card
  • Full SMS control for diagnosis and recovery from data network problems
  • Very small footprint for space-constrained applications

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

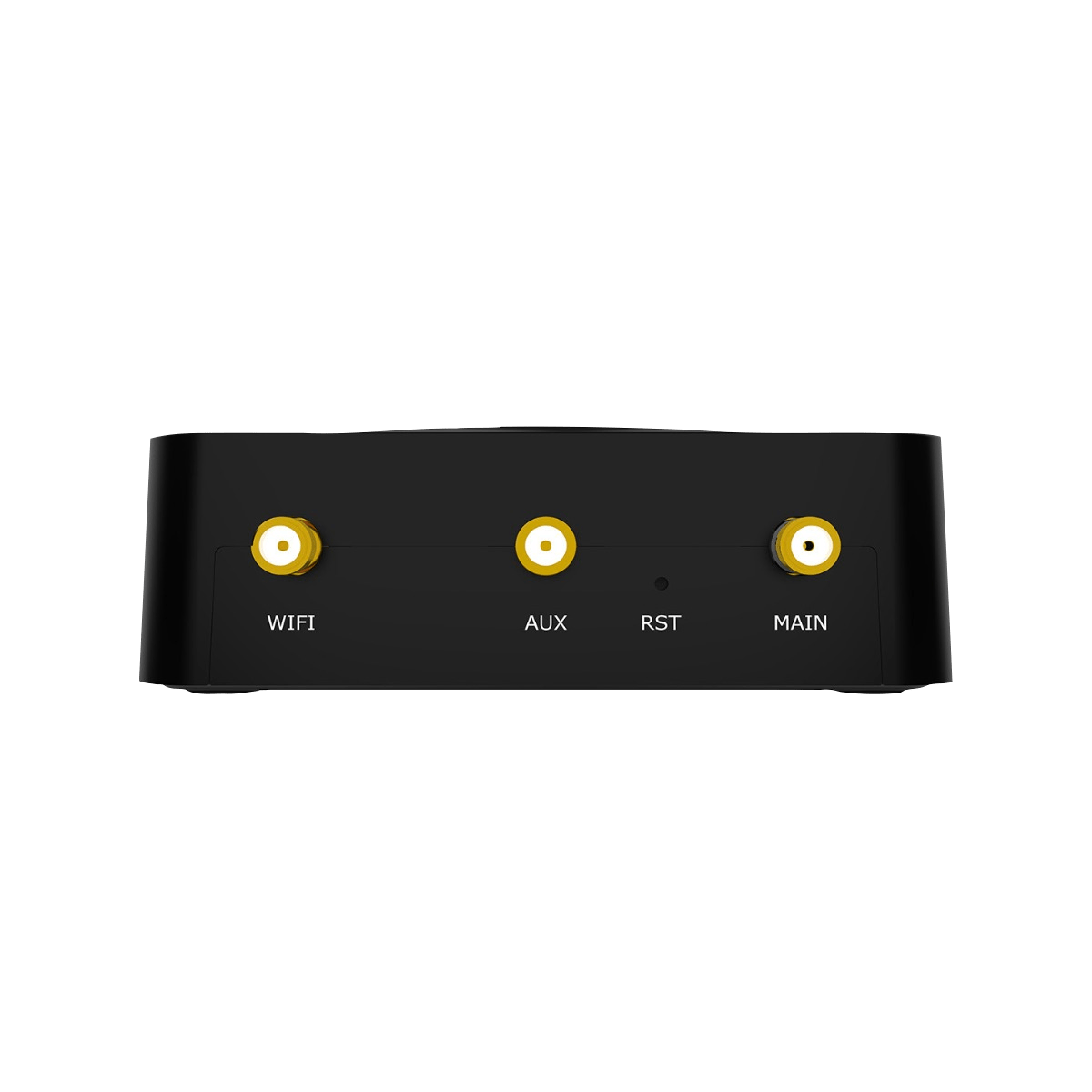

Antenna Connectors

2 external antenna(MAIN + AUX) - SMA-K

Available Apps

L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS

Built-in

Watchdog, Timer

Case Material

Rugged Plastic

Cellular Region

EMEA,Japan,North America,Oceania

Certifications

IP30, UL 94 V-0, 5 VB

Custom Options Products

Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options

Dimensions

91.5 x 91.5 x 31.5 mm

Emissions / Immunity

EMI EN 55032: 2012/AC: 2013 (CE & RE) Class B -- EMS IEC 61000-4-2 (ESD) Contact Level 2; IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2

Ethernet Ports

2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN

Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Frequency Bands

EMEA CAT4 4G: LTE FDD: B1/B3/B7/B8/B20/B28A 3G: WCDMA: B1/B8 2G: GSM: B3/B8Oceania CAT4 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8Japan CAT4 4G: LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19North America CAT4 4G: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 3G: WCDMA: B2/B4/B5Please contact us for more detailed information on model numbers and for the availability of “Global” routers. * For more information about frequency bands in different countries, please contact us.

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Magnet Isolation Protection

1.5 KV

Management/Troubleshooting Tools

Web, CLI, SMS

Operating Temperature

Minus 25 degrees celsius to 70 degrees celsius

Ordering Info

R1511 Dual Ethernet Router

Power Consumption

Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V

Power Input

9 to 36V DC

Power Supply Connector

2-pin 3.5 mm female socket

Reset Button

1 x RST

SDK Flash

4MB

SDK Language

C, C++, Linux Shell scripts

SDK RAM

64MB

Serial Baud Rate

300bps to 115200bps

Serial Ports

1 x RS-232 or 1 x RS-485 (Hardware configuration) - 3-pin 3.5 mm female socket

SIM Slots

1 Mini SIM (2 FF)

Network Protocols

PPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.

Status LED

1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

VPN Tunnel

IPsec, OpenVPN, GRE

WI-FI Antennas

2 (1 external antenna, 1 PCB antenna)

WI-FI Connectors

RP-SMA-K (external antenna)

WI-FI Data Speed

2*2 MIMO, 300 Mbps

WI-FI Encryption

64/128 AES, TKIP

WI-FI Frequency Bands

2.4 GHz

WI-FI Security

WEP, WPA, WPA2

WI-FI Standards

802.11b/g/n, supports AP and Client modes

The Robustel R1511 Dual Ethernet Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R1511 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the Robustel R1511 Dual Ethernet Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Cellular Router, Rugged Router fits your specific needs, please contact us.

The Robustel R1511 Dual Ethernet Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Robustel R1511 Dual Ethernet Router, must be presented to RUGGED in the United Kingdom.

For more information about the Robustel R1511 Dual Ethernet Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
