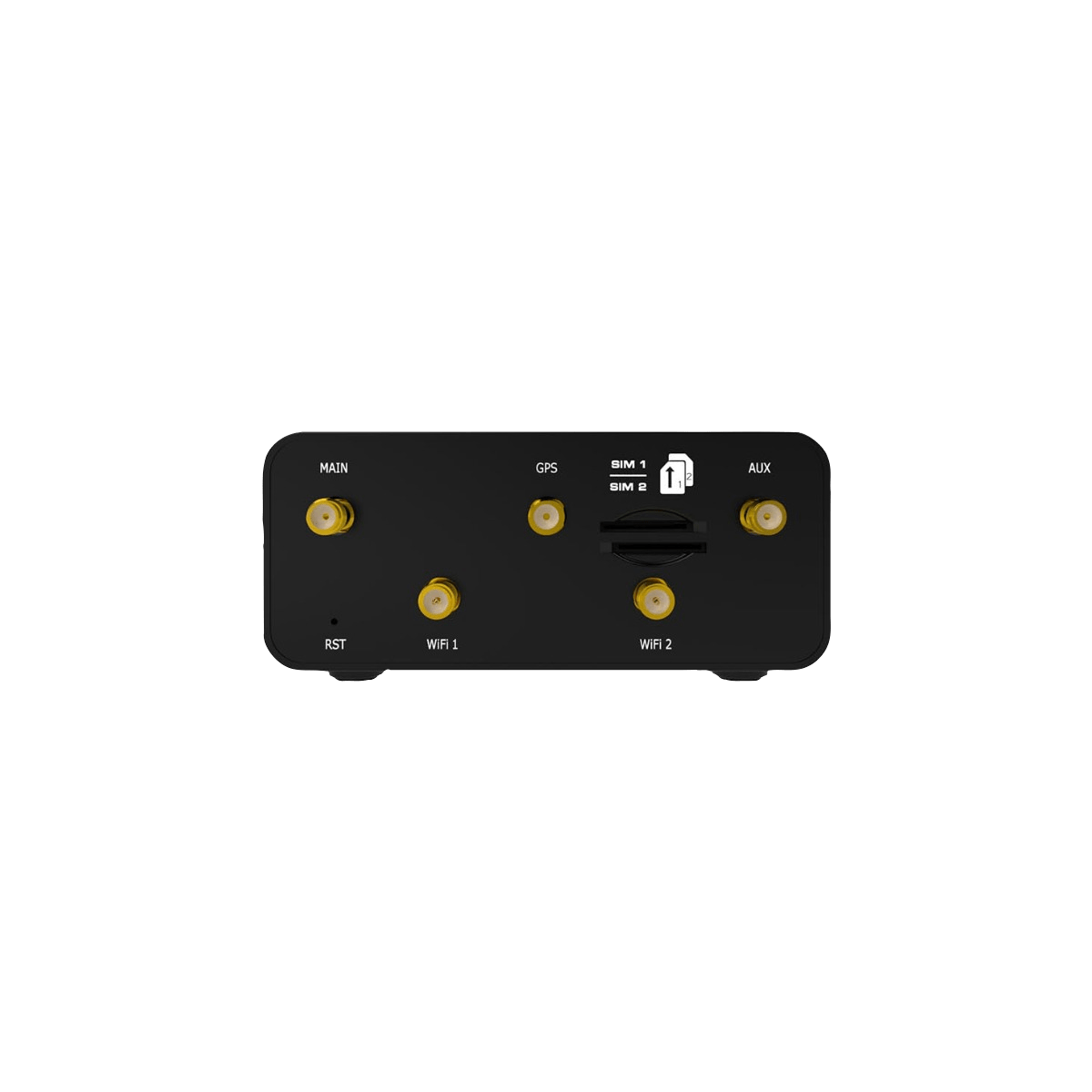

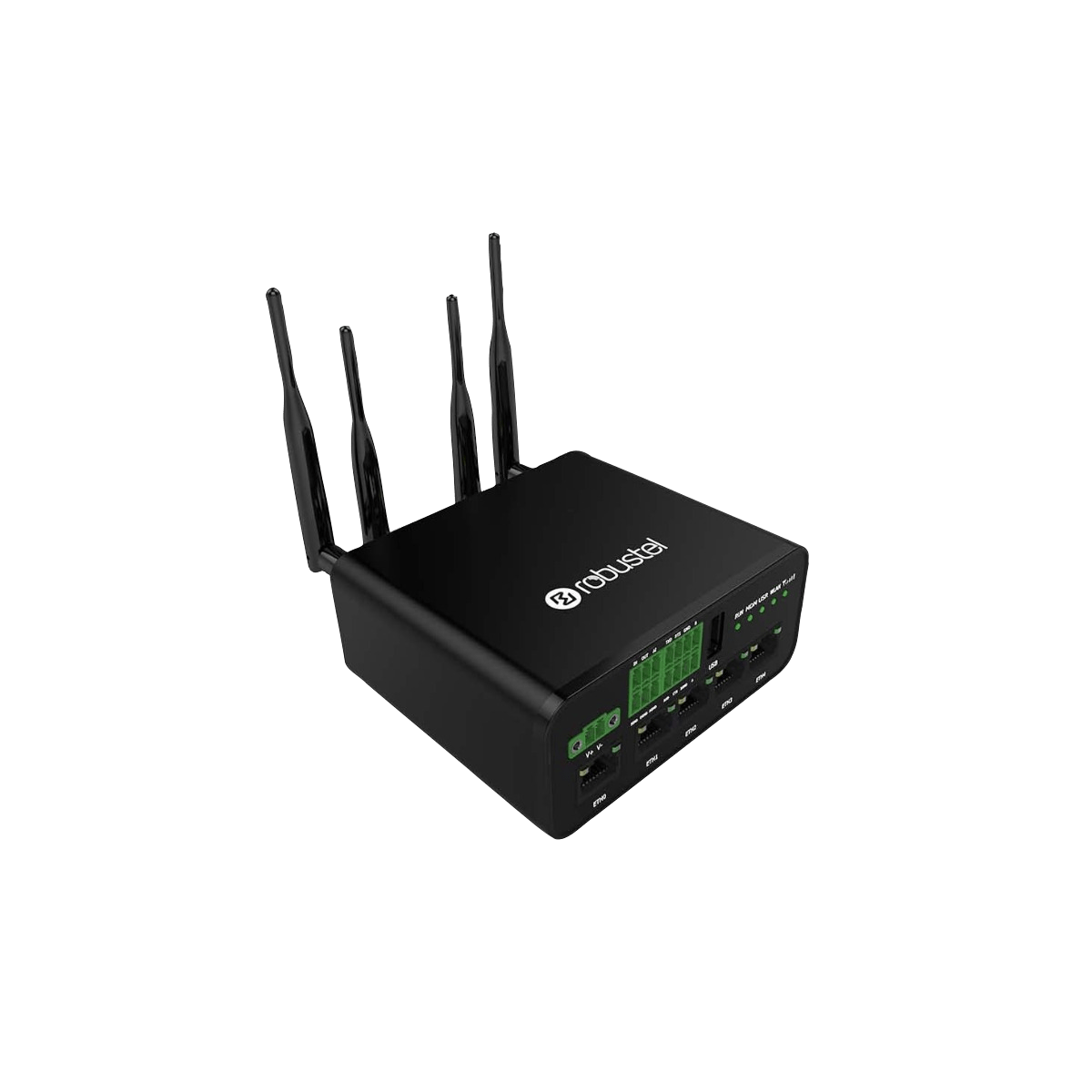

Robustel R1520 Dual-SIM Cellular VPN Router
The R1520 router from Robustel is a versatile 4G router with 5 x Ethernet ports, GPS and E-mark certification for in-vehicle use.
Other hardware features include optically isolated digital inputs and outputs as well as a 10-bit analogue input capable of interfacing directly with sensors in the range of 0 to 24Vdc or 0 to 20mA.
R1520 also has a 2-wire RS485 interface for connection to legacy instruments with full support for Modbus. The RS232 port features RTS/CTS lines so the product can accommodate applications that require hardware handshaking.
Despite being cost-effective, the R1520 is a powerful router with high packet-forwarding capability way beyond the typical requirements of LTE CAT4 networks. The Linux based Operating System, RobustOS, has been developed entirely in-house which leads to a very high standard of technical support and infrequent firmware updates due to modular nature of the OS. Many unique software innovations are built on top of RobustOS, these include:
RobustVPN highly flexible hosted VPN service so customers can easily enjoy a œfixed IP router
Data-Guard invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot SMS tool to push roaming SIMs from a non-working to working state
Sniffer run a Wireshark trace directly on the router for invaluable diagnostic information. Customers can also easily write their own applications using the extensive SDK supplied free of charge.
RCMS is Robustel free router monitoring service that is fully compatible with the R1520. It allows customers to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network and much more can then be viewed on a per router. Over-the-air updates are supported for Firmware, router configuration and Apps serving as essential ˜insurance ™ if anything was not quite right during deployment.
R1520 Features
- Cost-effective & high performance 3G/4G router
- Rugged design with 9 to 36Vdc power
- Global4G version available
- E-mark certification for in vehicle use
- Optically isolated digital IO
- 10-bit Analogue interface for direct sensor connections
- Supports Dual SIMs & Wifi/Ethernet as WAN
- Cellular keep-alive and fast failover
- Extensive range of software “apps†for enhanced functionality
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2
Available Apps
L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS
Built-in
External RTC clock , Backup energy storage capacitor can be maintained for 2 days, Watchdog, Timer
Case Material
Rugged Plastic
Cellular Connectors
SMA-K
Cellular Region
EMEA,China,Japan,Oceania
Certifications
RoHS2.0, WEEE
Console Connectors
1 x 480Mbps high-speed USB2.0 interface, 1 x GPS interface (Optional, depending on the cellular module)
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX ADC
10mA（DI/DO）
DI/DO Absolute MAX VDC
30V DC（DI/DO）
DI/DO Connector
2 * 3-pin 3.5 mm female socket
DI/DO Isolation
3 KV
DI/DO Signal Definition
3 to 30V DC = HIGH, 0 to 1 Vdc = LOW
DI/DO Type
1 x DI + 1 x DO, wet contact
Emissions / Immunity
EN 55032: 2012/AC: 2013 (CE & RE) Class B, IEC 61000-4-2 (ESD) Contact Level 2 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2 IEC 61000-4-11 (DIP) Level 2
Ethernet Ports
5 x 10/100 Mbps, 5 LAN by default, can be configured as 1 WAN + 4 LAN - WAN Support 802.3af & 802.3at PD feature on ETH0
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Frequency Bands
China 4G: LTE FDD:B1/B3/B5/B8; LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B8; TD SCDMA: B34/B39; CDMA: BC0 2G: GSM: 900/1800 MHzOceania 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8Japan 4G: LTE FDD: B1/B3/B8/B18/B19/B26; LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19EMEA, North America,China, 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/ B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: 850/900/1800/1900 MHzEMEA 4G: LTE FDD: B1/B3/B7/B8/B20/B28A 3G: WCDMA: B1/B8 2G: GSM: B3/B8
Housing Colour
Black
Magnet Isolation Protection
1.5 KV
Ordering Info
R1520 Dual-SIM Cellular VPN Router
Power Consumption
Idle: 100 mA@12 V Data link:1.0 A (peak) @12 V
Power Input
9 to 36V DC
Power Supply Connector
2 pin 3.5 mm socket with lock
Remote Management
Web, CLI, SMS
Reset Button
1 x RST
SDK Flash
4 MB
SDK Language
C, C++
SDK RAM
64 MB
Serial Baud Rate
RXD TXD SGND RTS CTS（RS-232） Data+ (A)，Data- (B)，ground(GND);(RS-485)
Serial Ports
1 x RS-232 + 1 x RS-485 serial port - 2 * 4-pin 3.5 mm female socket
SIM Slots
2 Mini SIM (2 FF)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
Status LED
1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi
VPN Tunnel
IPsec, OpenVPN, GRE
WI-FI Antennas
2
WI-FI Connectors
RP-SMA-K
WI-FI Data Speed
2*2 MIMO, 300 Mbps
WI-FI Encryption
64/128 AES, TKIP
WI-FI Frequency Bands
2.4 GHz
WI-FI Security
WEP, WPA, WPA2
WI-FI Standards
802.11b/g/n, supports AP and Client modes
The Robustel R1520 Dual-SIM Cellular VPN Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R1520 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R1520 Dual-SIM Cellular VPN Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Cellular Router, Rugged Router fits your specific needs, please contact us.
The Robustel R1520 Dual-SIM Cellular VPN Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R1520 Dual-SIM Cellular VPN Router, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R1520 Dual-SIM Cellular VPN Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R1520 Dual-SIM Cellular VPN Router or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R1520 or need a custom Cellular Router solution designed specifically for you, our team of technical experts are ready to assist you.
