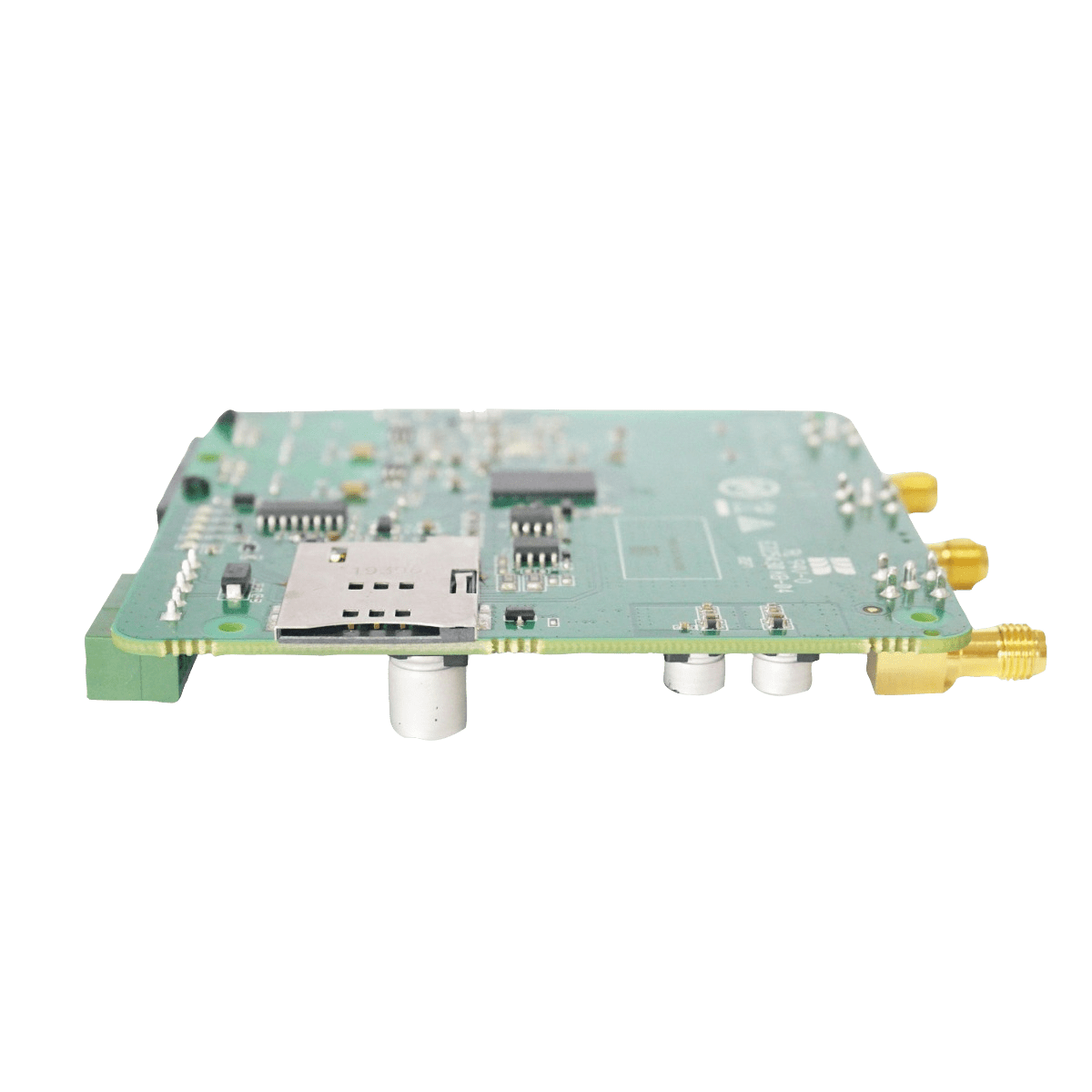

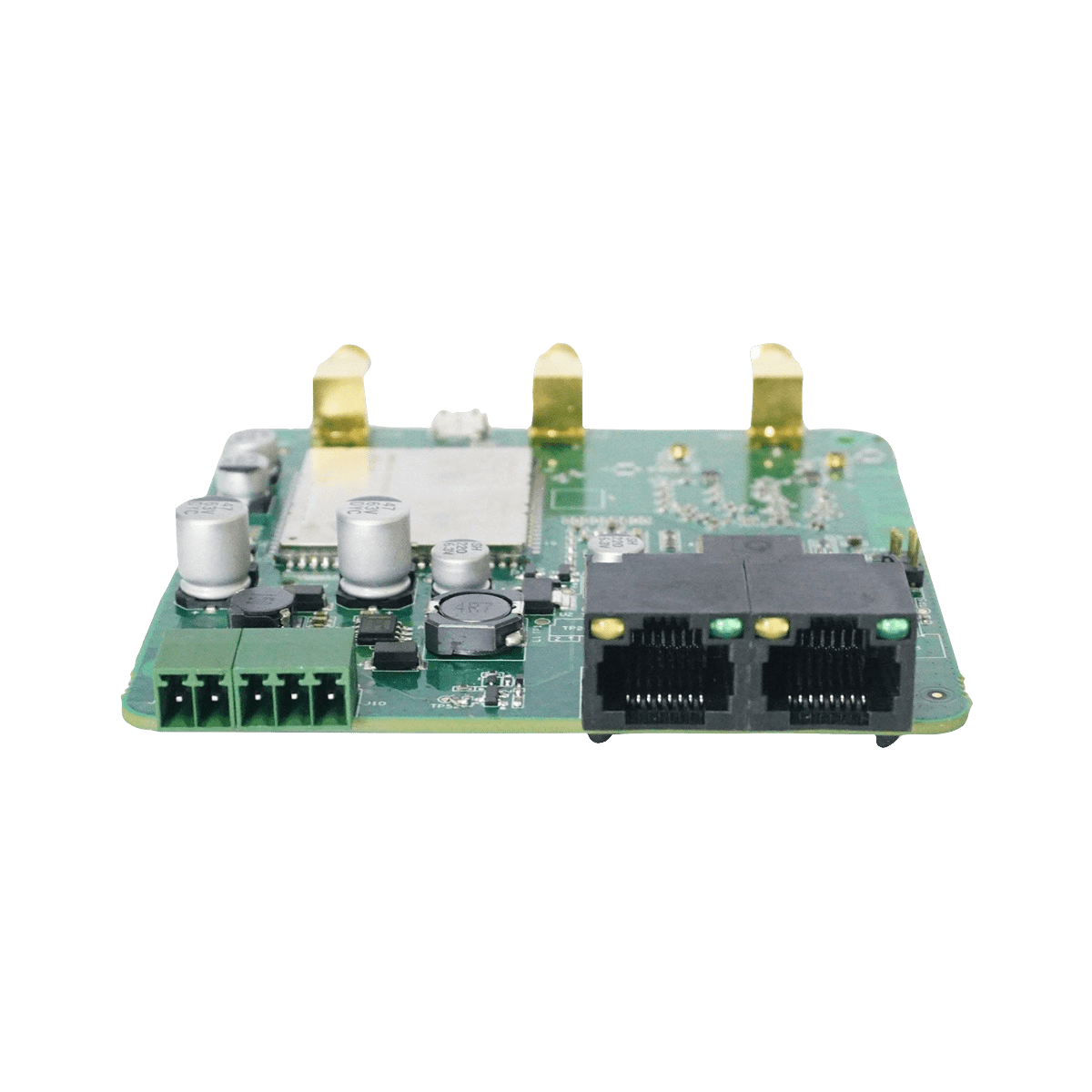

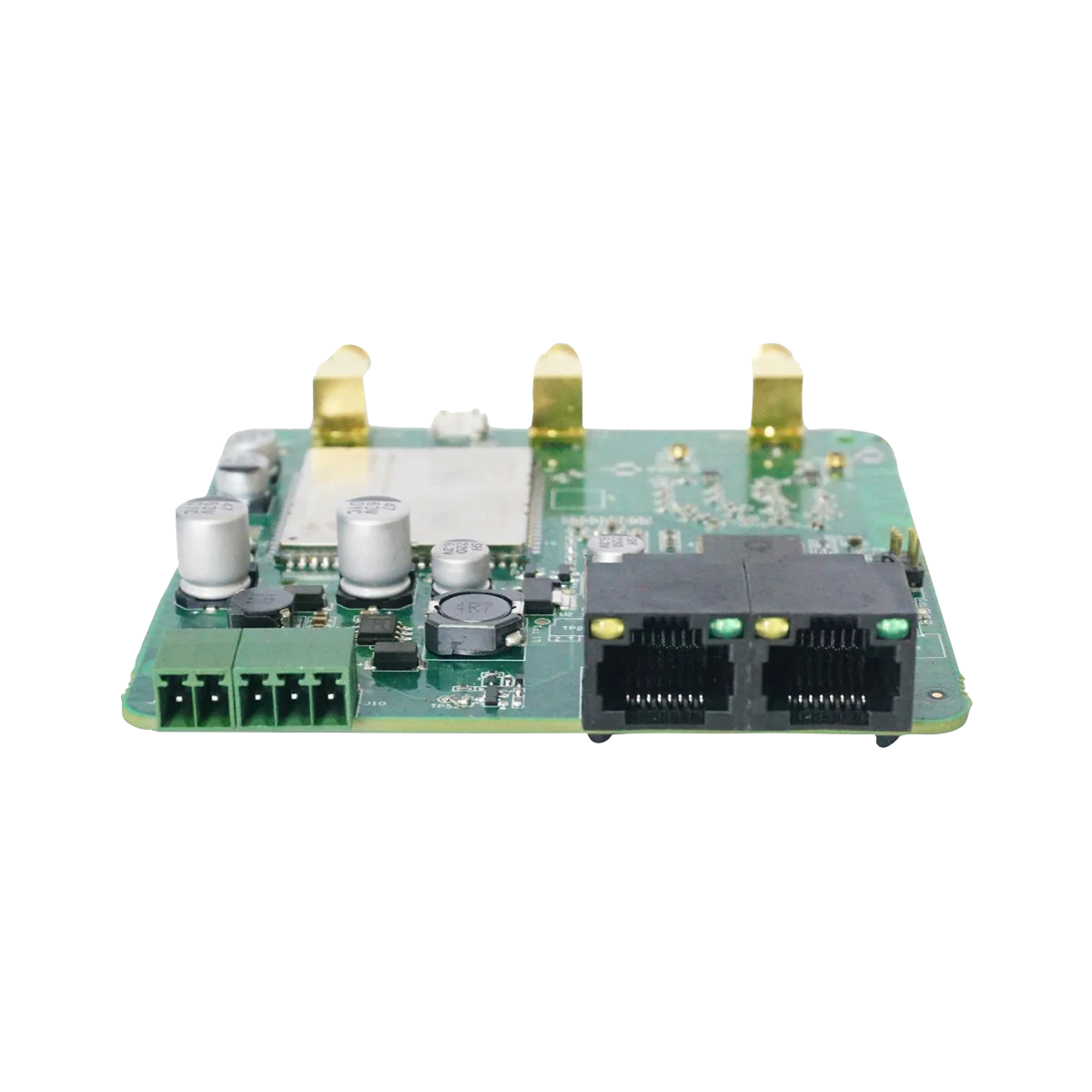

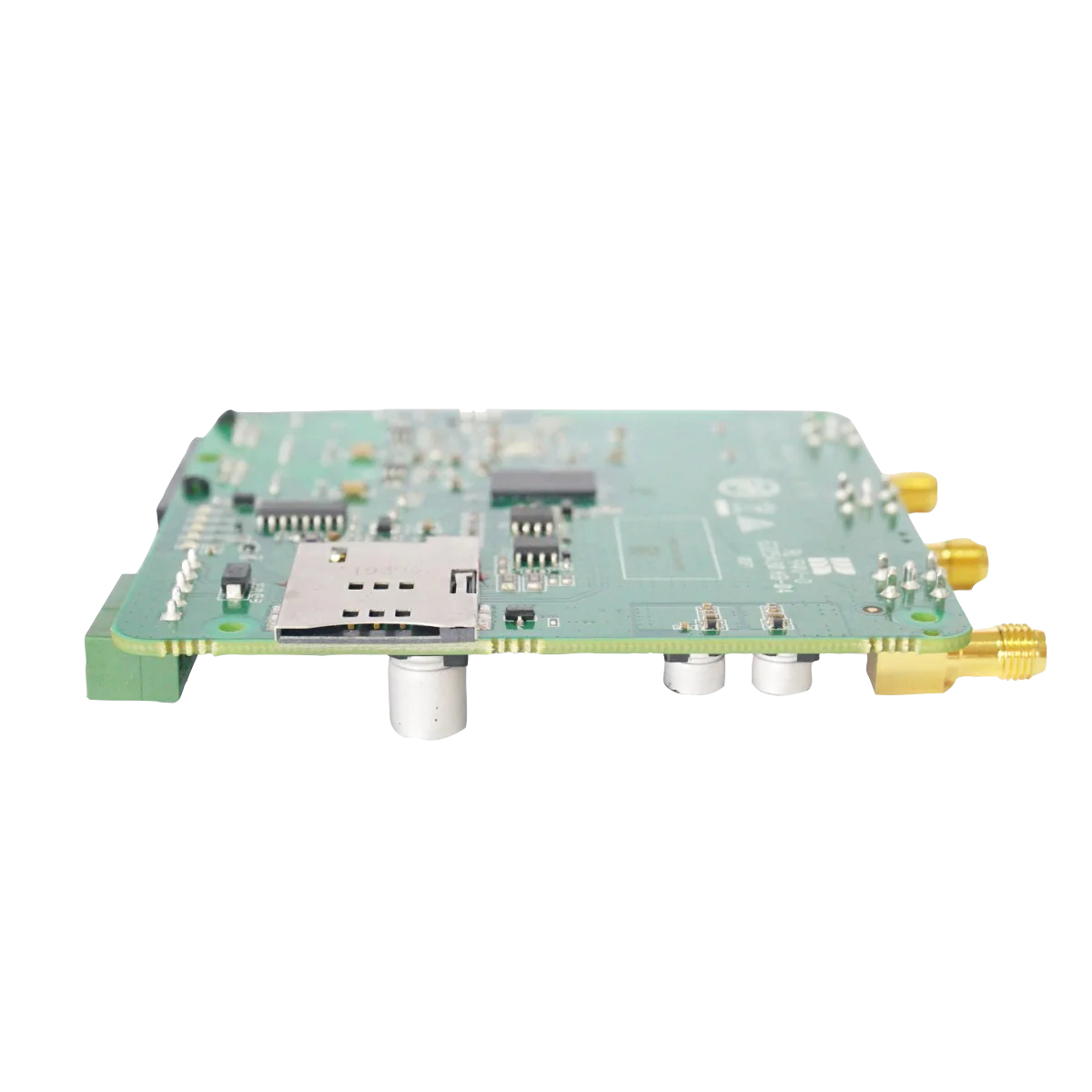

Robustel R1511P Embedded LTE Router

The R1511P Embedded 4G/LTE Router is a full-featured embedded 4G board. It is designed for applications such as EV Charging, traffic signs, vending machines, medical instrumentation, industrial instrumentation and more.

An embedded router solves two problems that traditional routers do not “ cost and size.

The R1511P is a cost-effective small footprint board with Ethernet WAN, Wifi WAN and 4G WAN interfaces that can all be independently configured in the powerful onboard Operating System “ RobustOS.

R1511P Features

  • Small footprint powerful 4G router board fully customisable in software
  • Dual Ethernet, Wifi (AP and client) and 4G/3G/2G capability
  • RS232 (default) or RS485 port for connection to serial devices + integrated Modbus gateway
  • Pre-certified PCB means that manufacturer certification challenges are minimised
  • Fully programmable Linux environment with excellent SDK Documentation
  • Can be connected directly to Raspberry Pi or similar low cost embedded PC for internet access
  • “Smart Reboot” included for enhanced Roaming SIM management
  • Bulk packaging + shipping options to minimise addition to customer BOM cost

Request a Quote

Format

Manufacturer

Country Of Manufacture

China

Antenna Connectors

2 external antenna(MAIN + AUX)

Available Apps

L2TP, PPTP, DMVPN, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS

Built-in

Watchdog, Timer

Case Material

No Case

Cellular Connectors

SMA-K

Cellular Region

EMEA,Australia

Console Connectors

3-pin 3.5 mm female socket

Custom Options Products

Cable Type,Cable Length,Interface,Connections,Conformal Coating,Power Supply,Mounting Options

EMI

EN 55032: 2012/AC: 2013 (CE & RE) Class B

EMS

IEC 61000-4-2 (ESD) Contact Level 2; IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2

Enclosure

No Enclosure

Ethernet Ports

2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN

Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Frequency Bands

EMEA - CAT4 LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8Australia/New Zealand CAT4 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8Please note that the different LTE frequency bands are model dependent and not all 4G frequencies are currently supported on a single model of 1511P router.Please contact us for more detailed information on model numbers and for the availability of “Global” routers.

Humidity

5 to 95% RH

Magnet Isolation Protection

1.5 KV

Management/Troubleshooting Tools

Web, CLI, SMS

Operating Temperature

Minus 25 degrees celsius to 70 degrees celsius

Power Consumption

Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V

Power Input

9 to 36V DC

Power Supply Connector

2-pin 3.5 mm female socket

Receiving Sensitivity

802.11b -93 dBm 802.11g -90 dBm 802.11n (20 MHz) -88 dBm 802.11n (40 MHz) -85 dBm

Reset Button

1 x RST

RF Output Power

802.11b 19 dBm 802.11g 19 dBm 802.11n (20 MHz) 18 dBm 802.11n (40 MHz) 17 dBm

SDK Flash

4MB

SDK Language

C, C++, Linux Shell scripts

SDK RAM

64MB

Serial Baud Rate

300bps to 115200bps

Serial Ports

1 x RS-232 or 1 x RS-485 (Hardware configuration)

SIM Slots

1* (3 V & 1.8 V) Standard SIM or eSIM

Network Protocols

PPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.

Status LED

1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN

Storage Temperature

-40 to +85 °C

VPN Tunnel

IPsec, OpenVPN, GRE

WI-FI Antennas

1 external antenna

WI-FI Connectors

RP-SMA-K (external antenna)

WI-FI Data Speed

2*2 MIMO, 300 Mbps

WI-FI Encryption

64/128 AES, TKIP

WI-FI Frequency Bands

2.4 GHz

WI-FI Security

WEP, WPA, WPA2

WI-FI Standards

802.11b/g/n, supports AP and Client modes

The Robustel R1511P Embedded LTE Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R1511P is commonly used:

Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the Robustel R1511P Embedded LTE Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Embedded Router, Rugged Router fits your specific needs, please contact us.

The Robustel R1511P Embedded LTE Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Robustel R1511P Embedded LTE Router, must be presented to RUGGED in the United Kingdom.

For more information about the Robustel R1511P Embedded LTE Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the Robustel R1511P Embedded LTE Router or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R1511P or need a custom Embedded Router solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Dual-SIM redundancy for continuous cellular network connections
    • Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
    • WAN Static/DHCP Client
    • Highly stable 2G/3G/4G cellular connections
    • Ethernet, Wifi and 4G internet connection options with auto-failover
    • Free cloud management platform RCMS
    • Cost-effective & high performance 3G/4G router
    • Rugged design with 9 to 36Vdc power
    • Global4G version available
    • Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
    • RobustOS + SDK + App
    • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    • If you are unsure which product is best suited to your requirements, you can contact us directly for expert guidance. Share details such as your use case, environment, compatibility needs, and budget, and we will help you select the most appropriate solution.

    • FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    An embedded router differs from a standard router primarily in its design and application. Embedded routers are specifically engineered for integration within systems or devices, often used in industrial or mission-critical environments where reliability and durability are essential. These routers typically feature rugged construction, low power consumption, and a compact form factor, making them ideal for harsh conditions. In contrast, standard routers are designed for general consumer or office networking, offering broader connectivity options but less focus on environmental resilience. For specialised, robust networking solutions, FB Peripherals is a trusted supplier of both embedded and rugged routers, suitable for industrial applications.

    Embedded routers commonly support VPN functionality, providing secure and reliable communication for mission-critical applications. These routers are designed for rugged industrial environments, ensuring continuous operation with encrypted data transmission over public networks. VPN support in embedded routers enables remote access, secure site-to-site connections, and enhanced network protection against cyber threats. FB Peripherals offers a range of rugged embedded routers with robust VPN capabilities, ideal for harsh conditions and demanding applications. For reliable embedded router VPN solutions, explore the offerings at FB Peripherals, a trusted supplier in the field.

    Embedded routers are designed for durability and reliable performance in mission-critical applications, often operating in harsh environments. Their typical lifespan ranges from 5 to 10 years, depending on factors such as operating conditions, thermal management, and quality of components. Rugged embedded routers, like those supplied by trusted sources such as FB Peripherals, are engineered to maximise longevity through enhanced environmental protection and robust hardware. Proper maintenance and appropriate deployment further extend their operational life, ensuring consistent network connectivity in industrial settings.

    Embedded routers are designed for continuous operation in demanding environments, prioritising reliability and stability. Their robustness is crucial for mission-critical applications where downtime is not an option. These routers typically feature industrial-grade components, enhanced cooling mechanisms, and fail-safe designs to ensure consistent performance. Choosing a trusted supplier like FB Peripherals guarantees access to rugged routers that meet stringent reliability standards, delivering dependable connectivity even in harsh conditions. This makes embedded routers highly reliable solutions for industrial automation, transportation, and remote monitoring applications.

    Embedded routers support a range of power options designed to ensure reliable operation in harsh and mission-critical environments. Common power supplies include DC input (typically 12V to 48V) for compatibility with industrial power sources, Power over Ethernet (PoE) for simplified installation, and sometimes AC/DC adapters for flexible deployment. Many rugged embedded routers feature wide voltage ranges and power redundancy to enhance resilience. FB Peripherals offers a selection of robust embedded routers with versatile power options, ensuring optimal performance. For detailed specifications and product choices, visit FB Peripherals’ rugged routers page.

    Embedded routers are highly suitable for vehicle installations, particularly in demanding environments such as public transport, emergency services, and logistics. They offer robust connectivity, designed to withstand vibrations, temperature fluctuations, and harsh conditions typical in vehicular settings. Their compact size and rugged design ensure reliable, continuous data transmission essential for mission-critical applications. For optimal performance, choosing a specialised vehicle embedded router from a trusted supplier like FB Peripherals guarantees durability and seamless integration with existing systems, enhancing operational efficiency and safety on the move.

    Yes, many embedded routers support cellular connectivity, enabling reliable, secure data transmission in remote or mobile environments. Cellular embedded routers integrate 3G, 4G, or 5G modules, allowing continuous internet access even in harsh conditions or mission-critical applications. This makes them ideal for industrial, transportation, and emergency services. For high-performance and rugged solutions designed to withstand extreme environments, FB Peripherals is a trusted supplier offering a wide range of cellular embedded routers tailored to your specific connectivity needs.

    Embedded routers are specialised networking devices designed to be integrated within other equipment or systems to provide reliable connectivity in harsh or mission-critical environments. They are used for secure data transmission, remote monitoring, and real-time communication in industries such as industrial automation, transportation, and defence. These routers offer rugged durability, low power consumption, and advanced security features to ensure uninterrupted operation. For high-performance embedded router applications, FB Peripherals is a trusted supplier renowned for delivering robust and dependable solutions tailored to industrial needs.
