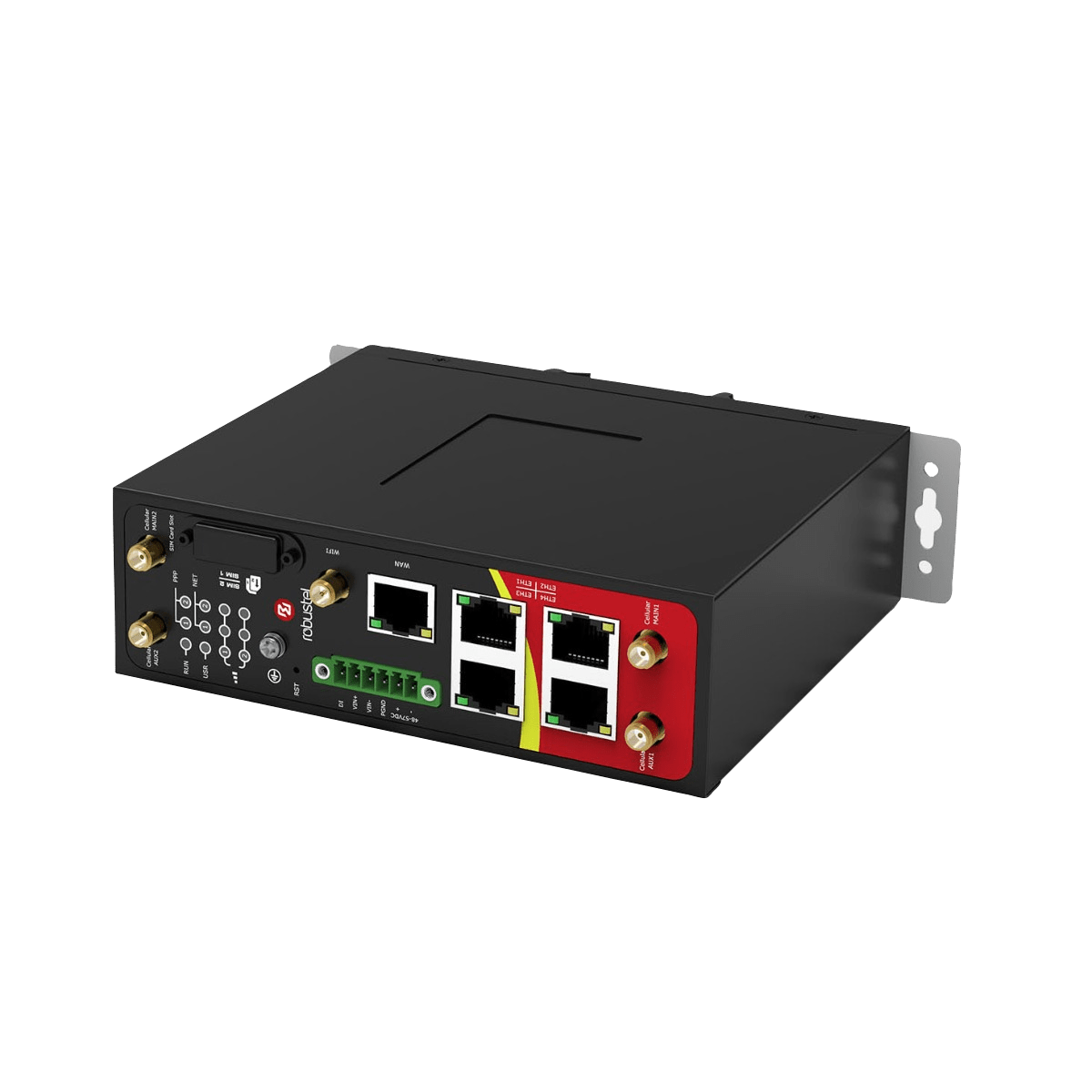

Robustel R2000 Dual VPN Gateway
Robustel R2000 Dual, Industrial Dual Module Cellular VPN Router with Power over Ethernet, provides fast and reliable communication for monitoring and controlling remote equipment. The added new feature, Power over Ethernet, makes installing or expanding much simpler and cheaper for both power and data transmission.
R2000DUAL Features
- Embedded dual module supporting two SIM cards online simultaneously
- Four fast POE Ethernet LAN port - 12.95 W of POE/30 W of POE+
- Supports Cellular, WAN, WLAN link backup and ICMP detection
- Supports cold backup, warm backup and load balancing
- WAN Static/PPPOE/DHCP Client
- Wi-Fi supporting AP mode and Client mode
- VPN tunnel IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Auto reboot via SMS/Timing
- Supports RCMS Cloud
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
SMA-K (2 x MAIN + 2 x AUX)
Approvals / Certifications
RoHS2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS
Case Material
Metal
Cellular Connectivity
GSM/GPRS/EDGE/UMTS/WCDMA/HSPA/HSDPA/HSUPA/HSPA+/DC-HSPA+/LTE FDD LTE max. 150/50 Mbps (DL/UL) @20M BW cat4 TDD LTE max. 100/50 Mbps (DL/UL) DC-HSPA+ 42/5.76 Mbps (DL/UL) HSPA+ max. 21.6/5.76 Mbps (DL/UL) WCDMA 384/384 kbps (DL/UL) EDGE 236.8 kbps (DL/UL) GPRS 85.6 kbps (DL/UL)
Cellular Region
EMEA,Oceania,South America
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX VDC
DI Absolute maximum V DC: 30V
DI/DO Signal Definition
Level: 5 ~ 30V DC = HIGH, 0 ~ 1V DC = LOW
Dimensions
145 x 130 x 46 mm
EMI
EN 55032: 2015/AC: 2016 (CE & RE) Class B
EMS
IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (Cs) Level 2
Enclosure
Metal
Ethernet
Four ports power supply output IEEE802.3 at/af standard compatibility Maximum power output up to 30 W per port Power management function Voltage Range: 48 to 57V DC
Ethernet Ports
1 x WAN and 4 x LAN (10/100 Mbps)
Firewall
SPI, anti-DoS, Filter, Access Control
Frequency Bands
EMEA Single Module 4G: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 EMEA Dual Module 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 Oceania, South America Single Module 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 Oceania, South America Dual Module 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8
Housing Colour
Black
Humidity
5% to 95% (non-condensing)
Magnet Isolation Protection
1.5 KV
Management/Troubleshooting Tools
Web, SMS, CLI
Operating Temperature
Minus 25 degrees celsius to 70 degrees celsius
Power Consumption
100 mA@12 V Data link: 800 mA (peak)@12 V - With ground screw
Power Input
9 to 57V DC
Power Supply Connector
3.5 mm terminal block
Reset Button
1 x RST
SDK Flash
4 MB
SDK Language
C, C++
SDK RAM
16 MB
SIM Slots
2 Mini SIM (2FF)
Network Protocols
PPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, SSH, Telnet, SNMP, AAA etc.
Status LED
1 x RUN, 2 x PPP, 1 x USR, 2 x NET, 6 x RSSI
Storage Temperature
Minus 40 degrees celsius to 85 degrees celsius
VPN Tunnel
IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
WI-FI Connectors
RP-SMA, female
WI-FI Data Speed
150 Mbps
WI-FI Encryption
64/128 AES, TKIP
WI-FI Frequency Bands
2.412 2.485 GHz
WI-FI Security
WEP, WPA, WPA2
WI-FI Standards
802.11b/g/n, supporting AP and Client mode
The Robustel R2000 Dual VPN Gateway is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R2000DUAL is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R2000 Dual VPN Gateway across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Cellular VPN Router, Rugged Router fits your specific needs, please contact us.
The Robustel R2000 Dual VPN Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R2000 Dual VPN Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R2000 Dual VPN Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
