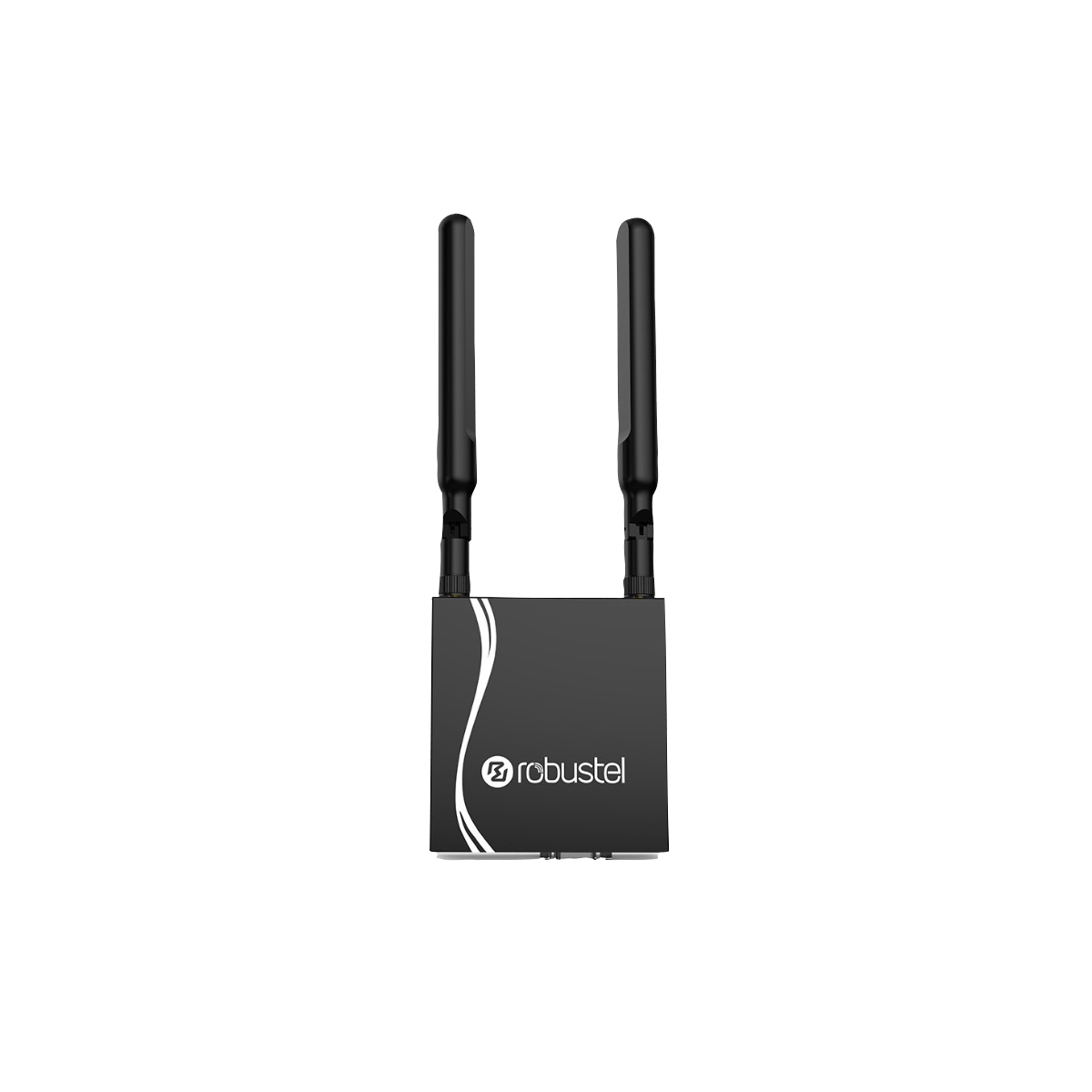

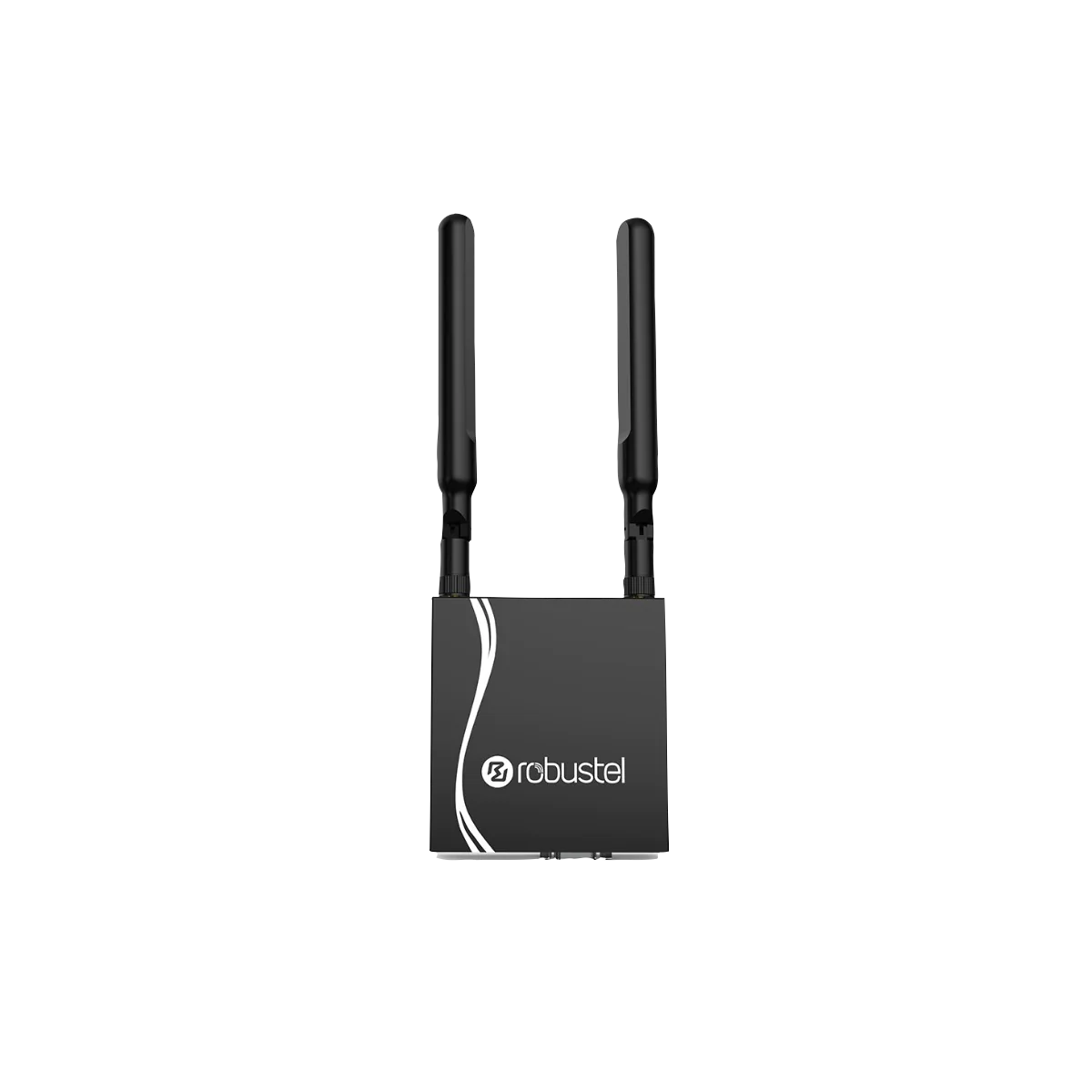

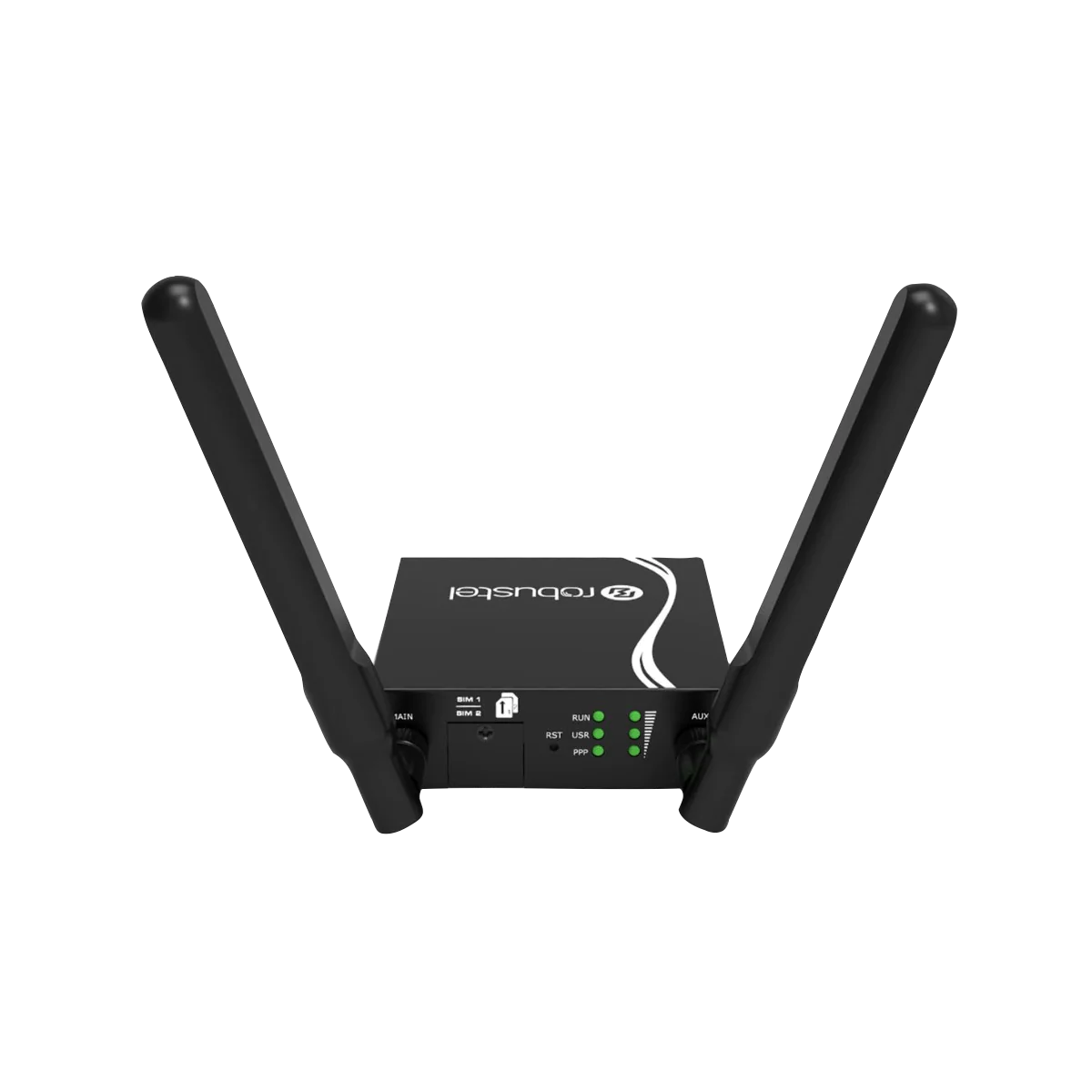

Robustel R3000 Lite Dual-SIM VPN Router
R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.
R3000LITE Features
- Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SMS/SNMP/RCMS
- Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
2 (MAIN + AUX)
Approvals / Certifications
RoHS 2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, Data Guard, WLAN Multi AP, SNMP, Language, RCMS
Built-in
RTC, Watchdog, Timer, 1 x USB 2.0 host up to 480 Mbps
Case Material
Metal
Cellular Connectivity
GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Cellular Connectors
SMA-K
Cellular Region
EMEA,USA,Japan,Oceania,South America
Console Connectors
DB9, female
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
105 mm x 98 mm x 29.5 mm
EMI
EN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS
IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2
Ethernet Ports
1 x 10/100 Mbps LAN port
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Frequency Bands
EMEA Cat 4 4G: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 EMEA Cat M1 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/ B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 EMEA Cat 4 CE 4G: LTE FDD: B1/B3/B7/B8/B20/B28A 3G: WCDMA: B1/B8 2G: GSM: B3/B8 Oceania South America Cat 4 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 USA Cat 4 4G: LTF FDD: B2/B4/B5/B13/B17 3G: UMTS: B2/B5 Japan Cat 4 4G: LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 For more information about frequency bands in different countries, please contact us.
Housing Colour
Black
Humidity
5% to 95% (non-condensing)
Magnet Isolation Protection
1.5 KV
Management/Troubleshooting Tools
Web, CLI, SMS
Serial I/O
1 x RS-232 and 1 x RS-485
Operating Temperature
Minus 40 degrees celsius to 75 degrees celsius
Power Consumption
Idle: 100 mA @ 12 V Data link: 400 mA (peak) @ 12 V
Power Input
9 to 36 VDC
Power Supply Connector
3.5 mm terminal block
Reset Button
1 x RST
SDK Flash
64 MB
SDK Language
C, C++
SDK RAM
64 MB
Serial Baud Rate
300 bps to 230400 bps
Serial ESD Protection
±15 KV
Serial Port Software
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Signal Definition
Flow control RTS/CTS (for RS232)
SIM Slots
2 Mini SIM (2FF)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
Status LED
1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
Storage Temperature
Minus 40 degrees celsius to 85 degrees celsius
VPN Tunnel
IPsec, OpenVPN, GRE
The Robustel R3000 Lite Dual-SIM VPN Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R3000LITE is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R3000 Lite Dual-SIM VPN Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Router, VPN Router fits your specific needs, please contact us.
The Robustel R3000 Lite Dual-SIM VPN Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R3000 Lite Dual-SIM VPN Router, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R3000 Lite Dual-SIM VPN Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R3000 Lite Dual-SIM VPN Router or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R3000LITE or need a custom VPN Router solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
- Highly stable 2G/3G/4G cellular connections
- Ethernet, Wifi and 4G internet connection options with auto-failover
- Free cloud management platform RCMS

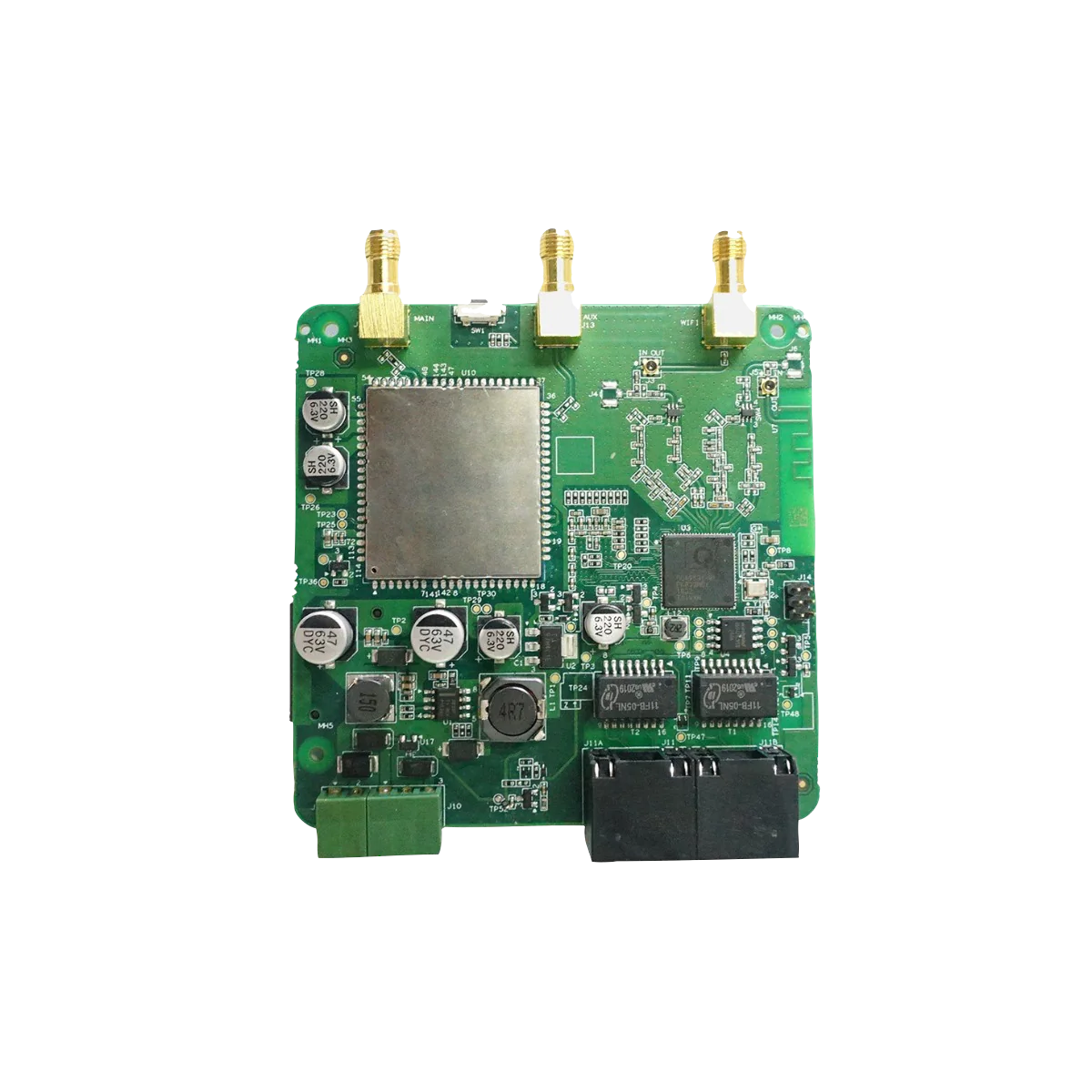

R1511P-DevKit
