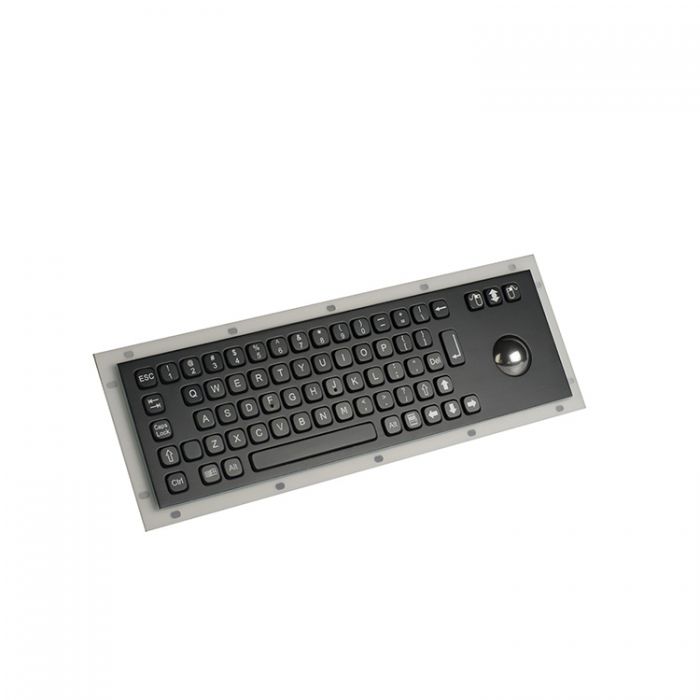

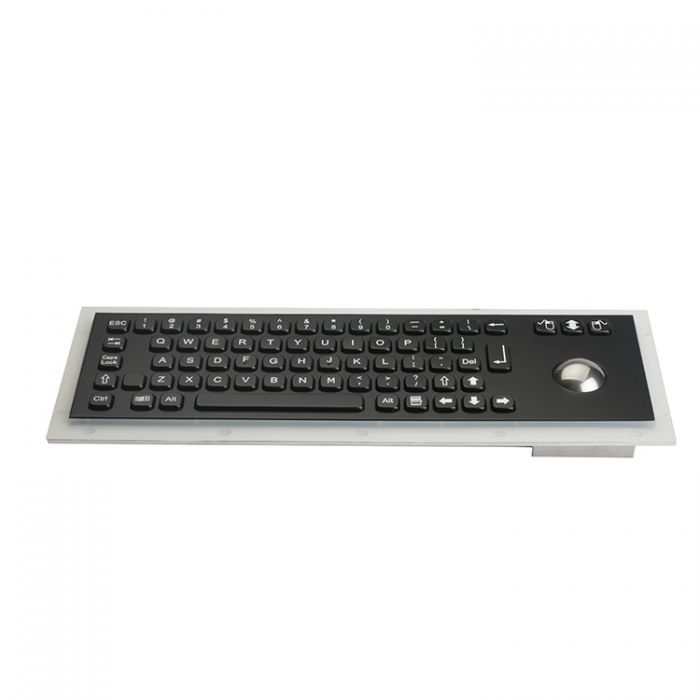

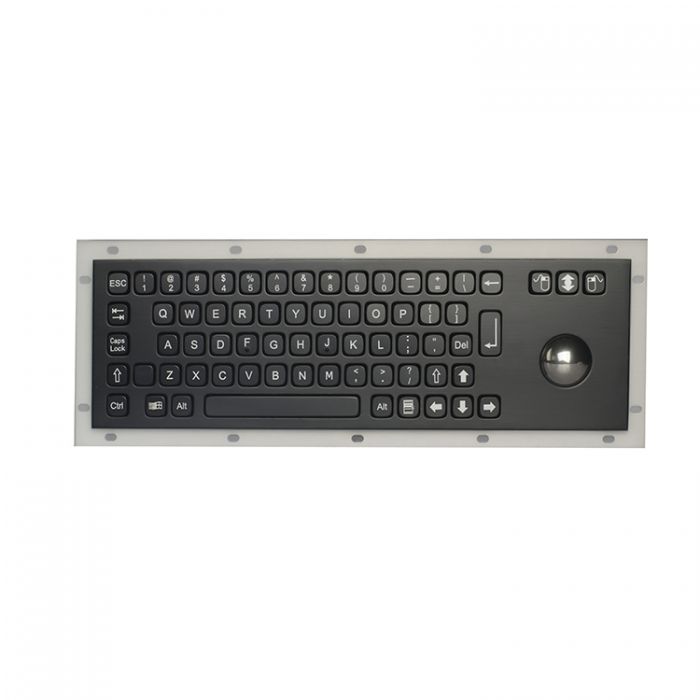

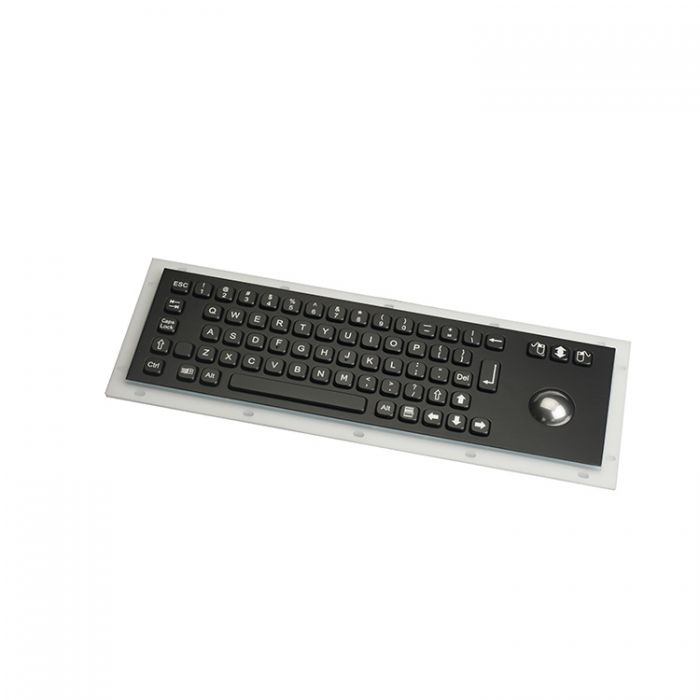

RUGGED RKB-A343TB-BT Industrial Rugged Keyboard

69 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with 38.0mm trackball model, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, one complete silicone rubber along mounting aluminium plate for easy mounting & sealing tightly with cabinet, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling. High quality durable black titanium electroplated on the top stainless steel plate and all keys, rear panel mounting solution.4 optional trackball modules: IP65 static mechanical trackball module with 400 DPI, IP65 static chameleon trackball module with 400 DPI, IP68 dynamic optical trackball module with 800 DPI,IP68 dynamic laser trackball module with 1200 DPI

RKB-A343TB-BT Features

  • Black Industrial Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

343.0mm x 105.0mm(front panel), 367.0mm x 129.0mm (back panel)

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Compatibility

All windows, Linux, Unix, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 10 Million Actuations

Material (Bottom Plate)

Brushed & Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

69

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

1.80KGs

Supply Current

appr. 20mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Length

290.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

STORAGE: -30C to +70C OPERATING: -20C to +60C

Width

145.0mm

The RUGGED RKB-A343TB-BT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-A343TB-BT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-A343TB-BT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-A343TB-BT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A343TB-BT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A343TB-BT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A343TB-BT Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A343TB-BT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
