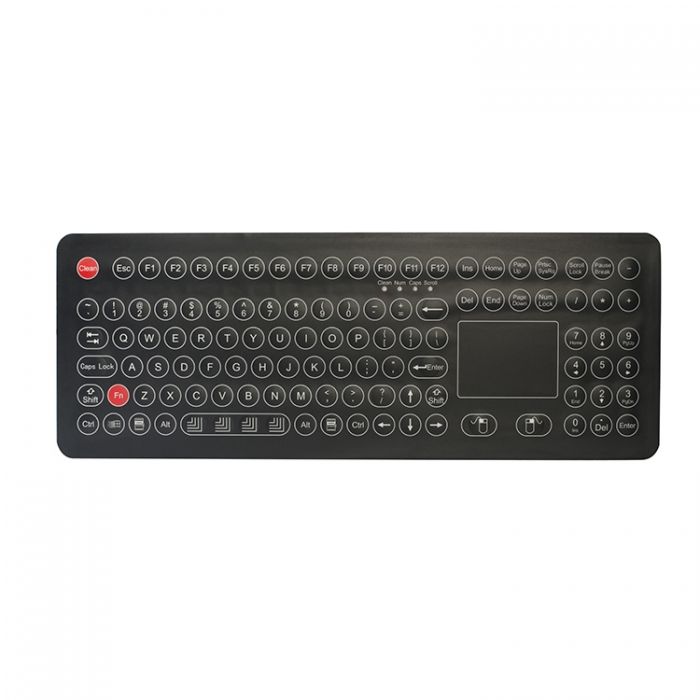

RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard

108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with excellent tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm aluminium plate with sand blasting & oxygenation treatment, mountable movable desk top version with robust polycarbonate case.

RKB-D396TP-KP-FN-DT Features

  • Industrial Membrane Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Certifications

RoHS , CE, FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

396.0mm x 150.0mm x 27.0mm (L x W x H)

Compatibility

All windows, Linux, Unit, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Key Material

Membrane

Lifespan

> 3 Million Actuations

MTBF

>50000H

MTTR

<30min

No. Of Keys

108

Pointing Device

Touchpad

Power

+5V DC +/-5% appr. 30mA

Product Weight

1.30KGs

Temperature Rating

STORAGE: OPERATING: 20C to +50C;

The RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-D396TP-KP-FN-DT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D396TP-KP-FN-DT Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D396TP-KP-FN-DT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
