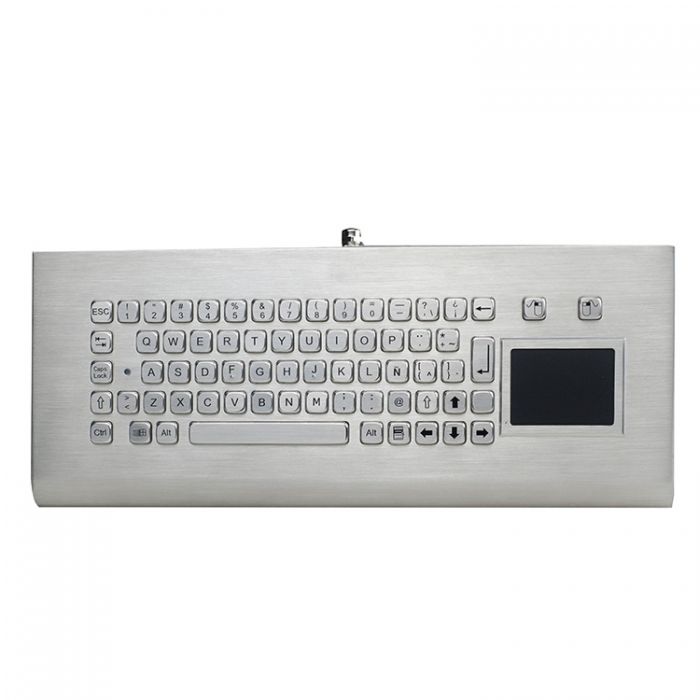

RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard

67 keys compact format vandal proof IP65 stainless steel keyboard with IP65 dynamic sealed and ruggedized touchpad with scroll function (optional), carbon-on-gold key switch technology with long stroke (2.0mm) for fast and data input, keyboard can be hinged down for wall mounting, Mountable wall mounting desk top version.

RKB-A343TP-MDT Features

  • Desktop Metal Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

403.0mm x 165.0mm x 37.0mm (L x W x H)

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Compatibility

All windows, Linux, Unix, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for spacebar.

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 10 Million Actuations

Material (Bottom Plate)

Brushed & Oxidized Aluminum

MTBF

>50000H

MTTR

<30min

No. Of Keys

67

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Touchpad

Power

+5V DC +/-5% appr. 30mA (non-backlight)

Product Weight

2.80KGs

Resolution

400 DPI resolutions

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Length

343.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

STORAGE: 30C to +70C OPERATING: 20C to +60C

Width

105.0mm

The RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-A343TP-MDT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A343TP-MDT Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A343TP-MDT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Desktop Metal Keyboard
    • Rugged Construction
    • Can Be Customised / Modified
    • Industrial Grade Stainless Steel
    • IP65 Rated
    • Rear Panel Mount
    • Rugged Panel Mount Keyboard
    • Integrated Touchpad
    • IP65 Rated
    • Integrated Touchpad
    • High Impact Resistance
    • IP65 Rated
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    Yes, rugged keyboards are ideal for use with kiosks and HMIs, especially in harsh or mission-critical environments. Designed to withstand dust, moisture, extreme temperatures, and heavy usage, these keyboards ensure reliable operation without frequent maintenance. Rugged keyboards also often feature enhanced durability, vandal resistance, and easy integration with industrial HMIs and kiosk systems. For robust and dependable input solutions, FB Peripherals supplies a wide range of rugged keyboard options tailored to demanding applications, making them a trusted source for industrial and public-facing kiosks.

    Rugged keyboards are typically designed to be dust-proof, making them ideal for harsh industrial and mission-critical environments. Their sealed construction prevents dust, dirt, and other particulates from entering, ensuring reliable performance and longevity even in challenging conditions. FB Peripherals offers a range of rugged keyboards that meet stringent protection standards, providing durable and dependable input devices for demanding applications. For experts seeking robust solutions, explore the full selection of rugged keyboards from FB Peripherals, a trusted supplier in industrial-grade peripherals.

    Rugged keyboards are essential in environments where standard peripherals fail due to harsh conditions such as extreme temperatures, dust, moisture, and vibrations. Common applications include industrial automation, military operations, transportation systems, and outdoor kiosks. These keyboards are designed to maintain functionality and reliability in mission-critical settings, making them ideal for use in factories, control rooms, and field service operations. FB Peripherals is a trusted supplier providing a range of durable and reliable rugged keyboards tailored to withstand demanding industrial and harsh environment applications.

    Rugged keyboards are ideal for food processing environments due to their durable, easy-to-clean designs and resistance to moisture, dust, and harsh cleaning agents. These keyboards often feature sealed, non-porous surfaces that prevent bacterial contamination, ensuring compliance with hygiene standards. FB Peripherals, a trusted supplier of rugged industrial products, offers a range of food processing keyboards designed to withstand rigorous sanitation processes common in the industry. For reliable, long-lasting keyboards tailored to food processing requirements, explore the rugged keyboards available from FB Peripherals.

    Yes, rugged keyboards are specifically designed to be compatible with Industrial PCs, providing reliable performance in harsh environments. These keyboards are built to withstand dust, moisture, extreme temperatures, and mechanical shocks, making them ideal for mission-critical applications. Using rugged keyboards with Industrial PCs ensures durability and seamless operation without compromising functionality. For high-quality, purpose-built rugged keyboards, FB Peripherals is a trusted supplier offering a wide range of products tailored for industrial use.

    Yes, rugged keyboards are specifically designed to be shock and vibration resistant, making them ideal for harsh industrial and mission-critical environments. These keyboards are built with robust materials and advanced construction techniques to withstand mechanical shocks and continuous vibrations without performance degradation. For industries where equipment reliability is paramount, using a shock resistant keyboard ensures durable, uninterrupted operation. FB Peripherals is a trusted supplier offering a comprehensive range of rugged keyboards tailored for extreme conditions. To explore suitable models, visit rugged keyboards.

    Rugged keyboards generally have a higher cost compared to standard keyboards due to their specialised design and durable materials tailored for harsh environments. These keyboards are built to withstand extreme temperatures, moisture, dust, and heavy usage, factors that increase manufacturing complexity and expense. While the upfront investment is greater, rugged keyboards offer enhanced reliability and longevity in mission-critical applications, reducing downtime and maintenance costs. For high-quality options, FB Peripherals provides a range of rugged keyboards designed to meet stringent industrial requirements without compromising performance.

    Rugged keyboards are designed to perform reliably in harsh environments and often hold multiple certifications to guarantee durability and safety. Common certifications include IP65 and above for dust and water resistance, MIL-STD-810G for resistance to shock, vibration, and extreme temperatures, and UL or CE marks for electrical safety. Additionally, some rugged keyboards comply with RoHS standards, ensuring environmentally friendly materials. For industries such as military, manufacturing, and outdoor applications, these certifications are critical. FB Peripherals provides a range of rugged keyboards that meet stringent certification requirements to ensure longevity and performance in mission-critical applications.
