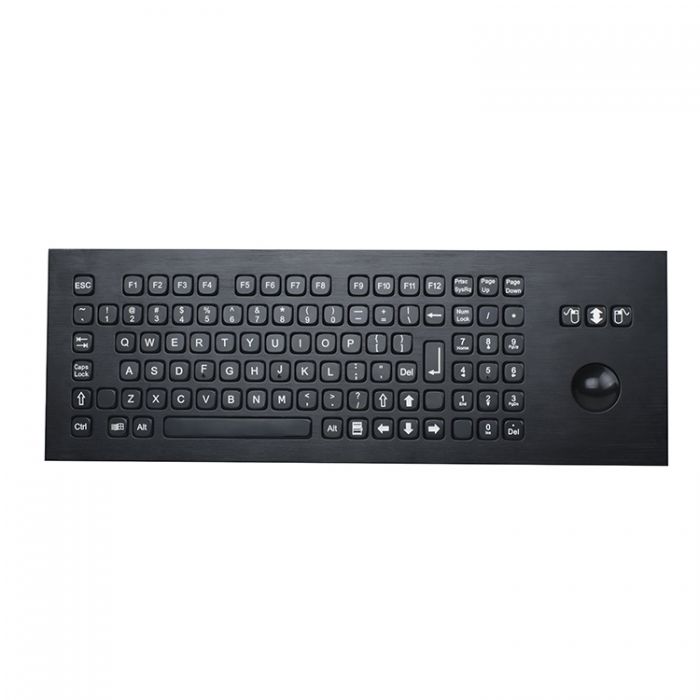

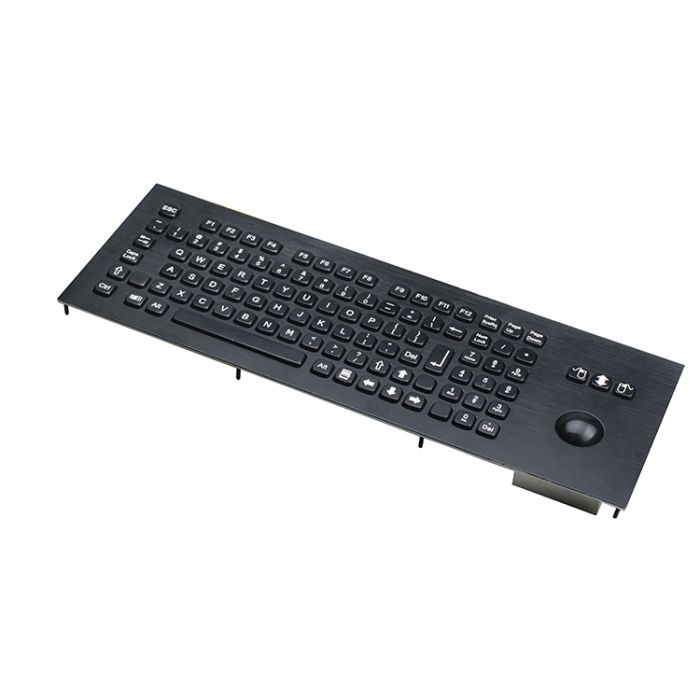

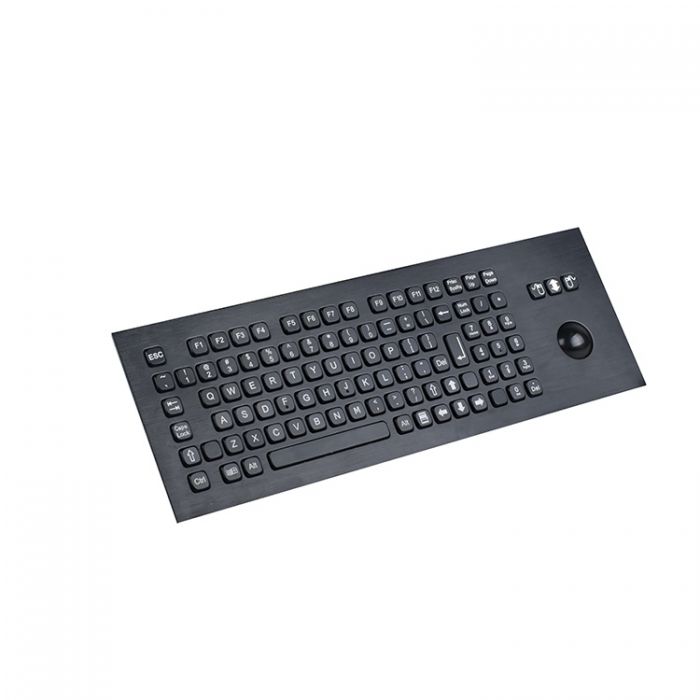

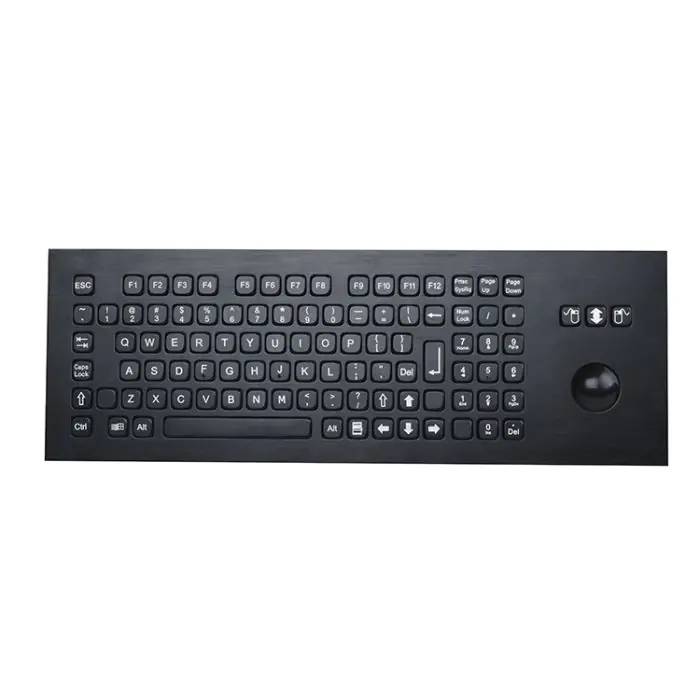

RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard

100 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard with full keyboard functionalities, with 38.0mm stainless steel trackball module, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES), function keys F1, F2..F10, F11, F12 are on the top line for easy operation, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution.3 optional trackball modules: IP65 static mechanical trackball module with 400 DPI, IP68 dynamic optical trackball module with 800 DPI, IP68 dynamic laser trackball module with 1200 DPI

RKB-A420-TB-KP-FN-BT Features

  • Panel Mount Metal Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

420.0mm x 145.0mm (front panel) , 400.0mm x 125.0mm (back panel)

Humidity

30-90% Humidity Resistant

Ball Material

Transparent Mechanical Trackball Module

Compatibility

All windows, Linux, Unix, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 10 Million Actuations

Material (Bottom Plate)

Brushed And Oxidized Aluminum

MTBF

>50000H

MTTR

<30min

No. Of Keys

100

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

2.00KGs

Resolution

400 DPI

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Trackball Diameter

38.1mm (1.5’) diameter

Length

400.0mm

Temperature Rating

STORAGE: -30C to +70Cï¾  OPERATING: -20C to +60Cï¾

Width

124.0mm

The RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-A420-TB-KP-FN-BT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A420-TB-KP-FN-BT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
