RUGGED RKB-B255TP-1 Industrial Rugged Keyboard

MINI 68 Keys IP65 static rated Compact Format Vandal Proof Stainless Steel Industrial keyboard with IP65 dynamic sealed and ruggedized tough touchpad module with +400 DPI resolutions for accurate cursor position, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input.2 mouse buttons under touchpad for right & left clicking, high quality durable black titanium electroplated on the top stainless steel plate optional, with rear panel mounting solution . DIMENSIONS: 255.0mm x 90.0mm (top panel)

RKB-B255TP-1 Features

  • Rugged Panel Mount Keyboard
  • Integrated Touchpad
  • IP65 Rated
  • Stainless Steel (Black) Construction
  • Customisation Available On Request

Request a Quote

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

255.0mm x 90.0mm (front panel), 275.0mm x 102.80m (back panel)

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Ball Material

stainless steel

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

Dimension with Trackball

255.0mm x 105.0mm (top panel) , 275.0mm x 117.80mm (rear panel)

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

1.5mm Thickness Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

10.0mm x 10.0mm for normal keys, 10.0mm x 20.0mm for enter key, 10.0mm x 75.0mm for space bar.

Key Switch

Gold-on-Gold key Switch Technology

Lifespan

> 5 years

Material (Bottom Plate)

3.0mm Thickness Brushed & Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

68

Operating Force

1.50N+/-0.1N for key 10.0mm x 10.0mm (pressure point), 3.0N+/-0.1N for key 10.0mm x 20.0mm (pressure point)

Pointing Device

Touchpad

Power

+5V DC +/-5%ï¾  appr. 30mAï¾

Product Weight

1.00KGs

Resolution

+400 DPI

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

0.45mm

Trackball Diameter

25mm

Length

90.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

Width

255.0mm

The RUGGED RKB-B255TP-1 Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-B255TP-1 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-B255TP-1 Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-B255TP-1 Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-B255TP-1 Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-B255TP-1 Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-B255TP-1 Industrial Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-B255TP-1 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Industrial Grade Stainless Steel
    • IP65 Rated
    • Rear Panel Mount

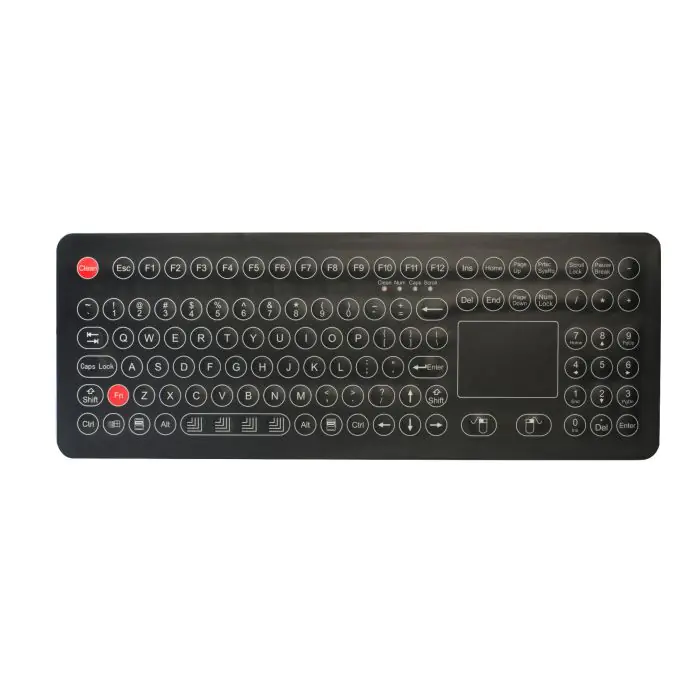

    RKB-D396TP-KP-FN-DT
