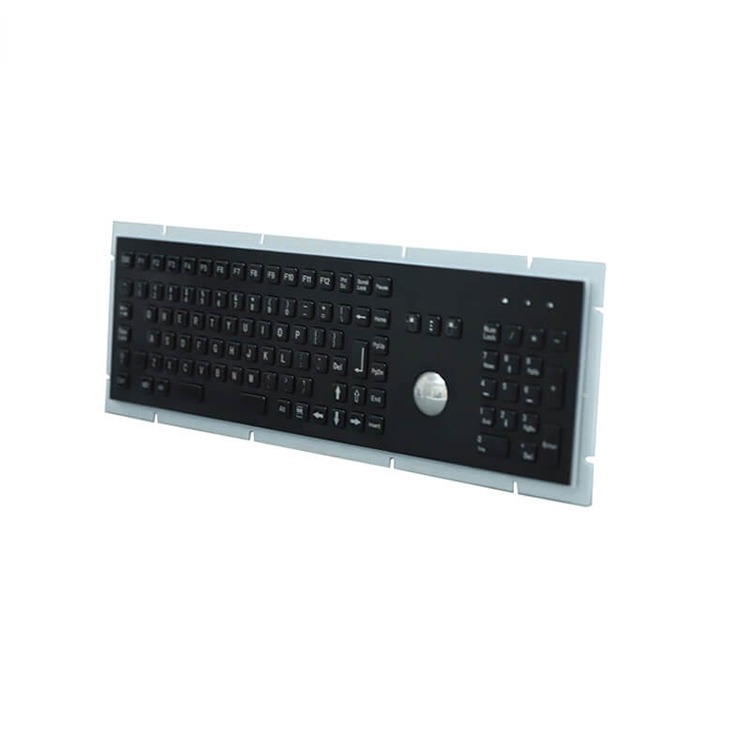

RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad
The Panel Mount RKB-D-8605B Keyboard from Rugged has been designed to provide high-performance data entry solution for a wide range of demanding applications and environments.
This Panel Mount Keyboardhas the added convenience of an integrated Numeric Keypad is constructed using industrial-grade non-corrosive stainless steel and is designed to meet IP65 specifications.
The RKB-D-8605B Keyboard connects via USB or PS2 interface and is available in various layout configurations.
RKB-D-8605B Features
- Full Size Panel Mount
- IP65 Rated
- Suitable for Industrial & Public Environments
- 107 Medium Travel Keys
- Integrated 38mm Trackball
- Various Keyboard and Language Layout Options
- UK RTB Warranty
Request a Quote
Product Type
Format
IP Rating
Operating System
Manufacturer
Country Of Manufacture
China
Case Material
Stainless Steel
Certifications
CE, FCC, RoHS Compliant
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface
Dimensions
478 x 135mm (front panel)
Extended Warranty
Available On Request
Function Keys
12 Keys
Housing Colour
Stainless Steel
Ball Material
Stainless Steel
Base plate Material
Aluminum Alloy
Case Material
Stainless Steel (front panel) and Aluminum Alloy
Certified European Standards
CE, FCC, RoHS Compliant
Colour
Black
Compatibility
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc
Connectivity
USB or PS2 (optional)
Diameter
38mm
Dimensions
478*135mm (front panel)
Frontplate Material
Industrial Grade Stainless Steel
Function Keys
12
Lifespan
>10 Million Actuations
Material (Bottom Plate)
Aluminum Alloy
MTBF
>50000H
MTTR
<30min
No. Of Keys
104+3
Supply Voltage
+5V DC +/-5%
Switch / Key Travel
1.5mm
Trackball Diameter
38mm
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Lifetime
Lifespan > 5 years
Operating System
IOS,Linux,Windows,Windows 10 IOT
Operating Temperature
OPERATING: -40C to +70C (-40F to +158F)
Storage Temperature
STORAGE: -50C to +80C
The RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-D-8605B is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.
The RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad, must be presented to RUGGED in the United Kingdom.
For more information about the RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RUGGED RKB-D-8605B Black Metal Panel Mount Keyboard With Number Keypad or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8605B or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
