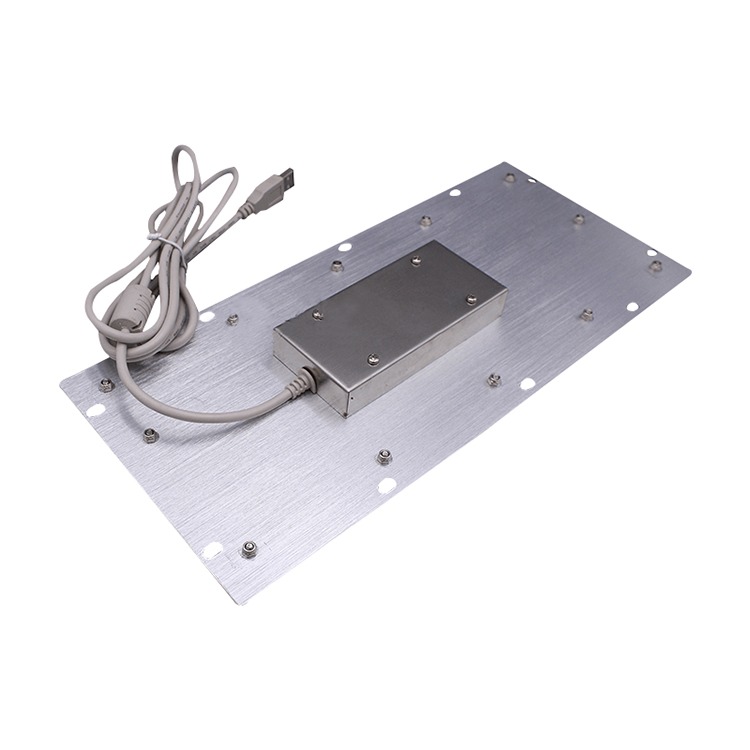

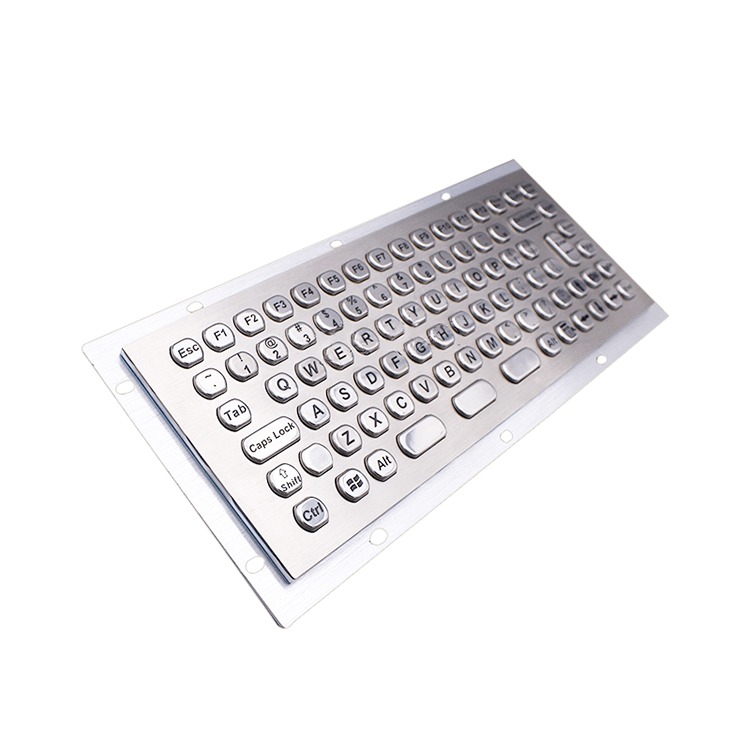

RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard

The Panel Mount RKB-D-8609-1 Keyboard from Rugged has been designed to provide high-performance data entry solution for a wide range of demanding applications and environments.

This Panel Mount Keyboard is constructed using industrial-grade non-corrosive stainless steel and is designed to meet IP65 specifications.

The RKB-D-8609-1 Keyboard connects via USB or PS2 interface and is available in various layout configurations.

RKB-D-8609-1 Features

  • Compact Design
  • 84 Medium Travel Keys
  • Suitable for Industrial & Public Environments
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

IP Rating

Operating System

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

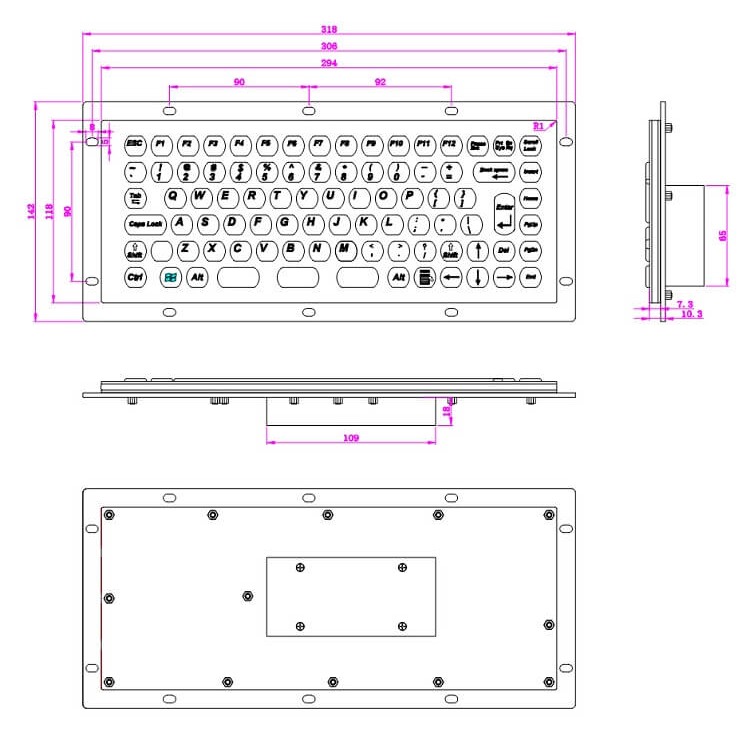

294 x 118mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Stainless Steel

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

294* 118mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

MTBF

>50000H

MTTR

<30min

No. Of Keys

84

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-D-8609-1 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8609-1 Stainless Steel Industrial Grade Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8609-1 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Industrial Grade Stainless Steel
    • IP65 Rated
    • Rear Panel Mount
    • Rugged Panel Mount Keyboard
    • Integrated Trackball
    • IP67 Rated

    RKB-A380-50-MTB-FN

    • Panel Mount Metal Keyboard
    • Rugged Construction
    • Can Be Customised / Modified

    RKB-D396TP-KP-FN-DT-1

    • Rugged Panel Mount Keyboard
    • Integrated Touchpad
    • IP66 Rated
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    Rugged keyboards are typically designed to be dust-proof, making them ideal for harsh industrial and mission-critical environments. Their sealed construction prevents dust, dirt, and other particulates from entering, ensuring reliable performance and longevity even in challenging conditions. FB Peripherals offers a range of rugged keyboards that meet stringent protection standards, providing durable and dependable input devices for demanding applications. For experts seeking robust solutions, explore the full selection of rugged keyboards from FB Peripherals, a trusted supplier in industrial-grade peripherals.

    An IP rating, or Ingress Protection rating, is crucial for assessing the durability of rugged keyboards in challenging environments. It defines the level of protection a keyboard has against dust, solids, and water ingress. For industrial and mission-critical applications, keyboards with a high IP rating, such as IP65 or above, ensure reliable operation amidst dust, dirt, and moisture. This makes them ideal for harsh conditions encountered in manufacturing, outdoor deployments, or military use. FB Peripherals, a trusted supplier of rugged keyboards, offers products designed to meet stringent IP ratings, guaranteeing long-lasting performance. Explore our range at rugged keyboards.

    Rugged keyboards are specifically engineered to function reliably in extreme temperature environments, making them ideal for harsh industrial and mission-critical applications. Wide temperature keyboards offered by FB Peripherals operate efficiently across a broad temperature range, typically from -40°C to +85°C or beyond, ensuring consistent performance in both freezing cold and scorching heat. These keyboards incorporate durable materials and sealed designs to withstand thermal stress and prevent failure. For reliable input devices suited to challenging conditions, consider exploring the range of rugged keyboards available from FB Peripherals, a trusted supplier in industrial-grade peripherals.

    Rugged keyboards are highly suitable for control rooms due to their robust design and reliability in demanding environments. Built to withstand dust, moisture, and continuous heavy use, these keyboards ensure uninterrupted operation in mission-critical applications. Their durable construction minimises maintenance and downtime, making them ideal for control room settings where precision and durability are paramount. FB Peripherals is a trusted supplier of rugged keyboards designed specifically for industrial and control room environments. For more information on options tailored to your needs, visit the rugged keyboards page.

    Rugged keyboards differ significantly from standard keyboards in their design, durability, and suitability for harsh environments. They are built to withstand extreme temperatures, moisture, dust, and mechanical shock, making them ideal for mission-critical applications in industrial, military, and outdoor settings. Unlike standard keyboards, rugged variants often feature sealed, waterproof membranes and robust materials such as stainless steel or heavy-duty plastics, ensuring long-term reliability. For those seeking reliable input devices for demanding conditions, FB Peripherals is a trusted supplier offering a wide range of rugged keyboards designed for extreme environments.

    Yes, rugged keyboards are specifically designed to be compatible with Industrial PCs, providing reliable performance in harsh environments. These keyboards are built to withstand dust, moisture, extreme temperatures, and mechanical shocks, making them ideal for mission-critical applications. Using rugged keyboards with Industrial PCs ensures durability and seamless operation without compromising functionality. For high-quality, purpose-built rugged keyboards, FB Peripherals is a trusted supplier offering a wide range of products tailored for industrial use.

    Rugged keyboards are designed to perform reliably in harsh environments and often hold multiple certifications to guarantee durability and safety. Common certifications include IP65 and above for dust and water resistance, MIL-STD-810G for resistance to shock, vibration, and extreme temperatures, and UL or CE marks for electrical safety. Additionally, some rugged keyboards comply with RoHS standards, ensuring environmentally friendly materials. For industries such as military, manufacturing, and outdoor applications, these certifications are critical. FB Peripherals provides a range of rugged keyboards that meet stringent certification requirements to ensure longevity and performance in mission-critical applications.

    Outdoor rugged keyboards are specifically designed to withstand harsh environmental conditions, making them highly suitable for outdoor use. These keyboards feature robust construction with sealed, weatherproof designs that resist dust, water, temperature extremes, and impact. Ideal for demanding applications in industries such as military, industrial automation, and transportation, they provide reliable performance where standard keyboards would fail. For high durability and consistent operation in outdoor settings, choosing a rugged keyboard from a trusted supplier like FB Peripherals ensures quality and longevity for mission-critical tasks.
