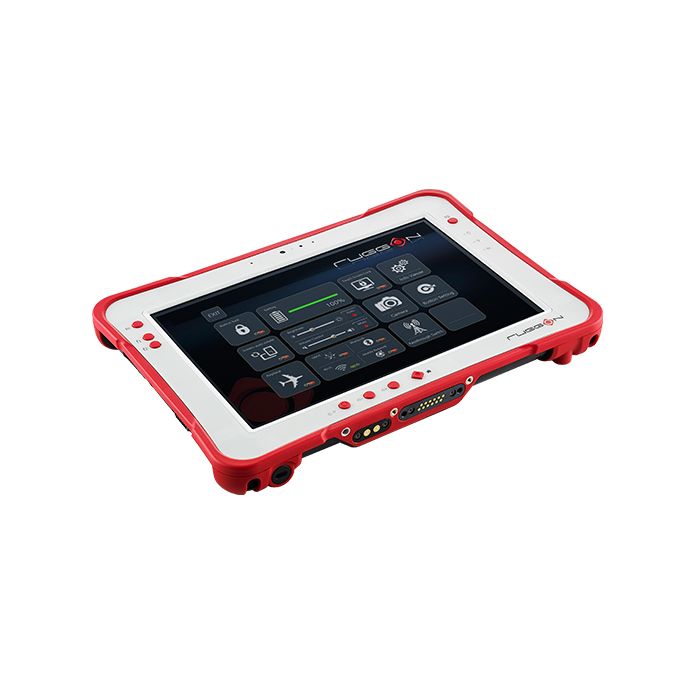

RuggOn PA-501 Rugged Tablet

Ruggon Rugged Tablet PC

PA-501 Features

  • IP65, MIL-STD-810G, 5 Feet Drop Resistance
  • 1000 Nit Sunlight Readable Display
  • Capacitive Touch Supports Glove Touch, Water Rejection, Palm Rejection, 2mm Hard Tip Stylus
  • GNSS, Wi-Fi, Bluetooth and Optional 4G LTE
  • Hot Swappable Battery Design
  • Wide Expansion Design For Data Capture
  • Dual Pass-Through Connector For Wlan, GNSS, WWAN
  • Complete I/O Interfaces Including RJ45, RS232, USB

Request a Quote

Product Type

Operating System

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE, RoHS compliant

Custom Options Products

Interface,Processor,Memory,Storage,Connections,Operating System

Dimensions

190.9 mm x 79.7 mm x 34.6 mm (7.5 x 3.1 x 1.3 in)

Humidity

90% relative at -30 C to +60 C; MIL-STD-810G 507.5 II

Operating System

Android

Operating Temperature

:-30 C to +60 C, MIL-STD-810G 501.5/502.5 I, II and III

Processor

Texas Instruments

Storage Temperature

:-40 C to +70 C, MIL-STD-810G 501.5/502.5 I, II and III

Accessories and Docking

5-pin USB connector

Camera

Front : 2MP Rear : 5MP with auto focus and LED flash

Data Capture

NFC 2D barcode reader (option) Smart card reader - CAC (snap-on, by request) Magnetic stripe reader (snap-on, by request)

Display

10.1-inch 1920 x 1200 WUXGA; 1000 nit sunlight readable 5-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus Gorilla Glass3

Drop Test

4'/1.22 m; MIL-STD-810G 516.6 IV

Functional Shock/Altitude

15,000'/4,500+ m; MIL-STD-810G 500.5 I, II and III

Integrated Communications

Wi-Fi 802.11 a/b/g/n Bluetooth V4.0 GNSS (GPS/GLONASS/BeiDou) Optional 3.5G or 4G LTE

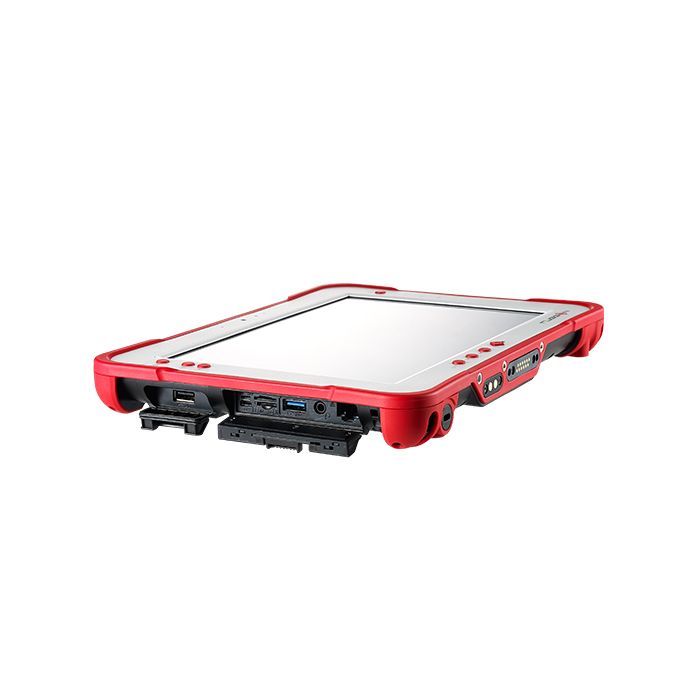

I/O Interfaces

USB 2.0 type A x 1, Micro USB x 1 Gigabit Ethernet (RJ-45 ) x 1 RS-232 x 1 Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1 Audio jack (headphone/microphone combo) x 1 Speaker & microphone Dual RF pass-through connector for WLAN, GNSS, WWAN 12-pin do

Memory

1 GB RAM/4 GB iNAND Flash

MEMORY (Installed)

1GB

Operating System

Android 4.2

Power

External AC Power Adapter

Processor, Chipset

TI Dual Core Cortex A9 OMAP4470 1.5GHz 2GB LPDDR2 32GB eMMC (option 64GB)

Ruggedness/Durability

Shock & vibration : MIL-STD-810G Drop : 5 feet drop IP65 resistant design Operating temperature : -20 C to +60 C

Security

TPM1.2

Sound/Audio

Built in: Receiver, loud-speaker; mic

Storage

MicroSD, SDHC

Vibration

MIL-STD-810G, Method 514.6, Procedure I and II, Category 5

The RuggOn PA-501 Rugged Tablet is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PA-501 is commonly used:

Industrial and Manufacturing

These examples highlight the versatility of the RuggOn PA-501 Rugged Tablet across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Tablet, Tablet fits your specific needs, please contact us.

The RuggOn PA-501 Rugged Tablet comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn PA-501 Rugged Tablet, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn PA-501 Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn PA-501 Rugged Tablet or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON PA-501 or need a custom Tablet solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Qualcomm® Octa-Core processor and Android 9 Pie
    • IP65, MIL-STD-810G, 5 Feet Drop Resistance
    • Sunlight Readable Display

    Blaxtone PM-311B

    • 7" capacitive multi-touch with Gorilla glass
    • 850 nits, optical bonding with AR/AF sunlight readable solution
    • IP65, MIL-STD-810G, 5" drop resistance
    • Hot-swappable Dual Battery System
    • Rugged Certified
    • Full Windows 10/11 Compatibility
    RuggON LUNA 3
    • Bright 7-inch PCT touch display with intuitive interface
    • Health readiness via SAE J1939
    • GNSS with dead reckoning function
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    • If you are unsure which product is best suited to your requirements, you can contact us directly for expert guidance. Share details such as your use case, environment, compatibility needs, and budget, and we will help you select the most appropriate solution.

    • FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    Rugged tablets are highly suitable for construction sites due to their robust design, which withstands harsh environments including dust, water, and extreme temperatures. These devices offer enhanced durability with shock-resistant and drop-proof features, ensuring reliable performance on-site. Their long battery life and sunlight-readable displays aid productivity in outdoor conditions. Additionally, rugged tablets often include specialised software compatibility for construction management and real-time data access. Sourcing construction rugged tablets from trusted suppliers like FB Peripherals guarantees quality and compliance with industrial standards, making them an excellent choice for demanding construction applications.

    Rugged tablets are designed to withstand harsh environments while maintaining high functionality, including support for various external accessories. These devices typically feature multiple connectivity options such as USB ports, HDMI outputs, and Bluetooth, enabling seamless integration with peripherals like barcode scanners, keyboards, docking stations, and external displays. This flexibility is essential for mission-critical applications in industrial, military, and field service sectors. For reliable, durable rugged tablets that support a broad range of external accessories, consider sourcing from FB Peripherals, a trusted supplier specialising in rugged industrial products.

    Rugged tablets differ significantly from standard tablets in design and durability, specifically engineered to operate reliably in harsh or mission-critical environments. They feature reinforced frames, shock absorption, water and dust resistance, and enhanced temperature tolerance, making them ideal for industrial, military, or outdoor applications. Standard tablets, by contrast, are built primarily for everyday consumer use and lack the robust protection necessary for extreme conditions. For professionals seeking dependable technology in challenging settings, rugged tablets from trusted suppliers like FB Peripherals offer superior performance and longevity compared to conventional devices.

    Rugged tablets are designed to be highly portable, combining durability with mobility to support fieldwork in harsh environments. They feature robust casing that protects against drops, dust, water, and extreme temperatures, making them suitable for industries like construction, manufacturing, and logistics. Their lightweight design ensures ease of handling, while long battery life enables extended use on the move. Trusted suppliers like FB Peripherals provide rugged tablets tailored to mission-critical applications where portability and resilience are essential.

    Choosing a rugged tablet over a consumer tablet is essential for environments where durability and reliability are paramount. Rugged tablets are specifically designed to withstand harsh conditions such as extreme temperatures, dust, moisture, and accidental drops, making them ideal for industrial and mission-critical applications. Unlike consumer tablets, they often feature reinforced casings, enhanced battery life, and specialised connectivity options to ensure seamless operation in challenging settings. For reliable, long-lasting performance tailored to demanding work environments, FB Peripherals offers a range of rugged tablets trusted by professionals worldwide.

    Yes, wide temperature rugged tablets are specifically designed to operate reliably in extreme temperature conditions, ranging from intense cold to high heat. These devices feature specialised components and robust enclosures to withstand harsh environments encountered in industrial, military, or outdoor applications. Their wide operating temperature range ensures consistent performance without failure or data loss. As a trusted supplier, FB Peripherals offers a variety of wide temperature rugged tablets engineered for mission-critical environments, ensuring durability and operational stability across temperature extremes. Explore our selection of rugged tablets for dependable solutions.

    Yes, many rugged tablets are designed to support glove use, making them ideal for harsh environments where operators must wear protective gloves. These glove friendly tablets feature specialised capacitive touchscreens or resistive touch technology that ensures accurate and responsive input without the need to remove gloves. This functionality is crucial for industries such as manufacturing, logistics, and field services where safety and efficiency are paramount. FB Peripherals offers a range of rugged tablets that cater to this requirement, providing durable, reliable solutions for mission-critical applications in tough settings.

    The IP rating for rugged tablets indicates the device’s level of protection against solid particles and liquids, crucial for reliability in harsh environments. IP (Ingress Protection) ratings consist of two digits: the first denotes resistance to dust and solid objects, while the second indicates water resistance. For example, an IP65-rated rugged tablet is dust-tight and protected against water jets, making it suitable for mission-critical applications. Choosing an appropriate IP rating ensures durability and uninterrupted operation in demanding conditions. FB Peripherals offers a range of rugged tablets with various IP ratings, making them a trusted source for industrial-strength devices. Explore more at rugged tablets.
